CAT6 23AWG/4pair 550MHz Direct Burial Waterblocktape U/UTP
Hangzhou Risun Cable Co., Ltd.- Application:Local Communication Cable, LAN Cable, Network Cable
- Conductor Material:BC,CCS,CCA,TC,CU,CCAG
- Cover Material:PE
- Type:Cat 6
- Material Shape:Round Wire
- Conductor Type:Solid
Base Info
- Wire Core Material:Bare Copper Wire
- Certification:CE, ISO, RoHS, CCC, ETL,CPR
- Model:UTP CAT6 LAN Cable
- Brand:Risun or OEM
- Insulation:HDPE
- UV:Available
- Frame Returdant:Available
- Jelly:Available
- Transport Package:305m,Pull Box, 2box,Carton
- Origin:Hangzhou, Zhejiang, China
- HS Code:8544491100
- Production Capacity:20000 Boxes , Month
Description
Basic Info.
Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Model UTP CAT6 LAN Cable Brand Risun or OEM Insulation HDPE UV Available Frame Returdant Available Jelly Available Transport Package 305m/Pull Box, 2box/Carton Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / MonthProduct Description
UTP Twisted Pair Cat6 (UV Jelly FR available) Outdoor LAN Cableconstruction:
conductor | 23awg (solid or strand) cu/cca/ccs |
insulation | hdpe 1.04±0.02mm |
sheath | 6.2±0.1mm pvc (fr,rohs,uv)/ lsoh / pe |
cores/pairs | 8/4 |
mechanical properties:
elongation | min. 300% |
temperature range | -20 up to +75° c |
tensile strength | min 1.68kg/mm² |
electrical properties:
resistance | max. 9.38 ohm/100m |
resistance unbalance | max. 2% |
insulation resistance | 150 ohm/km |
mutual capacitance | max. 5600pf/100m |
capacitance unbalance | max. 330pf/100m |
impedance | 100+/-15 ohm |
spark test | 2000v |
velocity of propagation | 67% |

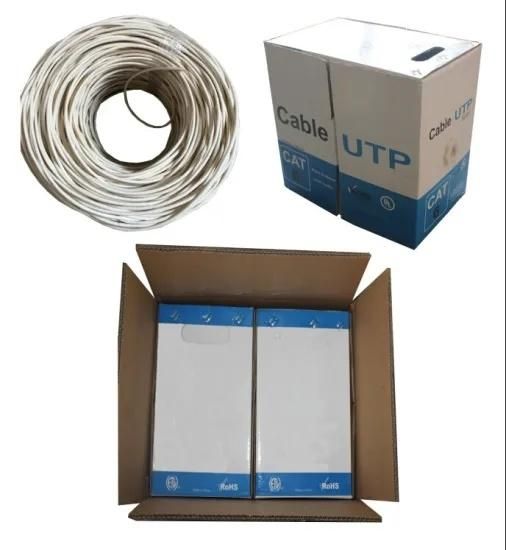

packing
1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.
company profileRisun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china. 95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.In the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
We are committed to providing you with high-quality and competitive products.We will be your trusted partner.
process of production:
Welcome to RISUN,we will be happy to serve you!
