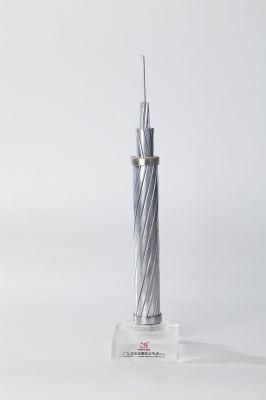

ACSR Factory ACSR Cable Aluminum Conductor Steel Reinforced
Guangdong Vango Cable Industry Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead Installation
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：ACSR
- Material Shape：Round Wire
- Range of Application：Overhead Installation
- Certification：ISO9001, ISO9001,ISO14001, CCC, Ce
- Brand：Gdyg
- Warranty：12 Months
- Transport Package：Wooden Reel, Steel Reel
- Specification：10-1500 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600 Tons Per Month
Description
DC resitanceAluminium Steel Total Aluminium Steel Aluminium Steel Core Conductor % mm2 mm2 mm2 mm mm mm mm kg/km kN W/km 16 17 16 2.67 18.7 6 1 1.84 1.84 1.84 5.53 64.6 6.08 1.7934 25 17 25 4.17 29.2 6 1 2.30 2.30 2.30 6.91 100.9 9.13 1.1478 40 17 40 6.67 46.7 6 1 2.91 2.91 2.91 8.74 161.5 14.40 0.7174 63 17 63 10.5 73.5 6 1 3.66 3.66 3.66 11.0 254.4 21.68 0.4555 100 17 100 16.7 117 6 1 4.61 4.61 4.61 13.8 403.8 34.33 0.2869 125 6 125 6.94 132 18 1 2.97 2.97 2.97 14.9 397.9 29.17 0.2304 125 16 125 20.4 145 26 7 2.47 1.92 5.77 15.7 503.9 45.69 0.2310 160 6 160 8.89 169 18 1 3.36 3.36 3.36 16.8 509.3 36.18 0.1800 160 16 160 26.1 186 26 7 2.80 2.18 6.53 17.7 644.9 57.69 0.1805 200 6 200 11.1 211 18 1 3.76 3.76 3.76 18.8 636.7 44.22 0.1440 200 16 200 32.6 233 26 7 3.13 2.43 7.30 19.8 806.2 70.13 0.1444 250 10 250 24.6 275 22 7 3.80 2.11 6.34 21.6 880.6 68.72 0.1154 250 16 250 40.7 291 26 7 3.50 2.72 6.16 22.2 1007.7 87.67 0.1155 315 7 315 21.8 337 45 7 2.99 1.99 5.97 23.9 1039.6 79.03 0.0917 315 16 315 51.3 366 26 7 3.93 3.05 9.16 24.9 1269.7 106.83 0.0917 400 7 400 27.7 428 45 7 3.36 2.24 6.73 26.9 1320.1 98.36 0.0722 400 13 400 51.9 452 54 7 3.07 3.07 9.21 27.6 1510.3 123.04 0.0723 450 7 450 31.1 481 45 7 3.57 2.38 7.14 28.5 1485.2 107.47 0.0642 450 13 450 58.3 508 54 7 3.26 3.26 9.77 29.3 1699.1 138.42 0.0643 500 7 500 34.6 535 45 7 3.76 2.51 7.52 30.1 1650.2 119.41 0.0578 500 13 500 64.8 565 54 7 3.43 3.43 10.30 30.9 1887.9 153.80 0.0578 560 7 560 38.7 599 45 7 3.98 2.65 7.96 31.6 1848.2 133.74 0.0516 560 13 560 70.9 631 54 19 3.63 2.18 10.90 32.7 2103.4 172.59 0.0516 630 7 630 43.6 674 45 7 4.22 2.81 8.44 33.8 2079.2 150.45 0.0459 630 13 630 79.8 710 54 19 3.85 2.31 11.60 34.7 2366.3 191.77 0.0459 710 7 710 40.1 759 45 7 4.48 2.99 8.96 35.9 2343.2 169.56 0.0407 710 13 710 89.9 800 54 19 4.09 2.45 12.30 36.8 2666.8 216.12 0.0407 800 4 800 34.6 835 72 7 3.76 2.51 7.52 37.6 2480.2 167.41 0.0361 800 8 800 66.7 867 84 7 3.48 3.48 10.40 38.3 2732.7 205.33 0.0362 800 13 800 101.0 901 54 19 4.34 2.61 13.00 39.1 3004.9 243.52 0.0362 900 4 900 38.9 939 72 7 3.99 2.66 7.98 39.9 2790.2 188.33 0.0321 900 8 900 75.0 975 84 7 3.69 3.69 11.10 40.6 3074.2 226.50 0.0322 1000 4 1000 43.2 1043 72 7 4.21 2.80 8.41 42.1 3100.3 209.26 0.0289 1120 4 1120 47.3 1167 72 19 4.45 1.78 8.90 44.5 3464.9 234.53 0.0258 1120 8 1120 91.2 1211 84 19 4.12 2.47 12.40 45.3 3811.5 283.17 0.0258 1250 8 1250 102.0 1352 84 19 4.35 2.61 13.10 47.9 4253.9 316.04 0.0232 1250 4 1250 52.8 1303 72 19 4.70 1.88 9.40 47.0 3867.1 261.75 0.0231
