• Model NO.：RVFV & VVFV , RVFV-K & VVFV-K
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, SGS
• Model：U-1000 Rvfv
• Brand：Hongda
• Standard：Une 21123-2, IEC 60502, En 60332-1, IEC 60332-1
• Rated Voltage：600,1000 Volts
• Armored：Steel Tape Armor
• Suitable for：Direct Burial Without Extra Mechanical Protection
• Flame Retardant：IEC 60332.1
• Transport Package：Drum or as Customer Require
• Specification：1.5mm2 to 400mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：5km,Day

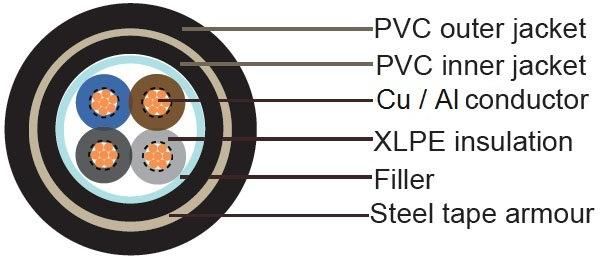

Conductor:: rigid red copper / Aluminum wire, class  1 (Φ ≤ 4 mm²)
  stranded circular compacted copper / Aluminum class 2 (Φ>4mm²)Insulation: XLPE crosslinked polyethylene (no dry cool)Outer sheath: PVCScreen: noDrain wire: noLead sheath: noConcentric cond.: noneInsulation integrity: noCircuit integrity: noArmouring: Steel Tape Armoured / Aluminum Tape Armoured U-1000 RVFV & VVFV / RVFV-K & VVFV-K Cable - Technical data and testsStandards: NF C 32-322Nominal voltage U0/U: 0,6/1 kVTest voltage (50 Hz): 4 kVMaximun voltage Um: 1,2 kVMaximun operating temperature: +90° CMaximun short circuit temperature: +250° CMin. operating temperature
(without mechanical shocks): -25° CMinimum installation and use temp.: -10° CMinimum bending radius per
D cable diameter (in mm): 6 x DCore colourssingle core : black
two cores : blue-brown
three  cores : brown-black-blue  (1,5/2,5 mmq); brown-black-gray (4 mmq)  or Y/G-blue-brown)
four cores : blue-brown-black-gray (or Y/G instead blue)
five cores : blue-brown-black-gray-Y/G (or black instead Y/G)Sheath colour: black

Cable Parameter

AWGNO. OF CORES X NOMINAL CROSS SECTIONAL AREA
# X MM²NOMINAL OVERALL DIAMETER
MMNOMINAL WEIGHT
KG/KMAWGNO. OF CORES X NOMINAL CROSS SECTIONAL AREA
# X MM²NOMINAL OVERALL DIAMETER
MMNOMINAL WEIGHT
KG/KM61×1614.43453/03×95/5041.3461341×25164774/03×120/7046.96,02321×3517.3582300MCM3×150/7054.7745511×5018.5722350MCM3×185/9555.188902/01×7020.7962500MCM3×240/12062.5110553/01×9522.11173164×1.513.22754/01×12024.61522144×2.514.4339300MCM1×15026.51821124×415.1419350MCM1×18528.52230104×617.3545500MCM1×24031.72,3584×1019.8770162×1.512.322764×1622.31062142×2.512.825944×2526.51602122×413.6311165×1.514.4320102×615.8411145×2.515.339082×1017.8552125×417.250962×1619.6726105×618.8640163×1.512.825285×1021.3909143×2.513.329365×1625.21304123×414.5367166×1.515.8394103×616.3468167×1.515.841283×1018.36411610×1.517.852163×1620.48701612×1.519.260363×16/1021.59961616×1.520.871443×25/1625.114681619×1.521.879223×35/1627.918541624×1.523.391413×50/2529.621011627×1.525.410152/03×70/3537.83683
