UL Electrical Hook up PVC Insulated Flexible Heating Wire Cable 26~4AWG
Wuhan Elite Industry Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Heating
- Conductor Material：Pure Nickel or Copper Alloy
- Sheath Material：, Fiberglass
- Insulation Material：Silicone Rubber
Base Info
- Model NO.：26~4AWG
- Material Shape：Round Wire
- Range of Application：Industrial
- Certification：ISO9001, CE, UL
- Brand：No Brand
- Colour：Black,White,Red,etc
- Package：100,200,305,610m Per Roll
- Conductor：Copper or Pure Nickel
- ISO：Yes
- Lead Time：10-15 Working Days
- Transport Package：in Roll, Spool+Carton
- Specification：AWG 24, 22, 20, 18, 16, 14, 12
- Trademark：no
- Origin：China
- HS Code：8544491900
- Production Capacity：10, 0000 Meters
Description
Conductor
Insulation(mm )
Max. Conductor Resistance
(at 20ºC)(Ω/km)
Size
(AWG)
Conductor Structure
(No./mm)
Nominal Thickness
Min
Thickness
Nominal
Diameter
26
7/0.16
0.38
0.33
1.3 ±0.1
150
24
11/0.16
1.4±0.1
94.2
22
17/0.16
1.6±0.1
59.4
20
21/0.18
1.8±0.1
36.7
18
16/0.254
2.0±0.1
23.2
16
26/0.254
2.4±0.1
14.6
Application
Used for internal wiring of
household ovens,
appliances,
lighting fixtures
and electronic equipment
as high-temperature lead wire.

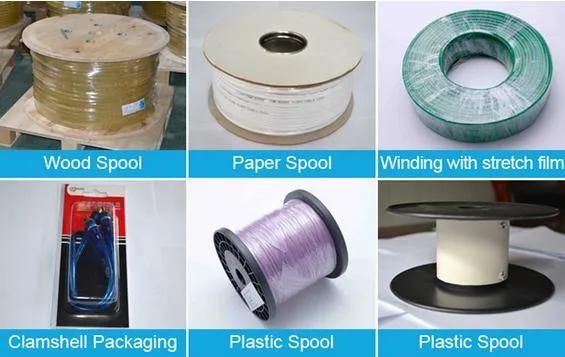

3. Packing Methods

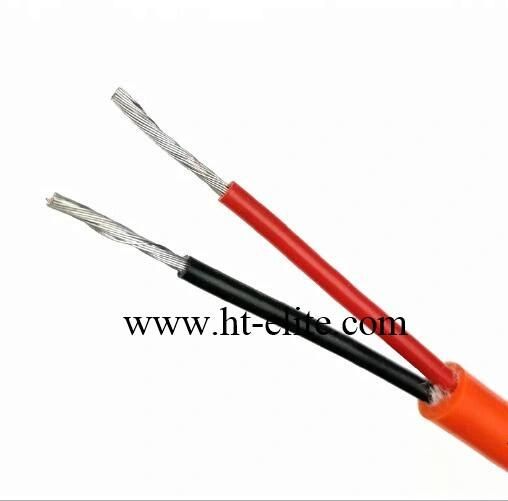

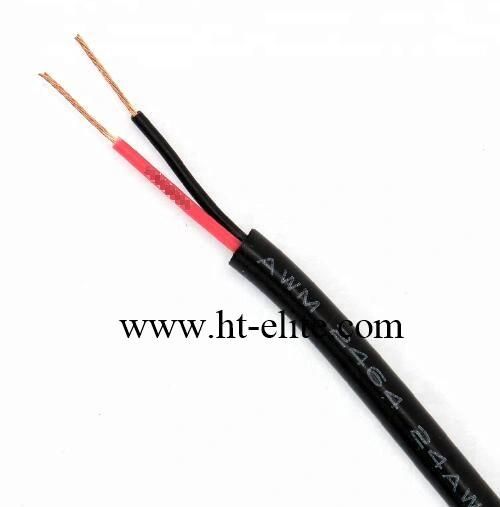

5. Photos for Reference
