• Model NO.：electric wire
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC
• Brand：Hongda
• Transport Package：Roll
• Specification：CE, ISO, CCC, SGS
• Trademark：Hongda
• Origin：Henan, China
• HS Code：8544492900
• Production Capacity：5000000m,Month

AWGNo. of Cores x
Nominal Cross Sectional Area
# x mm²Nominal
Overall DiameterNominal
Copper Weight kg/KmNominal Weight
kg/Km16(30/30)1 x 1.53.114.42014(50/30)1 x 2.53.6243112(56/28)1 x 44.3384810(84/28)1 x 64.958698(80/26)1 x 106.4961216(128/26)1 x 168.11542114 (200/26)1 x 259.82403032 (280/26)1 x 3511.13364171 (400/26)1 x 5013.14805392/0 (356/24)1 x 7015.56727303/0 (485/24)1 x 9517.29129004/0 (614/24)1 x 12019.711521135300 MCM (765/24)1 x 15021.314401410350 MCM (944/24)1 x 18523.417761845500MCM(1225/24)1 x 24027.123042270

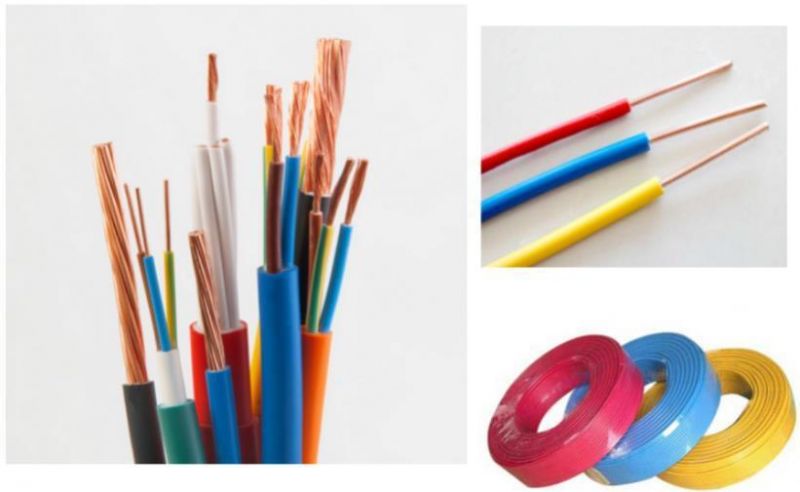

Polyvinyl chloride insulated cables and cords of rated voltages up to and including 450/750V

Application

Wiring for electrical appliances, smaller size electric tools, instruments of various meters, and motorized lighting system.



Standard

IEC 60227,IEC 60228,IEC 60332,GB/T 5023,BS 6500,BS 6004,VDE 0281,0282 , EN 50525-1, AS/NZS 5000.2  etc.

*Hongda Cable can also design and produce for special application requirement.

Type and description

Serial
number

Type

Description

1

60227 IEC 01(BV)    (H07V-U or H07V-R)

Single core solid or stranded conductor unsheathed cable
for general purposes

2

60227 IEC 02(RV)   (H07V-K)

Single core flexible conductor unsheathed cable
 for general purposes

3

60227 IEC 05(BV)    (H05V-U or H05V-R)

Single core 70ºC solid or stranded conductor unsheathed cable
 for internal wiring

4

60227 IEC 06(RV)   (H05V-K)

Single core 70ºC flexible conductor unsheathed cable
 for internal wiring

5

60227 IEC 07(BV-90)  (H07V2-U or H07V2-R)

Single core 90ºC solid conductor unsheathed cable
for internal wiring

6

60227 IEC 08(RV-90) (H07V2-K)

Single core 90ºC flexible conductor unsheathed cable
 for internal wiring

7

60227 IEC 10(BVV)      (NYY or NYM)

Light PVC sheathed cable

8

60227 IEC 42(RVB)

Flat unsheathed flexible wire

9

60227 IEC 52(RVV)  (H03VV-F,H03VV2-F)

Light PVC sheathed flexible wire

10

60227 IEC 53(RVV)  (H05VV-F,H05VV2-F)

Common PVC sheathed flexible wire

11

BV (H07V-U or H07V-R)

Copper conductor PVC insulated wire

12

BLV

Aluminum conductor PVC insulated wire

13

BVR

Copper conductor PVC insulated flexible cable

14

BVV (NYY or NYM)

Copper conductor PVC insulated sheathed
 circular cable

15

BLVV

Aluminum conductor PVC insulated and sheathed round cable

16

BVVB (H05VVH2-F)

Copper conductor PVC insulated and sheathed flat cable

17

BLVVB

Aluminum conductor PVC insulated sheathed flat cable

18

NMD-90

Copper conductor PVC/Nylon Insulated PVC Jacked flat cable

19

RVS

Twisted copper conductor PVC insulated flexible cable for conection

20

AVP

Copper conductor PVC insulated wire with shied for installation

21

RVP

Copper conductor PVC insulated flexible wire with shield

22

RVVP

Copper conductor PVC insulated, shielded,
PVC sheathed flexible cable



NOTE:1)  Cores number series ar,1,2 ,3,4and 5.

       2)  HONGDA CABLE can produce "Flame-Retardant Series", "Fire-Resistant Series", "Low Smoke Halogen Free (LSHF/LSOH) Series", "Low Smoke Low Halogen (LSLH) Series", etc.

Performance in line with IEC60332,IEC 61034,IEC60754 requirements.

Packing:

Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
