Liycy Cy Flexible Multi-Core Power Transmission Control Signal Cables

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead, Underground
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：Li2YCY,Li2YCY-CY
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, CCC, RoHS, VDE
  • Brand：Feiya
  • Color：Black Red Yellow, According to Voltage Level
  • Whether It Is Environmentally Friendly：Yes
  • Whether Quality Inspection：Provide Inspection Certificate
  • Standard：Customized According to Specified National Standar
  • OEM/ODM：Accepted
  • Core：Single Core and Multicore
  • Transport Package：Standard Export Packaging
  • Specification：International General Specifications
  • Trademark：Fengda
  • Origin：Tianjin, China(Mainland)
  • HS Code：8544492100
  • Production Capacity：100000,Day

Description

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available. Liycy Cy Flexible Multi-Core Power Transmission Control Signal Cables

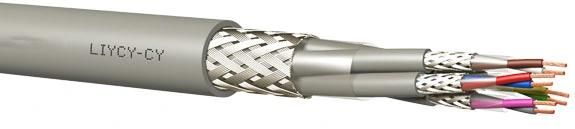

Cable Construction

  • ConductorStranded Annealed Copper (IEC/EN 60228, Class 5, 0.34 mm²: Class 2)
  • InsulationPVC (EN 50290-2-21)
  • Core ColorsDIN 47100
  • SeparatorPET Foil
  • 1. ScreenTinned Copper Wire Braid (50% Coverage)*
  • Inner SheathPVC (EN 50290-2-22)
  • Lay-upAll the sheathed cores /pairs stranded in layers
  • SeparatorPET Foil
  • 2. ScreenTinned Copper Wire Braid (50% Coverage)
  • Outer SheathPVC (EN 50290-2-22), RAL 7001 - Grey
  • Reference StandardsVDE 0812, TS 13755



Application
These individual and overall screened cables which are not affected by outer signals and parasites are used as signal transmission cables in industrial applications. These used in electronic control systems of computer or audio systems or the communication sector, electronic circuits, measurement devices, machine design, office equipment, etc. Although each core/pair has double screening, These can easily be used in flexible and narrow applications.

Technical characteristics

rdering codeNo. of cores×Cores cross-section[mm2]Approx. outer ø [mm]Copper weight [kg/km]Approx. cable weight [kg/km]
02210652×2 × 0,148,331,095
02210663×2 × 0,149,234,0105
02210674×2 × 0,1410,245,0140
02210685×2 × 0,1411,158,0160
02210696×2 × 0,1412,367,0185
02210707×2 × 0,1413,378,0230
02210718×2 × 0,1414,697,0245
02210729×2 × 0,1415,8101,0280
022107310×2 × 0,1416,0108,0325
022107412×2 × 0,1417,6134,0380
022107516×2 × 0,1418,6179,0440
022107620×2 × 0,1421,0225,0520
02210772×2 × 0,259,562,0125
02210783×2 × 0,2510,078,2140
02210794×2 × 0,2511,2124,1205
02210805×2 × 0,2512,0137,6230
02210816×2 × 0,2513,5148,1275
02210827×2 × 0,2514,3159,1295
02210838×2 × 0,2515,5178,7330
022108410×2 × 0,2517,2213,9420
022108512×2 × 0,2518,5238,3465
022108616×2 × 0,2522,0291,4590
022108720×2 × 0,2522,0325,0620
022108824×2 × 0,2527,5367,5690
022108932×2 × 0,2530,4588,0785
022109048×2 × 0,2535,9840,5970
02210912×2 × 0,3411,273,1139
02210923×2 × 0,3412,588,1157
02210934×2 × 0,3414,3137,2213
02210946×2 × 0,3416,5174,8308
02210958×2 × 0,3418,7247,2385
022109610×2 × 0,3419,5288,7433
022109712×2 × 0,3420,3321,0495
022109814×2 × 0,3421,5388,4600
022109916×2 × 0,3422,6425,5637
022110024×2 × 0,3428,6577,1781
02211012×2 × 0,5012,383,1143
02211023×2 × 0,5012,8106,4179
02211034×2 × 0,5016,8158,0241
02211046×2 × 0,5017,1201,4319
02211058×2 × 0,5019,6311,5441
022110610×2 × 0,5021,9334,5464
022110712×2 × 0,5022,8394,1529
022110814×2 × 0,5024,1446,0641
022110916×2 × 0,5025,5501,2694
022111024×2 × 0,5032,1712,4930
