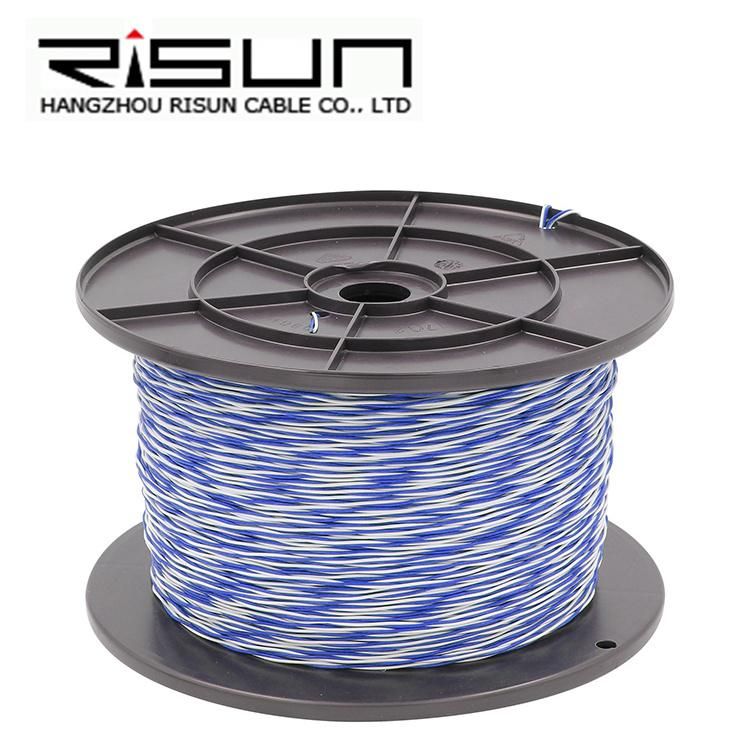

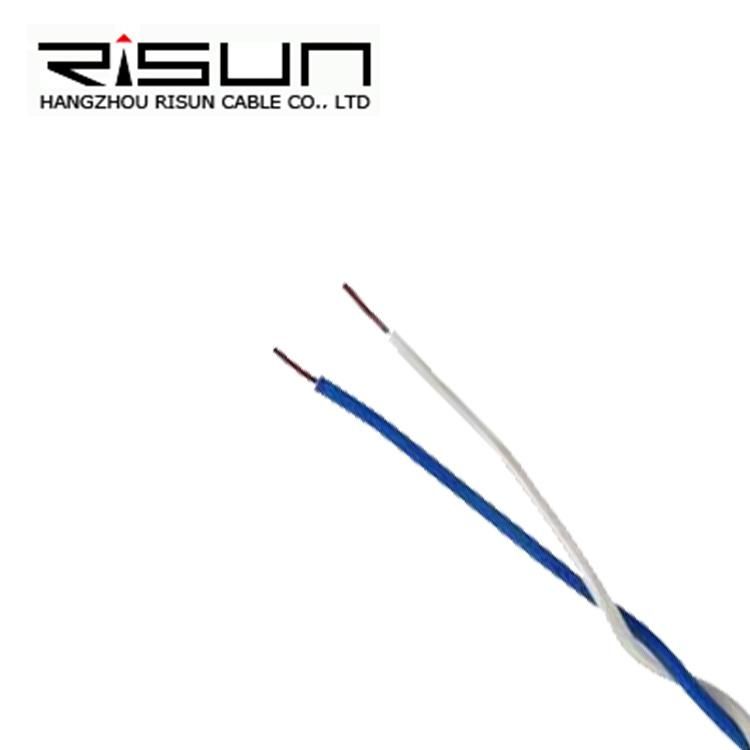

Cross Connect Telephone Wire Cable - 24/2 2c 24 AWG 1 Pair Blue/White - 1000 FT
Hangzhou Risun Cable Co., Ltd.- Application:Local Communication Cable, LAN Cable
- Conductor Material:Copper
- Cover Material:PVC
- Type:Bus Cable
- Material Shape:Round Wire
- Conductor Type:Stranded
Base Info
- Model NO.:jumper wire
- Wire Core Material:Bare Copper Wire
- Certification:CE, ISO, RoHS
- Color:Blue , White
- Inner Conductor:0.50mmcu
- Nom. Thick:1.02mm PVC
- Export Length:100m,Roll, 305m,Drum
- Pairs:1 Pairs
- Transport Package:Carton Box, Pallet
- Specification:Telephone Jumper Wire 2X0, 50mm
- Trademark:Risun
- Origin:Zhejiang, China
- HS Code:8544491100
- Production Capacity:30000boxes,Month
Description
Nominal Conductor Diameter
mm
0.32
0.4
0.5
0.6
0.8
1.0
7/0.2
Conductor Size
mm2
0.08
0.126
0.196
0.283
0.5
0.785
0.22
Maximum Conductor Resistance @20°C
/km
234
148
95
65.9
36.7
23.3
89.9
Minimum Insulation Resistance @500V DC
MΩ.km
50
50
50
50
50
50
50
Minimum Insulation Thickness
mm
0.12
0.15
0.15
0.15
0.25
0.25
0.15
Maximum Insulated Conductor Diameter
mm
0.7
0.85
0.95
1.05
1.5
1.7
1.05
CW 1257
Nominal Conductor Diameter
mm
0.4
0.5
0.6
Conductor Size
mm2
0.126
0.196
0.283
Maximum Conductor Resistance @20°C
Ω/km
153
98
68.9
Minimum Insulation Resistance @500V DC
MΩ.km
50
50
50
Minimum Insulation Thickness
mm
0.25
0.25
0.25
Maximum Insulated Conductor Diameter
mm
1.0
1.10
1.20
CW 1423
Nominal Conductor Diameter
mm
0.5
Conductor Size
mm2
0.196
Maximum Conductor Resistance @20°C
Ω/km
98
Minimum Insulation Resistance @500V DC
MΩ.km
50
Minimum Insulation Thickness
mm
0.25
Maximum Insulated Conductor Diameter
mm
1.10
Application:
Company Introduction
Packing:

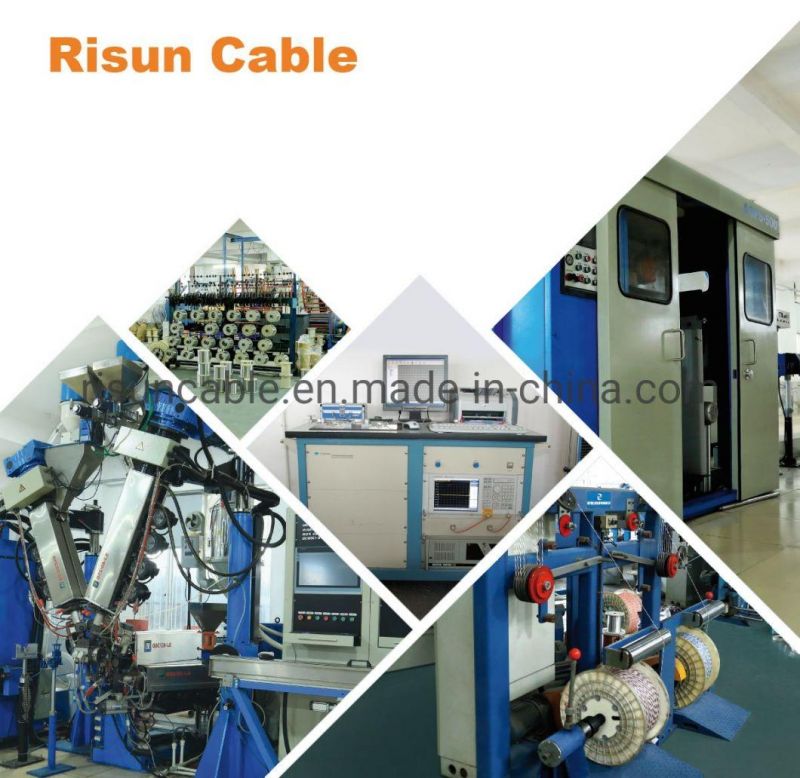

Production line:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
