• Model NO.：UL5335
• Material Shape：Round Wire
• Range of Application：Heating Environment, Oven, Equipments.
• Certification：ISO9001, UL, CCC
• Brand：Fongming
• Name：Heating Element Use Electric Wire
• Ratings：300V, 450deg.C
• Color：as Requirements
• Size：24AWG~8AWG
• Test：Electric Spark Testing
• Test Voltage：2500V
• Certification No：E315207
• Other Type：UL5128 300V
• Jacket：Fiberglass Braid with High Temperature
• Transport Package：100m, 200m or 305m Per Roll. Carton Packing.
• Specification：24awg~8awg
• Trademark：FONGMING
• Origin：Yangzhou, Jiangsu Province, China.
• HS Code：8544492100
• Production Capacity：100000000m Per Year

Basic Info.

Model NO. UL5335 Material Shape Round Wire Range of Application Heating Environment, Oven, Equipments. Certification ISO9001, UL, CCC Brand Fongming Name Heating Element Use Electric Wire Ratings 300V, 450deg.C Color as Requirements Size 24AWG~8AWG Test Electric Spark Testing Test Voltage 2500V Certification No E315207 Other Type UL5128 300V Jacket Fiberglass Braid with High Temperature Transport Package 100m, 200m or 305m Per Roll. Carton Packing. Specification 24awg~8awg Trademark FONGMING Origin Yangzhou, Jiangsu Province, China. HS Code 8544492100 Production Capacity 100000000m Per Year

Product Description

UL5335  Mica Fiberglass Braided Heat Resistance Heating Element Use Electric Wire

Description
UL5335 12awg 10awg 6awg 4awg heat resistant electric wire
RATINGS/ APPROVALS
450c 600V UL5335

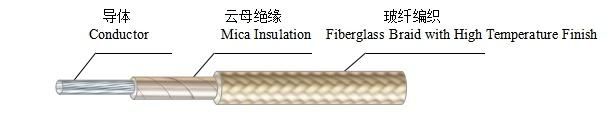

CONSTRUCTION
Conductors:22AWG-8AWG
Stranded Nickel plated copper-27% or pure nickel
Insulating system:Mica glasss composite
Outer covering:Fiber glass braid with high temperature with finish
Color:Natural and solid colors

CHARACTERISTICS
Unique insulation system offers outstanding heat-aged flexibility for longer service life.
Excellent cutting and stripping characteristics, making it ideal for high volume manufacturing and assembly.
Resists braid pushback.
Suitable for applications to -60C

APPLICATIONS
22awg mica fire resistant cable wire  alibaba china supplier
Be popularly used to high temperature conditions in Electron, Home Appliance, Lamp, Appliance, etc.
We have got UL, ISO9001 Certifications.



Specification

Size AWG	Conductor Structure	Insulation Thickness (mm)	Braid Thickness (mm)	Diameter (mm)
22	7/0.254	≥0.43	≥0.13	1.9±0.2
20	10/0.254			2.1±0.2
18	16/0.254			2.3±0.2
16	26/0.254			2.7±0.2
14	41/0.254			3.1±0.2
12	65/0.254			3.6±0.2
10	103/0.254	≥0.50	≥0.254	4.7±0.2
8	163/0.254			6.1±0.2

Certificates


Transport & Payment



Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.


Company Information



Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producinguniversal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.

We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.

Factory Size (Sq.meters):	45,000-50,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	20
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

 Hot Sale



FAQ

 1. Why the price is so low?

You are ordering directly from the factory.



2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.



3.Can I get some samples?
Yes, we are honored to offer you samples.



4. Can you make the products with my design?

Yes. customization is welcome .
