Bare Stranded All Aluminum AAC Aster Conductor with ASTM B231 Standard
Luoyang Sanwu Cable Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：DAYUAN-11
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CE, CCC
- Brand：Dayuan
- Transport Package：All The Drum We Using Is Fumigation Wooden Tray
- Specification：we can make as customer requirement
- Trademark：DAYUAN
- Origin：China
- HS Code：76149000
- Production Capacity：10000 Meters,Day
Description
CodeSize Section No. of Strands Diameter Strands Weight Rated Strength Maximunm Resistance @20°C AWG o MCM in² mm mm kg/km kg Ω/km Peachbell 6 13.3 7×1.56 4.66 36.6 254 2.170 Rose 4 21.15 7×1.96 5.88 58.3 399 1.364 Iris 2 33.62 7×2.47 7.42 92.7 611 0.857 Pansy 1 42.41 7×2.78 8.33 117 740 0.681 Poppy 1/0 53.51 7×3.12 9.36 147.5 897 0.539 Aster 2/0 67.44 7×3.50 10.51 186 1136 0.427 Phlox 3/0 85.02 7×3.93 11.8 235 1375 0.339 Oxlip 4/0 107 7×4.42 13.25 296 1738 0.268 Daisy 266.8 135 7×4.96 14.88 373 2191 0.213 Laurel 266.8 135 19×3.01 15.05 373 2254 0.213 Tulip 336.4 171 19×3.38 16.9 470 2786 0.169 Canna 397.5 201 19×3.68 18.38 555 3219 0.143 Cosmos 477 242 19×4.02 20.12 666 3803 0.119 Syringa 477 242 37×2.88 20.18 666 3932 0.119 Dahlia 556.5 282 19×4.35 21.73 777 4431 0.102 Mistletoe 556.5 282 37×3.11 21.8 777 4495 0.102 Orchid 636 322 37×3.33 23.31 888 5154 0.089 Violet 715.5 363 37×3.53 24.73 1000 5791 0.079 Nasturtium 715.5 363 61×2.75 24.76 1000 5960 0.079 Arbutus 795 403 37×3.72 26.07 1110 6303 0.071 Lilac 795 403 61×2.90 26.11 1110 6501 0.071 Anemone 874.5 443 37×3.91 27.37 1222 6821 0.065 Crocus 874.5 443 61×3.04 27.36 1222 7144 0.065 Magnolia 954 483 37×4.08 28.55 1333 7428 0.059
Relation Products
Company Information:
Luoyang Da Yuan Cable Factory Co., Ltd.is a professional leading manufacturer in the field of wires and cables, was established in 2006 of China. We have been specialized in producing wires and cables for several years which can be applied in many areas, our main products are power cable, solar cable, and overhead line cable like ACSR, AAC, ABC cable, control cable, transformer, and aluminum wire rod. We have advanced automatic production lines. Besides, we can provide the raw material of aluminum cable as well, thus our price is very competitive and reasonable.

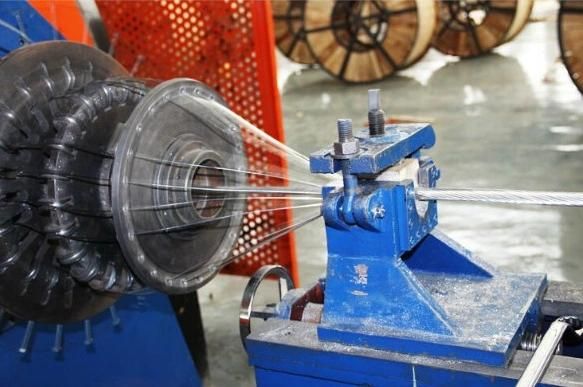

Workshop for AAC Conductor

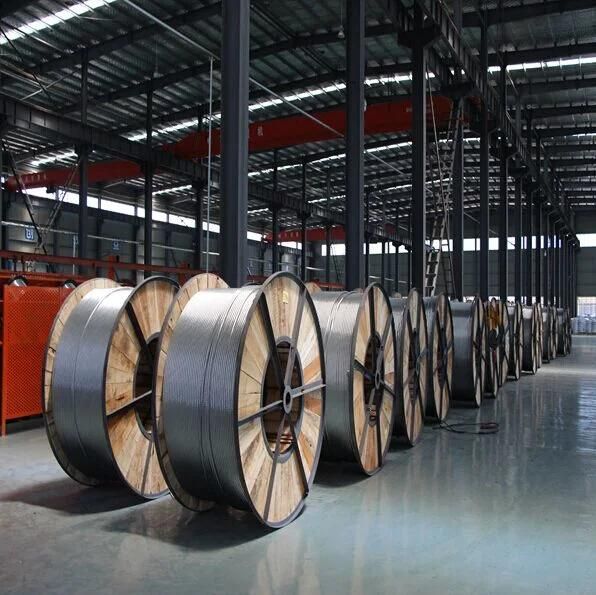

Packing & Delivery for AAC Conductor
Contact us:
Max Shang (Sales Manager)
Luoyang Da Yuan Cable Factory Co., Ltd.
Tel: +86-0379-69991591
Mobile: +86-13803889574 Welcome you come Luoyang and visit our factory!
Relation Products
Company Information:
Luoyang Da Yuan Cable Factory Co., Ltd.is a professional leading manufacturer in the field of wires and cables, was established in 2006 of China. We have been specialized in producing wires and cables for several years which can be applied in many areas, our main products are power cable, solar cable, and overhead line cable like ACSR, AAC, ABC cable, control cable, transformer, and aluminum wire rod. We have advanced automatic production lines. Besides, we can provide the raw material of aluminum cable as well, thus our price is very competitive and reasonable.
Workshop for AAC Conductor
Packing & Delivery for AAC Conductor
| Packaging Details: | Drum size:0.7*0.7*0.7m 72 drums/20 Fcl 25ton/20 fcl Drum size:1.1*1.1*0.8m 28 drums/20 Fcl 25ton/20 fcl Drum size:1.8*1.8*1.1m 6 drums/20 Fcl 25ton/20 fcl Drum size:2.2*2.2*1.1m 5 drums/20 Fcl 25ton/20 fcl All the drum we using is Fumigation wooden tray, we can aslo make as customer requirement! |
| Delivery Detail: | Within 10 working days after payment or depend on the quantity |
