Sat 602 Coax Cable 75 Ohm CATV Coaxial Cable
Hangzhou Spring Electronics Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：RG6 Cable
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：SAT602
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Brand：OEM
- Cable Conductor：1.02mm
- Transport Package：Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
- Trademark：FUU
- Origin：Made in China
- HS Code：8544200000
- Production Capacity：3000km,Month
Description
Construction Parameters:
Inner Conductor
1.00mm Copper
Dielectric
4.30mm±0.10 Foamed PE
Shield 1
Aluminum PET
Shield 2
CuSn braid wire 40% coverage
Jacket
6.60±0.10mm PVC
Application
For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance
The Max. at 20ºC shall be < 21.9 Ω/km
Capacitance
54 ±3 pF/m
Impedance
75 ± 3 Ω
Return loss
between 5 and 1000MHz: > 22dB
Velocity of Propagation
0.85
Sparker Test (VAC)
4
Mechanical and Envrionmental Properties
Cable bend radius
10 times the cable diameter
Operating Temp Range
-20 ºC to 60ºC
Cable diamensions
6.6±0.15mm PVC

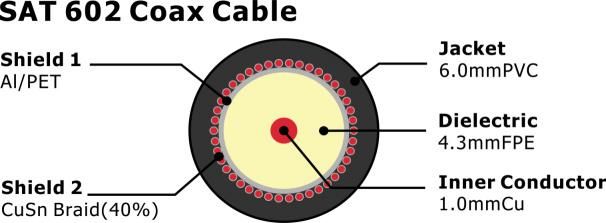

Cross Section
Attenuation(20ºC):
Frequency (MHZ)
Max Attenuation(dB/100ft)
Max Attenuation (dB/100m)
5
1.80
10
2.30
30
3.60
50
4.60
200
8.90
300
11.00
470
13.90
862
19.10
1000
20.60
1750
27.80
2150
31.00
2400
32.90
3000
37.10
Order Informations:
Marking
SAT 602 Coax Cable CATV COAXIAL CABLE ×××MT
Package
Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time
Normally 25 days after received the deposit.
