Rhh/Rhw-2 Single Al Conductor 2000V Power Cable
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Flexible
- Application：Heating, Underground, Indoor Lighting
- Conductor Material：Stranded Compacted Aluminum(AA-8000 Series)
- Sheath Material：No
- Insulation Material：Flame-Retardant Cross-Linked Polyethylene (XLPE)
Base Info
- Model NO.：RHH,RHW-2
- Material Shape：Round
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, CCC
- Brand：Yifang
- Standard：Icea S-95-685,NEMA Wc70
- Transport Package：Treated Wooden Drums
- Specification：8AWG TO 1000MCM
- Trademark：YIFANG
- Origin：China
- HS Code：8544492100
- Production Capacity：10000m Per Week
Description
Basic Info.
Model NO. RHH/RHW-2 Material Shape Round Range of Application Flame Retardant Certification ISO9001, CE, CCC Brand Yifang Standard Icea S-95-685/NEMA Wc70 Transport Package Treated Wooden Drums Specification 8AWG TO 1000MCM Trademark YIFANG Origin China HS Code 8544492100 Production Capacity 10000m Per WeekProduct Description
RHH/RHW-2 Single AL Conductor 2000V Power Cable
Application
Type RHH, RHW-2 copper wire is for use from the lower control box at the base of the wind power tower and out to the step-up transformer through conduit, and industrial environments where superior insulation toughness and chemical resistance is required. The maximum operating temperature not to exceed 90°C in wet or dry locations.
Compliances
- National Electric Code (NEC)
- UL 44 Stranded for rubber-insulated wires and cables
- ICEA S-95-685/NEMA WC70
- UL listed as Type RHH/RHW-2
- OSHA acceptable

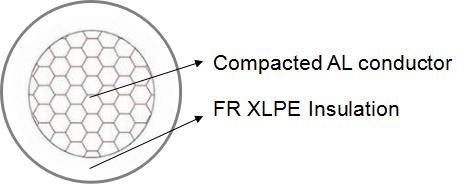

Construction
| Conductor | Stranded compacted aluminum(AA-8000 series) |
|---|---|
| Insulation | Flame-retardant Cross-Linked Polyethylene (XLPE) |
| Color | Upon request, black is preferable |
