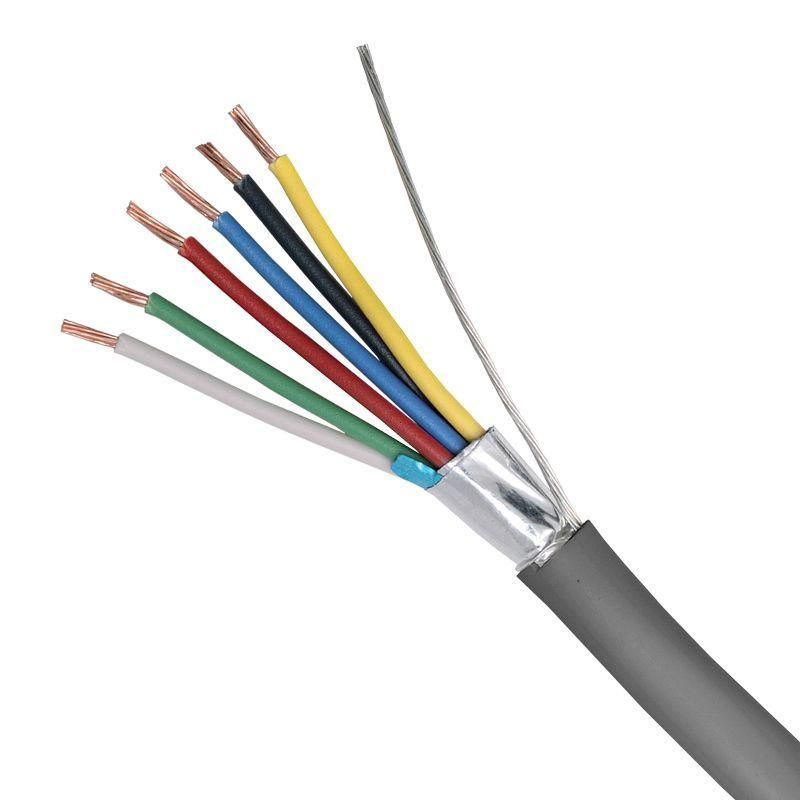

6 Core 7 Strand 6X7/0.20 Screened Cable
Hangzhou Risun Cable Co., Ltd.- Application:Local Communication Cable, LAN Cable, Control Cable
- Conductor Material:Copper
- Cover Material:PVC
- Material Shape:Round Wire
- Conductor Type:Stranded
- Wire Core Material:Tinned Wire
Base Info
- Certification:CE, ISO, RoHS, CCC, ETL,CPR
- Brand:Risun or OEM
- Insulation:PVC,HDPE
- Conductor:7,0.2mm Cu
- Screen:Polyester Tape,Al Foil
- Sheath:PVC
- Transport Package:100m,Reel
- Origin:Hangzhou, Zhejiang, China
- HS Code:8544491100
- Production Capacity:20000 Boxes , Month
Description
Basic Info.
Certification CE, ISO, RoHS, CCC, ETL,CPR Brand Risun or OEM Insulation PVC/HDPE Conductor 7/0.2mm Cu Screen Polyester Tape/Al Foil Sheath PVC Transport Package 100m/Reel Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / MonthProduct Description
Product Descriptionconstruction:
conductor | 24awg (7/0.20mm) CU |
insulation | 1.2±0.02mm |
Drain Wire | 7/0.20mm CU |
Screen | Al. Polyester Tape |
sheath | PVC |
cores | 6 |
Mechanical Properties:
Operating Temp Range | -15 to 70°C |
Max. Recommended Pulling Tension | 92N |
Min Bend Radius (Install) | 55mm |
Application
For use in the communications, industrial and security sectors, This product can be used to interconnect DTE equipment such as Printers, fax's, modems, and consoles. In the industrial environment, this product can be used to connect instruments and sensors to data loggers, PLC's and other control equipment. In the security market, this product can be used to connect motion sensors, entry sensors, card readers and door strikes to monitoring units. Not suitable for direct connection to mains equipment.

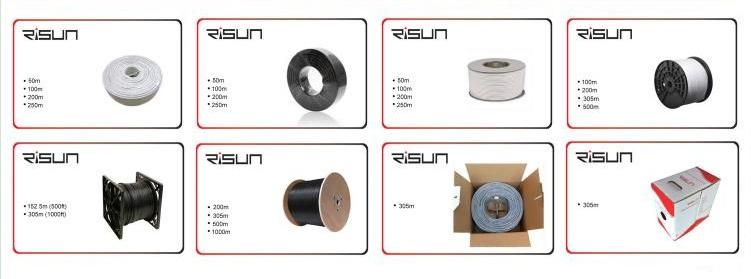

Packing
1) packing lengths:100m/Plastic Reel,305m/Pull Box, 500m/Wooden Reel, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.

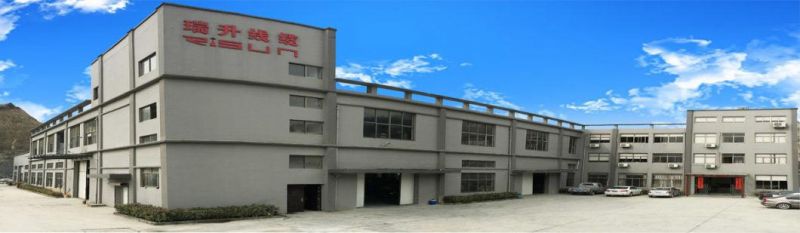

Company Profile
Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china. 95% of our goods for the export market. 14 years of experience in this field makes us very familiar with export handling.In the past 14 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
We are committed to providing you with high-quality and competitive products.We will be your trusted partner.
process of production:
Welcome to RISUN,we will be happy to serve you!
