200deg. C High Temperature Copper Silicone Insulated Fiberglass Braiding Lead Wire
Yangzhou Fongming Cable Factory- Type：Insulated
- Conductor Type：Stranded
- Application：Heating
- Conductor Material：Tinned Copper
- Sheath Material：Silicone
- Insulation Material：Silicone Rubber
Base Info
- Model NO.：UL3071 silicone braid wire
- Material Shape：Round Wire
- Range of Application：High Temperature Element
- Certification：ISO9001, UL, CCC, RoHS, SGS CTI
- Brand：Fongming
- Name：200deg.C High Temperature Silicone Insulated Fiber
- Voltage：600V
- Temperature Range：-60deg.C-200deg.C
- Color：Red White Blue Black Wire
- Sample：3-8meters Free
- MOQ：1000m
- Lead Time：5-7 Days
- Customize：Available
- Standard：UL758 UL1581
- UL File No.：E315207
- Manufacturer：Yangzhou Fongming Cable Factory
- Country of Origin：Yangzhou, China
- Application1：Electrical Heating Wiring
- Application2：Home Appliance Wiring
- Keyword2：High Temperature Wire
- Transport Package：Cartons and Pallet
- Specification：AS CUSTOMER REQUIREMENT
- Trademark：FONGMING
- Origin：Yangzhou China
- HS Code：8544492100
- Production Capacity：100000000meters Per Month
Description
Basic Info.
Model NO. UL3071 silicone braid wire Material Shape Round Wire Range of Application High Temperature Element Certification ISO9001, UL, CCC, RoHS, SGS CTI Brand Fongming Name 200deg.C High Temperature Silicone Insulated Fiber Voltage 600V Temperature Range -60deg.C-200deg.C Color Red White Blue Black Wire Sample 3-8meters Free MOQ 1000m Lead Time 5-7 Days Customize Available Standard UL758 UL1581 UL File No. E315207 Manufacturer Yangzhou Fongming Cable Factory Country of Origin Yangzhou, China Application1 Electrical Heating Wiring Application2 Home Appliance Wiring Keyword2 High Temperature Wire Transport Package Cartons and Pallet Specification AS CUSTOMER REQUIREMENT Trademark FONGMING Origin Yangzhou China HS Code 8544492100 Production Capacity 100000000meters Per MonthProduct Description
200deg. C High Temperature Copper Silicone Insulated Fiberglass Braiding Lead Wire
Product Description
Model No.: AWM3071
Size: 18AWG~10AWG

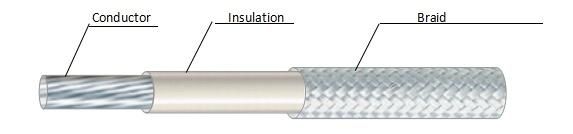

Feature
Ratings: -60°C~+200°C, 600V
Conductors: Tinned Copper
Insulation: Silicone Rubber Extruded
Sheath: Fiberglass Braided with high temper finish
Application
Used for internal wiring of household ovens, appliances, lighting fixtures and electronic equipment as high-temperature lead wire.
Specification
Rating | 200 deg C, 600 Vac, Horizontal flame. |
Conductor | 18 AWG - 13 AWG, solid or stranded. |
Insulation | Extruded SR, 0.76mm minimum average thickness, 0.69mm minimum thickness at any point. |
Covering | Same as for Type SF-2 (Fixture Wire UL 66). |
Standard | Appliance Wiring Material UL 758. |
Marking | General. |
Use | Internal Wiring of Appliances. |
Certificates
Transport & Payment
Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.
Company Information
Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producinguniversal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.
We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.
Factory Size (Sq.meters): | 45,000-50,000 square meters |
Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China |
Number of Production Lines: | 20 |
Number of R&D Staff: | 21 - 30 People |
Number of QC Staff: | 21 - 30 People |
Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
