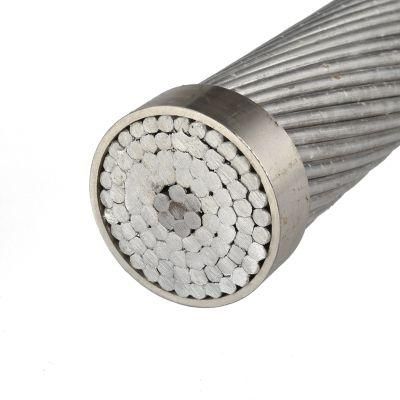

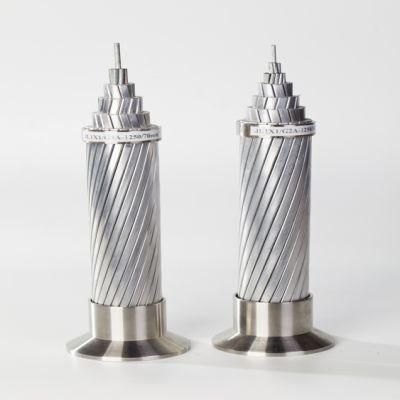

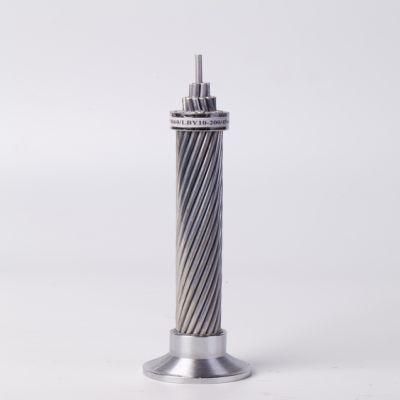

ACSR Aluminium Conductor Steel Reinforced/ ACSR ASTM Standard Conductor.
Guangdong Vango Cable Industry Co., Ltd.- Application：Construction, Overhead, Industrial, Power Station, Overhead Installation, Power Transmission Line
- Voltage：Low, Medium and High Voltage Cable
- Current：AC & DC Power Cable
- Insulation Material：Bare Conductor Cable
- Sheath Material：Bare Conductor Cable
- Material Shape：Round Wire
Base Info
- Model NO.：ACSR Conductor
- Wire Core Material：Steel Wire Cable
- Certification：ISO, CCC, CE, ISO9001,ISO14001, CCC, Ce
- Model：ACSR Conductor
- Brand：Gdyg
- Standard：BS215, ASTM232, IEC61089
- ACSR Code：Dog, Rabbit, Quail, Raven...
- Exoprt Experience：South America, Africa, Middle East Ect.
- ACSR Conductor Advantage 1：Excellent Electric and Mechanical
- ACSR Conductivity：Excellent ACSR Conductor
- Size：10-1500mm2 Cable
- Characters：Overhead Bare Conductor
- Business Type：Manufacturer,Factory
- Key Word：ACSR Conductor
- Application1：Power Transmission Line
- Transport Package：Wooden Reel, Steel Reel
- Specification：10-1500 mm2 Size
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600tons Per Month
Description
DC resitanceAluminium Steel Total Aluminium Steel Aluminium Steel Core Conductor % mm2 mm2 mm2 mm mm mm mm kg/km kN W/km 16 17 16 2.67 18.7 6 1 1.84 1.84 1.84 5.53 64.6 6.83 1.7934 25 17 25 4.17 29.2 6 1 2.30 2.30 2.30 6.91 100.9 10.25 1.1478 40 17 40 6.67 46.7 6 1 2.91 2.91 2.91 8.74 161.5 16.20 0.7174 63 17 63 10.5 73.5 6 1 3.66 3.66 3.66 11.0 254.4 24.15 0.4555 100 17 100 16.7 117 6 1 4.61 4.61 4.61 13.8 403.8 38.33 0.2869 125 6 125 6.94 132 18 1 2.97 2.97 2.97 14.9 397.9 31.04 0.2304 125 16 125 20.4 145 26 7 2.47 1.92 5.77 15.7 503.9 51.39 0.2310 160 6 160 8.89 169 18 1 3.36 3.36 3.36 16.8 509.3 38.67 0.1800 160 16 160 26.1 186 26 7 2.80 2.18 6.53 17.7 644.9 64.99 0.1805 200 6 200 11.1 211 18 1 3.76 3.76 3.76 18.8 636.7 46.89 0.1440 200 16 200 32.6 233 26 7 3.13 2.43 7.30 19.8 806.2 78.93 0.1444 250 10 250 24.6 275 22 7 3.80 2.11 6.34 21.6 880.6 75.60 0.1154 250 16 250 40.7 291 26 7 3.50 2.72 6.16 22.2 1007.7 98.66 0.1155 315 7 315 21.8 337 45 7 2.99 1.99 5.97 23.9 1039.6 85.13 0.0917 315 16 315 51.3 366 26 7 3.93 3.05 9.16 24.9 1269.7 121.20 0.0917 400 7 400 27.7 428 45 7 3.36 2.24 6.73 26.9 1320.1 106.10 0.0722 400 13 400 51.9 452 54 7 3.07 3.07 9.21 27.6 1510.3 137.56 0.0723 450 7 450 31.1 481 45 7 3.57 2.38 7.14 28.5 1485.2 115.87 0.0642 450 13 450 58.3 508 54 7 3.26 3.26 9.77 29.3 1699.1 154.75 0.0643 500 7 500 34.6 535 45 7 3.76 2.51 7.52 30.1 1650.2 128.74 0.0578 500 13 500 64.8 565 54 7 3.43 3.43 10.30 30.9 1887.9 171.94 0.0578 560 7 560 38.7 599 45 7 3.98 2.65 7.96 31.6 1848.2 144.19 0.0516 560 13 560 70.9 631 54 19 3.63 2.18 10.90 32.7 2103.4 192.45 0.0516 630 7 630 43.6 674 45 7 4.22 2.81 8.44 33.8 2079.2 162.21 0.0459 630 13 630 79.8 710 54 19 3.85 2.31 11.60 34.7 2366.3 213.32 0.0459 710 7 710 40.1 759 45 7 4.48 2.99 8.96 35.9 2343.2 182.81 0.0407 710 13 710 89.9 800 54 19 4.09 2.45 12.30 36.8 2666.8 240.41 0.0407 800 4 800 34.6 835 72 7 3.76 2.51 7.52 37.6 2480.2 176.74 0.0361 800 8 800 66.7 867 84 7 3.48 3.48 10.40 38.3 2732.7 224.00 0.0362 800 13 800 101.0 901 54 19 4.34 2.61 13.00 39.1 3004.9 270.88 0.0362 900 4 900 38.9 939 72 7 3.99 2.66 7.98 39.9 2790.2 198.83 0.0321 900 8 900 75.0 975 84 7 3.69 3.69 11.10 40.6 3074.2 244.50 0.0322 1000 4 1000 43.2 1043 72 7 4.21 2.80 8.41 42.1 3100.3 220.93 0.0289 1120 4 1120 47.3 1167 72 19 4.45 1.78 8.90 44.5 3464.9 247.77 0.0258 1120 8 1120 91.2 1211 84 19 4.12 2.47 12.40 45.3 3811.5 307.79 0.0258 1250 4 1250 52.8 1303 72 19 4.70 1.88 9.40 47.0 3867.1 276.53 0.0231 1250 8 1250 102.0 1352 84 19 4.35 2.61 13.10 47.9 4253.9 343.52 0.0232

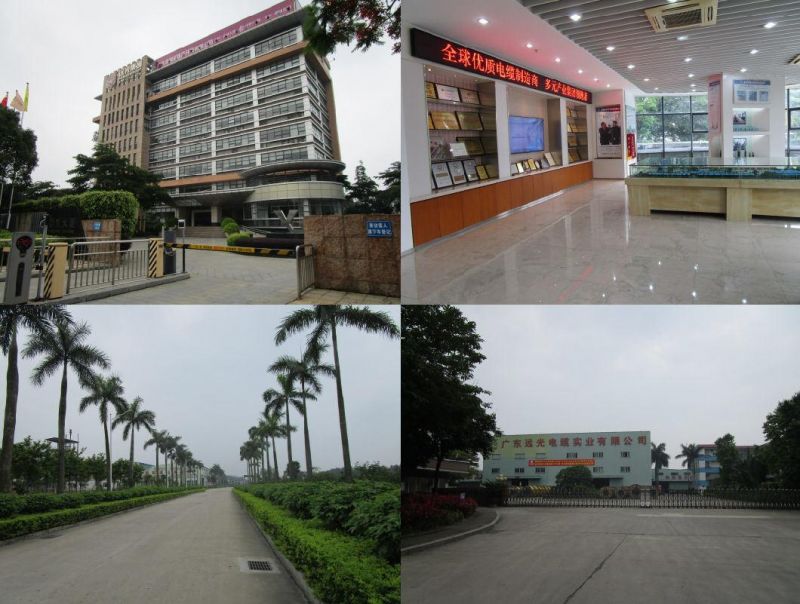

5. About us:
Established in 1988, as one of the main enterprise of Vango Group, Guangdong Vango Cable Industry Co., Ltd. It covers 214000m² with about 110 sets international advanced cable and wire producing and testing equipment. There are 540 employees including over 116 intermediate and senior technical personnel with 9 senior titles which contributes strong power of scientific research, management and innovation. It gains 21 Patents issued by State Intellectual Property Office of China.
The main products are power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items. The researching and manufacturing of conductor applied in 500kV to 1000kV ultra-high voltage DC transmission line is in the domestic advanced level. Guang Brand products have been widely supplying to the key engineering projects of State Grid Corporation of China and China Southern Power Grid, such as ±800kV DC Transmission Line from Yunnan to Guangdong, ±500kV DC Transmission Line from Xi Nuodu Power Station to Guangdong, ±800kV DC Transmission Line from Nuo Zhadu Power Station to Guangdong and etc. The products are exporting to Pilipinas, Cambodia, South Africa, Madagascar and other countries.

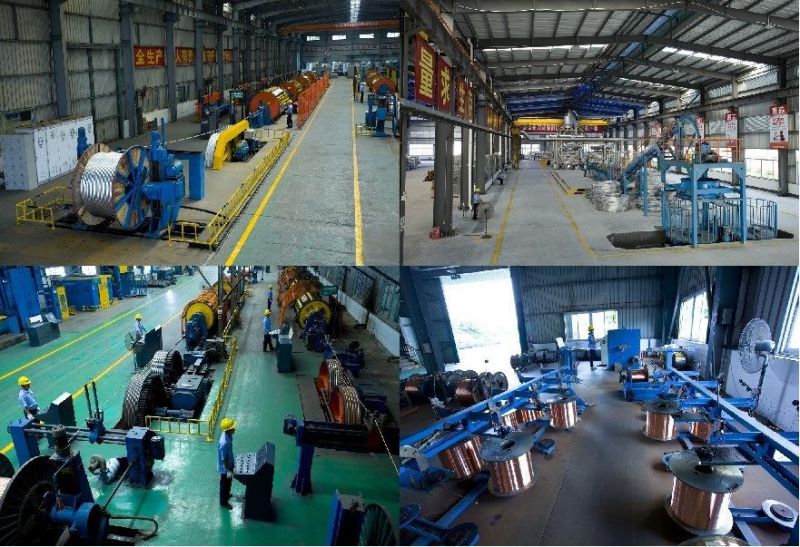

6. Workshop:

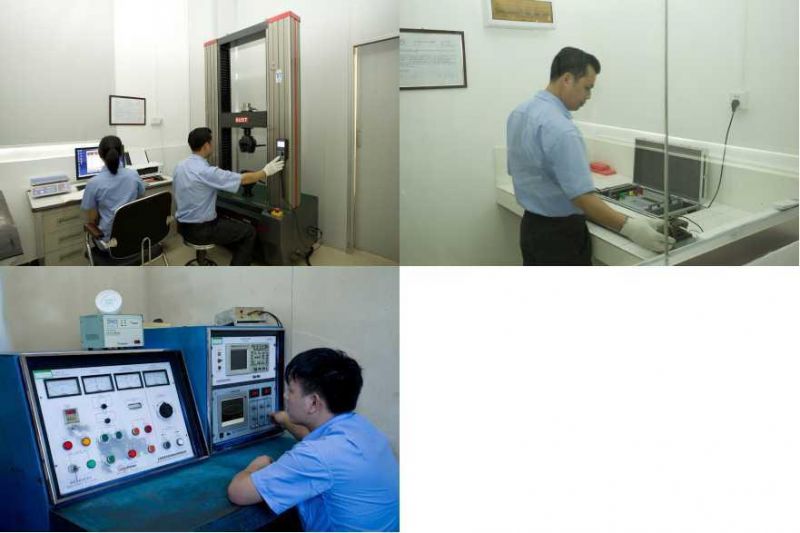

7. Testing:

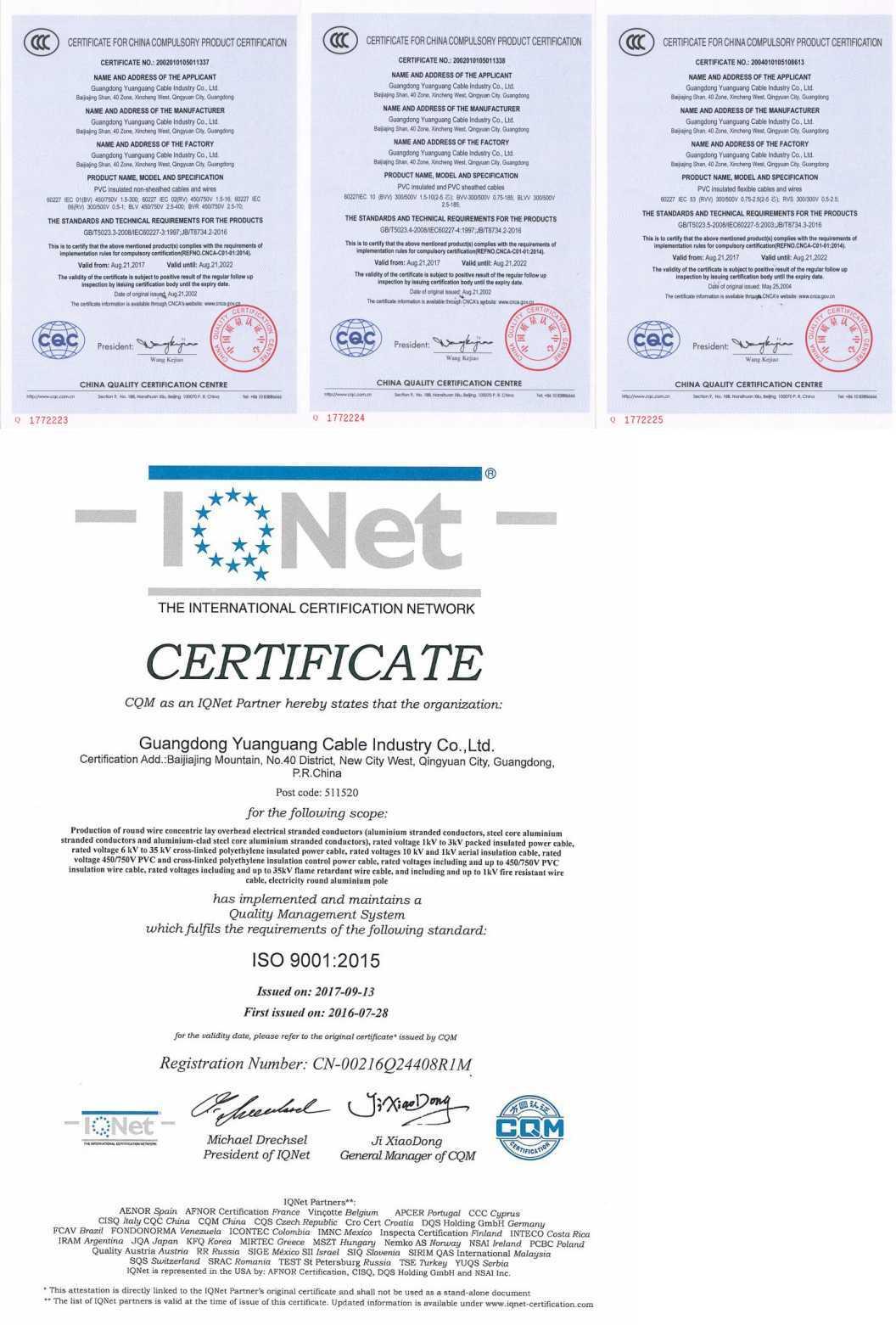

8. Certificates:
8. Customers:
8. Why Choose us?
♥ Strict Quality Control System Reliable Qualty Taking The Lead:
In 2001, as the first in the industy, Guangdong Vangou Cable Industy Co., Ltd. passed the certifications of the ISO9001 quality system and metrological system. Its prodution is strictly submitted to such international and national standards as IEC, GB and BS. Its all products have the national production locense; passed the national CCC certification. Its first grade quality wins customer's favor.
♥ First Grade Production Equipment and Environment, High Standaed Makes True Value:
The company is well-equippede. The main manufacturing facilities are Wire-drawing group for Aliminum Alloy and Line Mold which is the second set of China 2010, SIKORA measuring Device, CLY-3/2000 Cabling Machine, LHD-450/13 Sliding Aluminum Drawing Machine, JLK-6+12+18+24/630 Frame-type Strander and CCV-0+3/65+150+90 Triple Extruction Cross-link Production Line etc. which forms the production capacity of super standard cable with rated voltage from 0.6kV to 1000kV.
FAQ:
1. Are you a trading company or manufacture?
We are a wire and cable Manufacturer with 30 years history almostly, our factory located in Qingyuan, Guangdong Province, China.
2. What is your main product?
As one of leading cable manufacturers in China, we are specialized in power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.
3. Can you offer me a free sample?
Yes, sample is free but the freight charge should be borne by you.
4.How is the payment?
T/T, L/C is acceptable.
5. What is the lead time for mass production?
It depends on the order quantity and the season you place the order. Normally within 1 month.
6.Do you accept OEM or ODM?
Yes, we accept OEM and ODM. Your logo and company name can be printed on our products.
7.Do you have after-sale service?
Yes, 12 months warranty.
