18mm 20mm Stranded Copper Wire

Henan Jiapu Cable Co., Ltd.
  • Application：Overhead
  • Voltage：Low and Medium Voltage Cable
  • Current：DC Cable
  • Insulation Material：PVC
  • Material Shape：Round Wire
  • Wire Core Material：Bare Copper Wire

Base Info

  • Model NO.：BV,BVV,BVVB
  • Certification：ISO, CCC, CE, 1
  • Certificate：ISO, Ce, SABS, CCC
  • Applicable Standard：ASTM BS CSA IEC DIN
  • Cable Marking：as Your Request
  • Transport Package：Wooden Drums
  • Specification：any one
  • Trademark：Jiapu
  • Origin：Henan China
  • HS Code：4101962331
  • Production Capacity：5000km,Month

Description

Basic Info.

Model NO. BV/BVV/BVVB Certification ISO, CCC, CE, 1 Certificate ISO, Ce, SABS, CCC Applicable Standard ASTM BS CSA IEC DIN Cable Marking as Your Request Transport Package Wooden Drums Specification any one Trademark Jiapu Origin Henan China HS Code 4101962331 Production Capacity 5000km/Month

Product Description

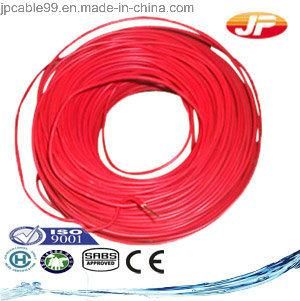

1.5mm 2.5mm 4mm 6mm 8mm 10mm 12mm 14m 16mm 18mm 20mm stranded copper wire
Applications
Be fit for AC voltage at or below 450/750V
STANDARD
ISO IEC CCC
Using features

1. Rated voltage: Uo/U: 0.6/1kV
2. No. Of core: Single-core, Two-core, Three-core, Four-core, Five-core, Three core and earth(Three primary conductor and one Neutral conductor), Three core and two((Three primary conductor and Two Neutral conductor), Four core and earth((Four primary conductor and One Neutral conductor).
3. The highest allowed operating temperature of conductor for long-term working is 70oC. In short-circuit (Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than 160oC

Type
1. Copper (aluminum) conductor PVC insulated wires (BV)
2. Copper conductor PVC insulated flexible wires (BVR)
3. Copper (aluminum) conductor PVC insulated PVC sheathed round wires
4. Copper (aluminum) conductor PVC insulated PVC sheathed flat wires
5. Copper conductor PVC insulated flat flexible connectors
6. Copper conductor PVC insulated PVC sheathed round flexible connector

Nominal cross sectional area of conductor(mm2)
Insulation thickness

Maximum Overall Diameter    mm
Weight/Km

1 x 1.5
0.7
3.3
22

1 x 2.5
0.8
3.9
32

1 x 4.0
0.8
4.6
50

1 x 6.0
0.8
5.2
71

1 x 10.0
1.0
6.7
120

1 x 16.0
1.0
7.8
180

1 x 25.0
1.2
9.7
280

1 x 35.0
1.2
10.9
380

1 x 50.0
1.4
12.8
510

1 x 70.0
1.4
14.6
710

1 x 95.0
1.6
17.1
970

1 x 120.0
1.6
18.8
1200

1 x 150.0
1.8
20.9
1480

1 x 185.0
2.0
23.3
1900

1 x 240.0
2.2
26.6
2480

1 x 300.0
2.4
29.6
3100
