• Model NO.：NFC 33-226
• Material Shape：Round Wire
• Range of Application：Construction, Overhead, Underground, Industrial,
• Certification：CE, CCC, RoHS, VDE
• Brand：Fengda
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

Alu 1x630mm2 - 18/30 (36) KV NFC 33-226

Application:
The cable can be used for overhead power transmission .  The cable can bear external mechanical pressure and moderate pulling force with different design , such as metallic armour , water proof material , etc.

CHARACTERISTICS
Voltage Rating
18/30 (36kV)
Temperature Rating
Operating temperature: +90ºC
Short Circuit: +250 °C
Minimum Bending Radius
Bending factor when laying 15 (xD)

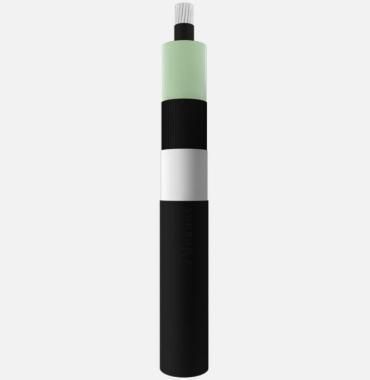

CONSTRUCTION
Conductor
Class 2 Aluminium stranded wire
Conductor Screen
Semi-conductive XLPE (Cross-linked Polyethylene) bonded to
conductor
Insulation
XLPE (Cross-linked polyethylene)
Insulation Screen
Grooved peelable semi-conducting XLPE (Cross-linked
Polyethylene)
Tightness powder in the grooves
Screen
Al/PET (Aluminium foil tape)
Outer Sheath
PE (Polyethylene)

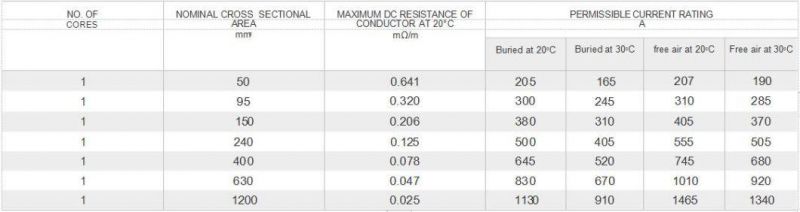

Dimension Characteristics
