Weatherproof Outdoor UTP CAT6 Data LAN Cable
Hangzhou Spring Electronics Co., Ltd.- Application:Local Communication Cable, LAN Cable
- Conductor Material:BC,CCS,CCA,TC,CU,CCAG
- Cover Material:PVC
- Type:Cat 6
- Material Shape:Round Wire
- Conductor Type:Solid
Base Info
- Model NO.:UTP CAT6
- Wire Core Material:Bare Copper Wire
- Certification:CE, ISO, RoHS
- Brand:Fuu
- Color Availability:Additional Cable Colors Available.
- Transport Package:305m
- Specification:0.55mm conductor
- Trademark:FUU
- Origin:China
- HS Code:8544200000
- Production Capacity:5000km,Month

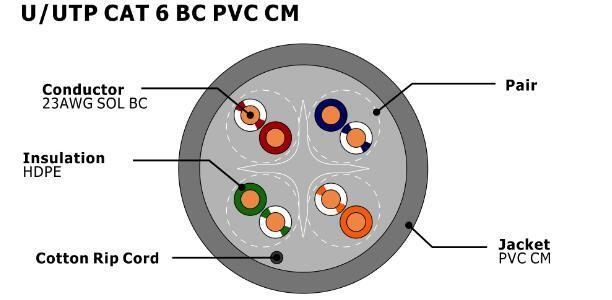

Description
Conductor:
23 AWG Solid Bare Copper
Pairs:
4 Pairs
Insulation:
1.02 mm HDPE
Insulation Colors:
Blue-White/Blue,Orange-White/Orange
Green-White/Green,Brown-White/Brown
Filler:
Cross Filler
Rip Cord:
Cotton
Out Jacket:
6.4±0.2 mm PVC CM
Impedance
1 - 250MHz 100±15 Ohms
Insulation Resistance
>5000MΩ*KM
Dielectric strength
DC 2500V 2S
Max.Conductor DC
Resistance 20ºC
8.4 Ohms/100m
Res. unbalance (%)
Max. 2.5
Pair to Ground
Capacitance Unbalance
330 pF/100m
Transfer Impendance
Max 10 mOhms/m @100Mhz
Installation temp.
-30 - 50ºC
Operation temp.
-20 - 75ºC
• Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 6 and
ISO 11801 2nd Edition Class E channel standards.
• Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5
Category 6 component standards.
• Third party tested to comply with ANSI/TIA-568-C.2.
• Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
• Descending length cable markings enable easy identification of remaining cable
which reduces installation time and cable scrap.
• Color Availability: Additional cable colors available.
Frequency
RL (Min.)
Insertion Loss(Max.)
Propagation Delay (Max.)
Delay Skew(Max.)
NEXT (Min.)
PSNEXT (Min.)
ELNEXT (Min.)
PSELNEXT (Min.)
MHz
dB
dB/100m
ns/100m
ns/100m
dB
dB
dB/100m
dB/100m
1
20.0
2.0
570.0
45.0
74.0
72.0
67.8
64.8
4
23.0
3.8
552.0
45.0
65.0
63.0
55.7
52.7
10
25.0
6.0
545.0
45.0
59.0
57.0
47.8
44.8
16
25.0
7.6
543.0
45.0
56.0
54.0
43.7
40.7
20
25.0
8.5
542.0
45.0
55.0
53.0
41.7
38.7
31.25
23.6
10.7
540.0
45.0
52.0
50.0
37.9
34.9
62.5
21.5
15.4
539.0
45.0
47.0
45.0
31.8
28.8
100
20.1
19.8
538.0
45.0
44.3
42.3
27.8
24.8
200
18.0
29.0
537.0
45.0
39.7
37.7
21.7
18.7
250
17.3
32.8
536.0
45.0
38.0
36.0
19.8
16.8
Note: The above transmission performance tor the 100M, 20±2ºC under the conditions tested.
Marking
U/UTP CAT6 4PR 23AWG PVC XXX (or Per customer's request)
Inner Package
305m/Spool,305m/Reel (or Per customer's request)
Outer Package
Color Box, Pallet (or Per customer's request)
Delivery time
Normally 25 days after received the deposit.
Our Service:
1) Quick Response --All inquiries will be replied within 24 hours.
2) Professional Quotation --All prices will be quote according to customers' detailed
specifications & requirements.
3) OEM & ODM Service
4) Can print your own brand on the jacket printing with foot or meter marking.
5) Make customized designs for stickers, drums, outer cartons, etc.
6) Stable Quality --All materials and products passed restrict QC procedures,comply with
international standards.
7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
Confirmation in usual.
Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo
