• Model NO.：UTP Cat5e Cable
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, UL, ETL SGS CPR
• Model：UTP Cat5e
• Brand：Risun or OEM
• Transport Package：305m,Pull Box, 2 Pull Box,CTN.
• Trademark：RISUN or OEM
• Origin：Hangzhou, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000box,Month

Conductor:0.50±0.01mm(24AWG) Bare CopperInsulation:0.90±0.02mm HDPECores/Pairs:8/4Sheath:5.1±0.2mm LSZH(Pass Vertical Flame Test)Options: Jelly CompoundJacket: UV, FR, RoHS, Reach complied
Mechanical Properties:Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10MPa
Electrical Properties:Conductor Resistance≤9.5 Ω/100mResistance Unbalance≤2%Insulation Resistance≥5000 MΩ·KMCapacitance≤5.6 nF/100mImpedance100 ± 15 ohmSpark Test2000VVelocity of Propagation69%
Technical Performance:

Frequency	Att	RL	NEXT	DELAY	PS NEXT	EL FEXT	PS EL FEXT
(MHz)	(≤dB/100M)	(≥dB)	(≥dB)	(≤ns/100M)	(≥dB)	(≤dB/100M)	(≤dB/100M)
4	4.1	23.0	56.3	552.0	53.3	52.0	49.0
8	5.8	24.5	51.8	547.0	48.8	45.9	42.9
10	6.5	25.0	50.3	545.0	47.3	44.0	41.0
16	8.2	25.0	47.2	543.0	44.2	39.9	36.9
20	9.3	25.0	45.8	542.0	42.8	38.0	35.0
25	10.4	24.3	44.3	541.0	41.3	36.0	33.0
31.25	11.7	23.6	42.9	540.0	39.9	34.1	31.1
62.5	17.0	21.5	38.4	539.0	35.4	28.1	25.1
100	22.0	20.1	35.3	538.0	32.3	24.0	21.0

Cat5e Cable:


Item	Conductor	Insulation (UV,FR,RoHS)	Cores / Pairs	Shield	Drain Wire	Sheath (UV,FR,RoHS, Reach)	Messenger

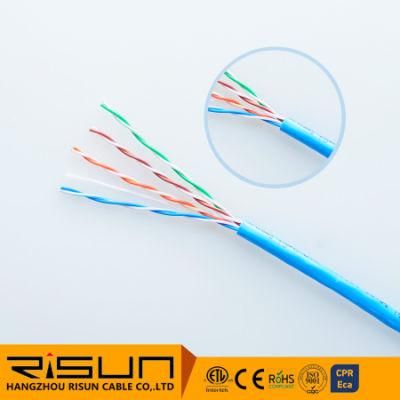

U/UTP Cat5e solid	0.50±0.01mm (24AWG)BC/CCA	0.90±0.02mm HDPE/PVC	8/4	Non	Non	5.1±0.2mm PVC(PE,LSZH)	Non
U/UTP Cat5e strand	7/0.20±0.01mm (24AWG)BC/CCA	0.96±0.02mm HDPE/PVC	8/4	Non	Non	5.6±0.2mm PVC(PE,LSZH)	Non
U/UTP Cat5e double jacket	0.50±0.01mm (24AWG)BC/CCA	0.90±0.02mm HDPE/PVC	8/4	Non	Non	6.2±0.2mm PVC+PE/PVC +PVC/PE+PE	Non
U/UTP Cat5e dual/messenger	0.50±0.01mm (24AWG)BC/CCA	0.90±0.02mm HDPE/PVC	8/4	Non	Non	5.1±0.2mm PVC(PE)	1.16±0.1mm Steel

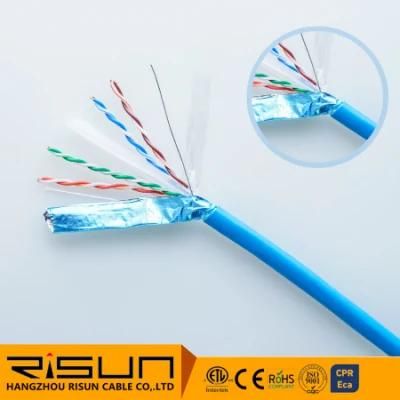

F/UTP Cat5e solid	0.51±0.02mm (24AWG)BC/CCA	1.00±0.02mm HDPE/PVC	8/4	Polyester Tape +Al Foil	0.40±0.01mm (26AWG)TC	6.2±0.2mm PVC(PE,LSZH)	Non
F/UTP Cat5e messenger	0.51±0.02mm (24AWG)BC/CCA	1.00±0.02mm HDPE/PVC	8/4	Polyester Tape +Al Foil	0.40±0.01mm (26AWG)TC	6.2±0.2mm PVC(PE)	1.16±0.1mm Steel
SF/UTP Cat5e solid	0.51±0.02mm (24AWG)BC/CCA	1.00±0.02mm HDPE/PVC	8/4	Polyester Tape+ Al Foil+≥40%TC	0.40±0.01mm (26AWG)TC	6.8±0.2mm PVC(PE,LSZH)	Non

Packing:
50m/roll, 100m/roll, 200m/roll, 305m/roll, 500m/roll, 1000m/roll
Other lengths available according to customer's request.
