GYXY Unitube Black Bulk Fiber Optic Cable Unarmored 12 Cores G652D GYXY Fiber Optical Cable
Hanyang (Hangzhou) Cable Co., Ltd.- Application：Communication, Outdoor Cabling
- Type：Single-mode Fiber
- Connection Structure：No
- Material Shape：Round Wire
- Allowed Lateral Pressure：300,1000 N,100mm
- Allowed Tensile Strength：600,1500 N
Base Info
- Model NO.：GYXY
- Core：Multicore
- Certification：RoHS, UL, CE, ISO9001, CCC
- Brand：Superlink ,OEM
- Sheath Material：PE
- Fiber Count：2-24 Core
- Strength Member：Steel Wire
- Transport Package：Wooden Drum , Pallet
- Specification：Outdoor optical cable GYXY
- Trademark：SUPERLINK , OEM
- Origin：Zhejiang, China
- HS Code：85447000
- Production Capacity：80000km,Month
Description
Our service1. All kinds of cable products & one-stop experience.
2. Quality & competitive price.
3. Order process will be shared via photo and video.
4. On-time delivery & After-sales problems solved before sales.
5. 24/7 hours response.
All start here

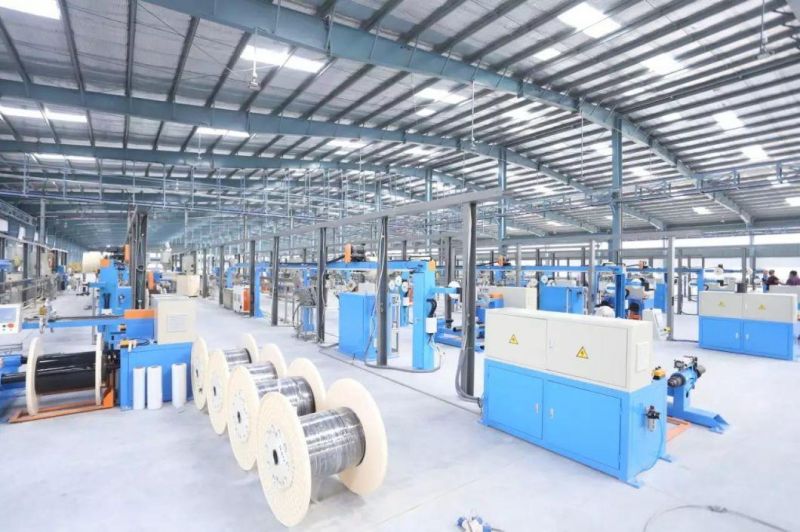

We have three factories located in Hangzhou, Shenzhen and Vietnam. The total production base exceeds 300,000 square meters. We plan to set up offices in all coastal port cities in China to achieve fast delivery.
Connect the world 1. Hangzhou factory: "Quality first" pass tests.
2. Shenzhen factory: "Price first"
3. Vietnam factory: Export to EU, America, no tariffs, anti-dumping.Our capability
1. 17 years of production experience, quality first, customer first, service first.
2. Swiss moulds with high precision are selected for production equipment.
3. Complete supply chain. We have our own raw material factory, from materials to finished products, offer more competitive pricing with good quality for customer.
Description:

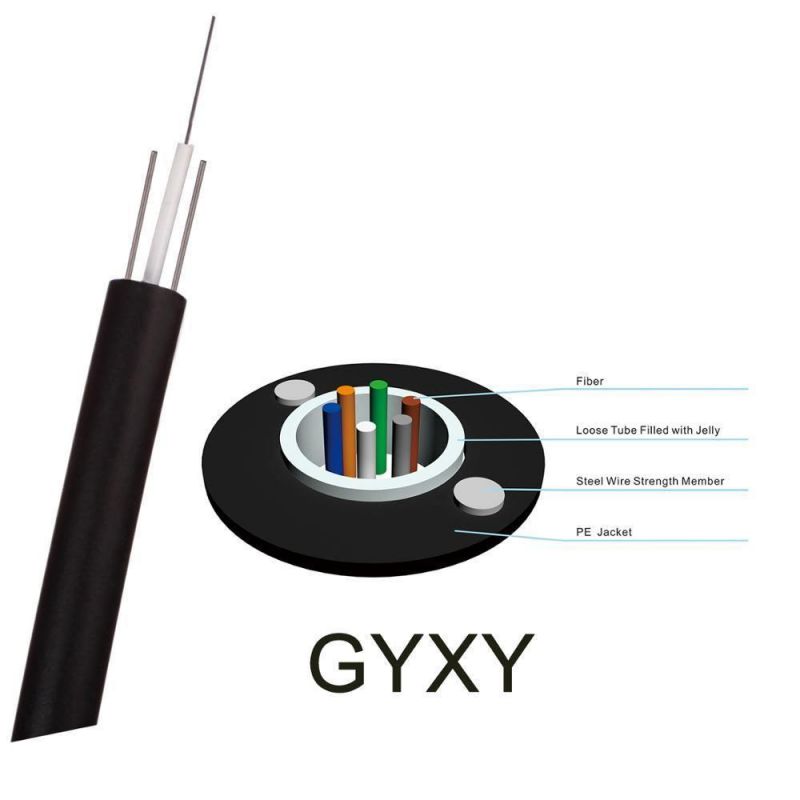

250µm fiber are positioned in the loose tube which is made of high module plastics and the loose tube is filled with waterproof chemical compound ,and the water-blocking materials is applied to keep the cable watertight , two parallel steel wires are placed at two sides .Technical parameters
| Cable Type | Fiber Count | Cable Diameter Mm | Cable Weight Kg/km | Tensile Strength Long/short term N | Crush Resistance Long/short term N/100mm | Bending Radius Static/dynamic mm |
| GYXY-2~12 | 2~12 | 6.5 | 40 | 600/1500 | 300/1000 | 10D/20D |
| GYXY-14~24 | 14~24 | 7.0 | 45 | 600/1500 | 300/1000 | 10D/20D |
Characteristics:
Good mechanical performance and temperature propertyLoose tube itself has good resistance to hydrolysis performance and high strength
The tube filled with special cream ,optical fiber was key protection .
Two parallel steel wire ensue the cable crush resistance
PE Jacket is good is anti-UV
Diameter is small ,weight is light and easy to lay
Greater deliver strength
Standards:Applied to YD/T 769
1. What's your company MOQ?- Our MOQ is 30km. But MOQ of stocks are 1 pcs.
2. Can you do our design?
- Of course, your customized design (OEM) is available.
3. What's the lead-time for order delivery?
- Within 10~30days.
4. Can you send a sample for us?
- Yes, we can provide free samples.
5. What is your packaging?

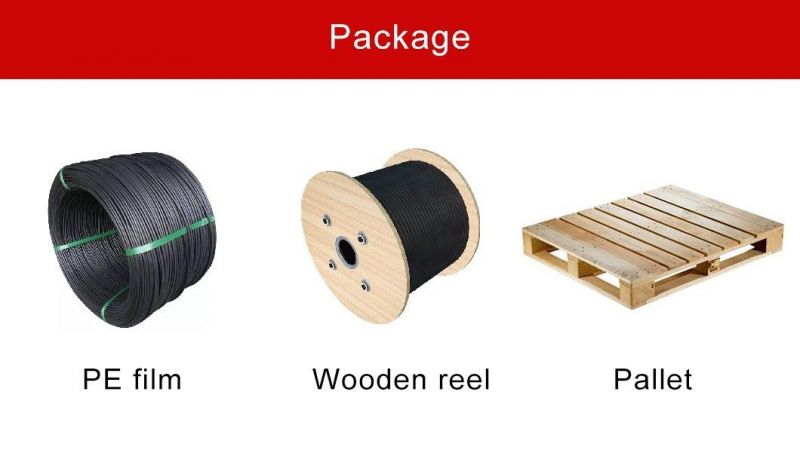

- Our packaging includes PE film, shrink bag, pull box, paper reel, plastic reel, wooden reel. Depends on what you want!
6. Delivery time and transportation method?
- Shipment can be arranged immediately. By express, by sea, by air, you can ship whatever you want.
7.Payment method?
- T/T, L/C, we also accept most other convenient methods of payment.
