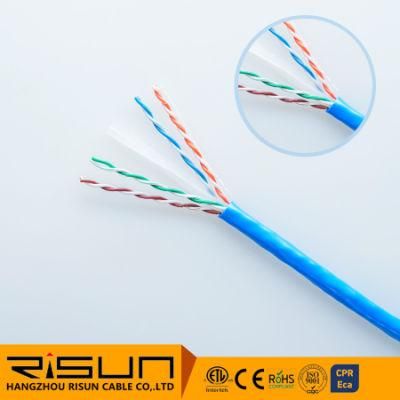

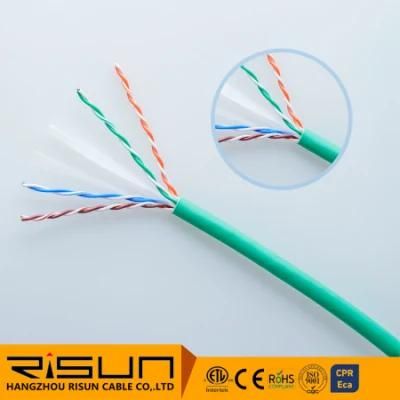

Communication Cable UTP CAT6 with High Performance

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：UTP CAT6
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, ETL SGS CPR
  • Model：UTP CAT6
  • Brand：Risun or OEM
  • Color：as Your Request
  • Transport Package：305m,Wooden Reel, 1 Reel,CTN.
  • Trademark：RISUN or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000box,Month

Description

Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10 MPa



Electrical Properties:

Conductor Resistance≤7.5 Ω/100mResistance Unbalance≤ 2%Insulation Resistance≥5000 MΩ·KMImpedance100±15 ohmSpark Test2000VVelocity of Propagation69%



Technical Performance:

   Frequency         Attenuation        RL    Next       PS Next       (MHz)          (≤dB/100m)       (≥dB)     (≥dB)          (≥dB)           4               3.8       23.0     66.3         63.3           8               5.3       24.5     61.8         58.8         10               6.0       25.0     60.3         57.3         16               7.6       25.0     57.2         54.2         20               8.5       25.0     55.8         52.8         25               9.5       24.3     54.3         51.3       31.25              10.7       23.6     52.9         49.9        62.5              15.4       21.5     48.4         45.4        100              19.8       20.1     45.3         42.3        200              29.0       18.0     40.8         37.8        250              32.8       17.3     39.3         36.3

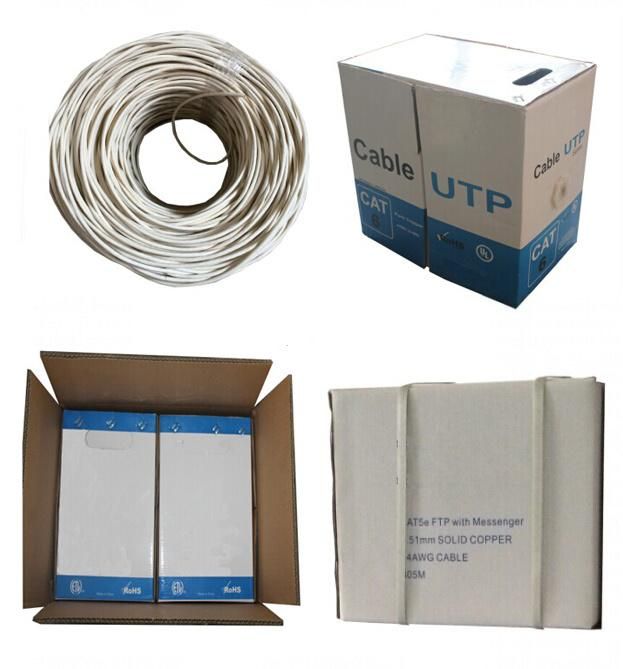

Packing:

Communication Cable UTP CAT6 with High Performance

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.




Communication Cable UTP CAT6 with High Performance
Communication Cable UTP CAT6 with High Performance

WELCOME TO RISUN


Risun is a manufacturer and exporter of high quality Lan cable/Network cable,coaxial cable, alarm cable and telephone cable in China. We have already get ETL, CE, Rohs, ISO9001 certification.

Why Risun?
1. We have already provided cables for More than 100 customers in 40 countries in the past 10 years. It makes us very familiar with exporting rules.
2. Factory audited by SGS, INTERTEK.
3. Products through CE , ETL & RoHS certification.
4. Manufacturer's direct pricing.
5. Custom Design and Packaging

Our Tenet: If we can not be the best, we be the most suitable.
