• Model NO.：Airport Lighting Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, SGS
• Model：Faa-L-824
• Brand：OEM
• Rated Voltage：2.5,5kv
• Transport Package：1000m,Drum or 3000FT,Drum
• Specification：6mm2, 8AWG, 6AWG, 4AWG
• Trademark：Hongda
• Origin：Zhengzhou, China
• HS Code：8544492100
• Production Capacity：20000km,Year

Basic Info.

Model NO. Airport Lighting Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, SGS Model Faa-L-824 Brand OEM Rated Voltage 2.5/5kv Transport Package 1000m/Drum or 3000FT/Drum Specification 6mm2, 8AWG, 6AWG, 4AWG Trademark Hongda Origin Zhengzhou, China HS Code 8544492100 Production Capacity 20000km/Year

Product Description

5kV 6mm2 XLPE CTS PVC Cable, Airport Lighting Cable

PRIMARY AIRPORT LIGHTING CABLE COPPER CONDUCTOR, XLPE INSULATION, COPPER TAPE SHIELD, HDPE SHEATH

GENERAL SCOPE

• Airport lighting cable 5 kV used for power transmission from power generator to lighting and guiding light … in lighting system of airport. Buried direct in ground or install in duct buried in ground, rated voltage 5 kV.

APPLIED STANDARDS

- FAA L-824 Type C

• ANSI/NEMA WC 74/ICEA S-93-639-2012

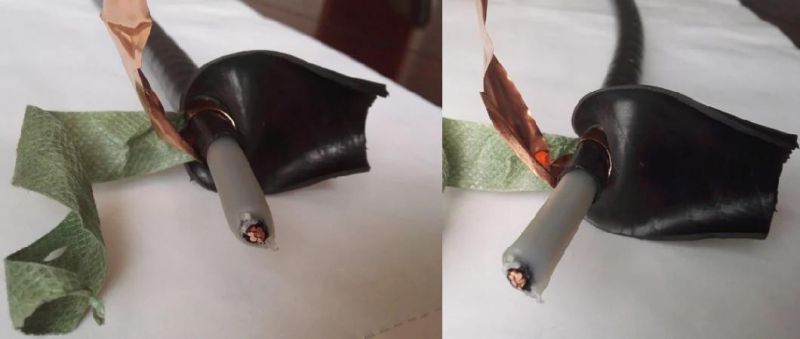

CONSTRUCTION



Conductor	Stranded bare or tinned copper.
Inner Semi-Conductor	Extruded semi-conducting compound.
Insulation	XLPE.
Outer Semi-Conductor	Semi conducting tape or extruded.
Shield	Copper or brass tape(s). Tinned copper wire braid can be offered upon request.
Sheath	PVC. PE/XLPE can be offered upon request.



TECHNICAL CHARACTERISTICS

Rated voltage: 5 kV
Test voltage: 18 kV AC (5 minutes)
Maximum conductor temperature for normal operation is 90ºC
Maximum conductor temperature for short-circuit (5s maximum duration) is 250ºC
Continuous working current upto 20 A
Minimum bending radius: 9 x D  (D: cable diameter)

Dimensions and Weight

Construction	No. of Strand	Nominal Insulation Thickness	Nominal Overall Diameter	Nominal Weight
No. x mm^2/ AWG	-	mm	mm	kg/km
1×6mm^2	7/19	2.3	11.0	180
1×8	7/19	2.3	14.3	298
1×6	7/19	2.3	15.4	366
1×4	7/19	2.3	17.0	513
