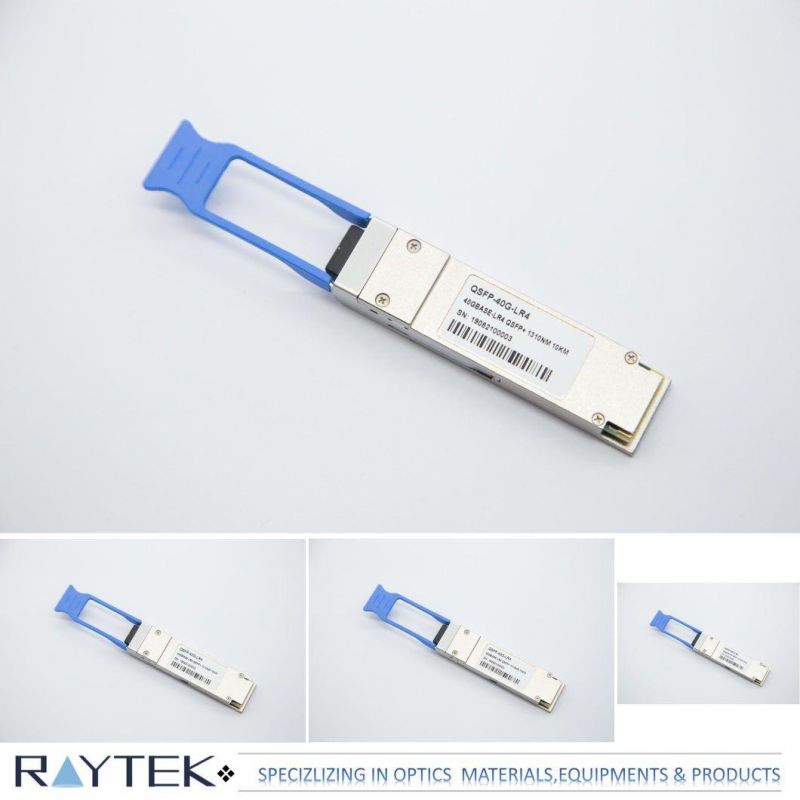

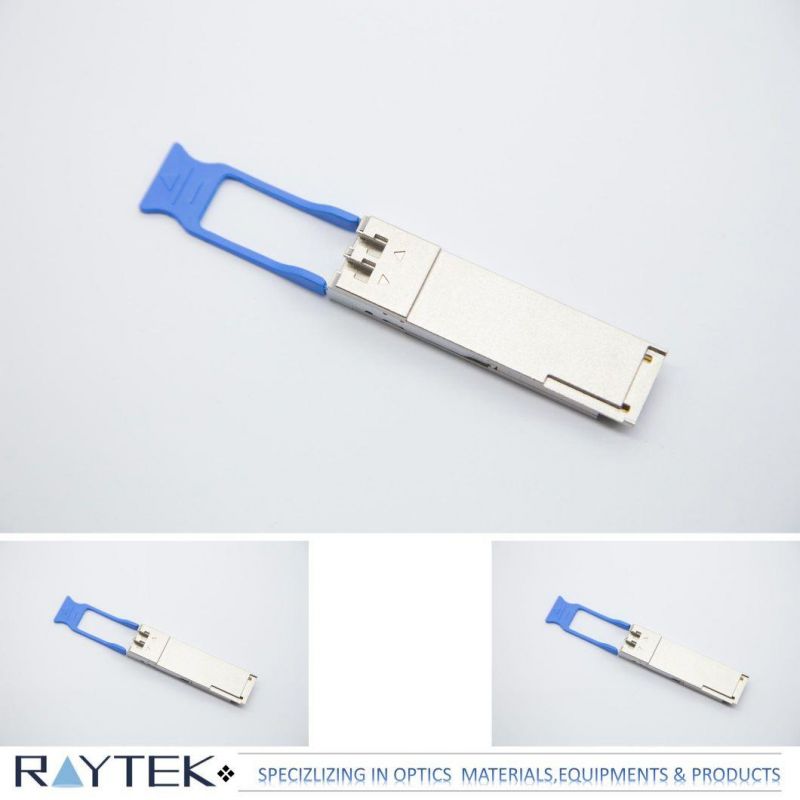

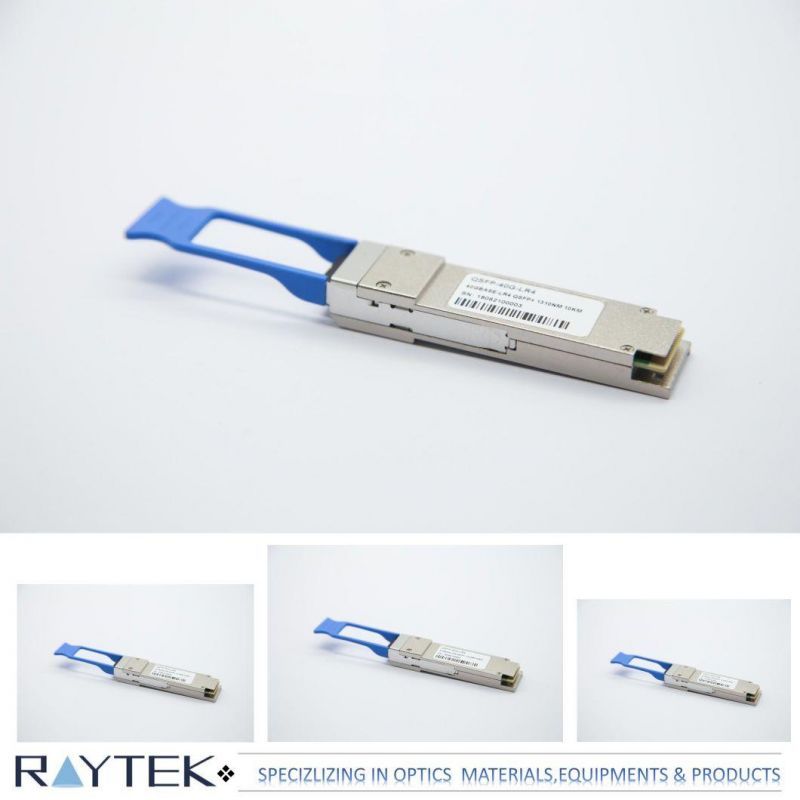

Qsfp+ Lr4 10km Optical Transceiver with Full Real-Time Digital Diagnostic Monitoring
Shanghai Rui Tai Photoelectric Technology Co., Ltd.- Application：Communication, Art, Sensor, Medicine, Probe, Sensing
- Type：Single-Mode & Multi-Mode
- Connection Structure：All Models
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：>10000N
Base Info
- Model NO.：RAY-OF2011#
- Core：Single-Core,Multi-Core, Double-Core
- Certification：RoHS, UL, CE, ISO9001, VDE, CCC
- Brand：Raytek
- Sheath Material：Customized
- Power Consumption：3.5W
- Supply Current：1.06A
- Transceiver Power-on Initialization Time：2000ms
- Data Dependent Pulse Width Shrinkage (Dd：0.07ui
- Transport Package：1PCS Per Box
- Specification：custom as per demand
- Trademark：Raytek
- Origin：China
- HS Code：8536700000
- Production Capacity：100, 000, 0PCS Per Year
Description
Digital Diagnostic Functions:
The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
| Parameter | Symbol | Min | Max | Unit | Notes |
| Temperature monitor absolute error | DMI_Temp | -3 | +3 | ºC | Over operating temperature range |
| Supply voltage monitor absolute error | DMI_VCC | -0.1 | +0.1 | V | Over full operating range |
| Channel RX power monitor absolute error | DMI_RX_Ch | -2 | +2 | dB | 1 |
| Channel Bias current monitor | DMI_Ibias_Ch | -10% | +10% | mA | |
| Channel TX power monitor absolute error | DMI_TX_Ch | -2 | +2 | dB | 1 |
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optical transceiver products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
