• Model NO.：Avvg, Vvg
• Material Shape：Round Wire
• Range of Application：Household and Industrial Electrical Appliances
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：US $0.1-0.99, Meter
• Trademark：FengDa
• Origin：Tianjin, China
• HS Code：8544492100
• Production Capacity：5, 000, 000km,Year

Basic Info.

Model NO. Avvg, Vvg Material Shape Round Wire Range of Application Household and Industrial Electrical Appliances Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Feiya Transport Package Wooden Box Packing or Pallet Shipping Containers Specification US $0.1-0.99/ Meter Trademark FengDa Origin Tianjin, China HS Code 8544492100 Production Capacity 5, 000, 000km/Year

Product Description

Product Description:

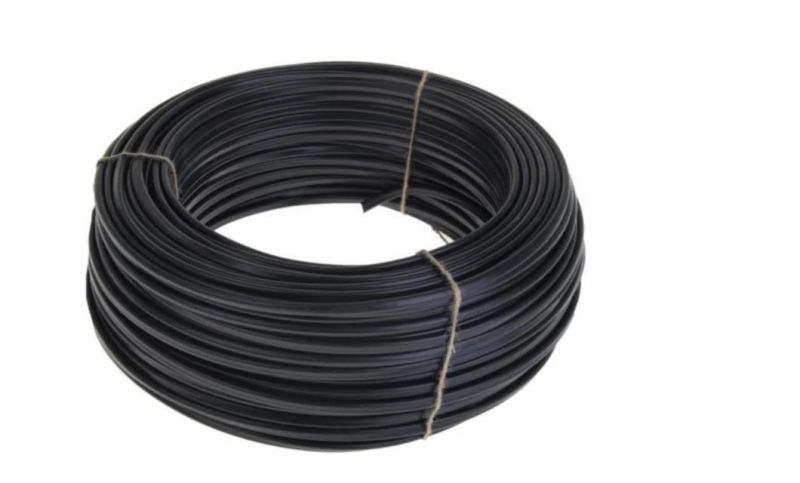

VVG wire is intended for use in household and industrial electrical circuits, with voltage up to 1000 Volts. Most often, such a wire is recommended for home electrical wiring when using hidden and open installation methods, as well as when installing behind plasterboard floors.
A limitation on the use of VVG cable is laying it under the ground, since the soft outer insulation will not be able to protect the wire from rodents or mechanical damage that may arise due to soil displacement. If it is necessary to use it for laying underground utilities, the cable should be laid in a pipe or other rigid insulation.
The cable is designed for fixed electrical installations, laying the cable in wiring channels, for installations in wet and dry premises, as well as for power supply input installation.
Technical Data

Where and how you can use a particular brand of cable show its technical characteristics. The VVG electrical wire has several varieties, of which the VVGng cable is most often used, the technical characteristics of which are suitable for single and heap laying.

• The maximum voltage is 660-1000 Volts, depending on the insulation class.
• The recommended temperature for use is from -50 to +50 C °.
• It is allowed to use at air humidity up to 98%.
• The temperature that the insulation can withstand for a long time without changing its properties is 70 ° C. For a short time it can withstand heating up to 90 ° C and about 4 seconds - up to 250 ° C. Insulation ignites at temperatures of +400 and above.
• Emergency operation is allowed for 8 hours a day, but not more than a thousand hours for the entire life of the wire.
• The permissible bending radius during installation depends on the type of core - solid or multi-wire. In the first case, the bend will be the total cable diameter * 10, and in the second - the diameter * 7.5.
• The number of wires in the coil depends on the cross-section of the cores. Up to 16 mm² - 450 meters, from 25 to 70 mm² - 300 meters, and all others - 200 m.

Construction

Conductor

Copper core, single-wire or multiwire, circular or sector-shaped form of the 1 or 2 class according to GOST 22483.

Insulation

PVC- compound (color coded conductor).

Core arrangement and twisting

Insulated conductors of 2, 3, 4, 5 and 6 core cables twisted in cable core.

For the cables of voltage 3kV - 3 insulated conductors are twisted in a cable core.

Filling or belt insulation

Tape of PET-E film or PVC compound.

Cable sheath or jacket

PVC compound.
