• Model NO.：LX-50-250
• Type：Lx-50-250
• Material Shape：Round Wire
• Conductor Type：Stranded
• Wire Core Material：Sccs
• Certification：CE, ISO, RoHS, CCC, UL
• Model：Lx-50-250
• Brand：Elesun
• Material of Inner Conductor：Sccs, Sc
• Structure of Inner Conductor：1,1.63mm
• Diameter of Insulation：5.30mm
• Outer Conductor Material：Tinned Copper
• Tin Immersion Diameter：6.20mm
• Material of Jacket：FEP
• Diameter of Jacket：7.00mm
• Transport Package：1000m,Reel,CTN
• Specification：29*29*26cm
• Trademark：ELESUN
• Origin：China
• HS Code：8544200000
• Production Capacity：10000m,Day
• Package size per unit product：29.00cm * 29.00cm * 26.00cm
• Gross weight per unit product：15.000kg

Basic Info.

Model NO. LX-50-250 Type Lx-50-250 Material Shape Round Wire Conductor Type Stranded Wire Core Material Sccs Certification CE, ISO, RoHS, CCC, UL Model Lx-50-250 Brand Elesun Material of Inner Conductor Sccs, Sc Structure of Inner Conductor 1/1.63mm Diameter of Insulation 5.30mm Outer Conductor Material Tinned Copper Tin Immersion Diameter 6.20mm Material of Jacket FEP Diameter of Jacket 7.00mm Transport Package 1000m/Reel/CTN Specification 29*29*26cm Trademark ELESUN Origin China HS Code 8544200000 Production Capacity 10000m/Day

Packaging & Delivery

Package size per unit product 29.00cm * 29.00cm * 26.00cm Gross weight per unit product 15.000kg

Product Description

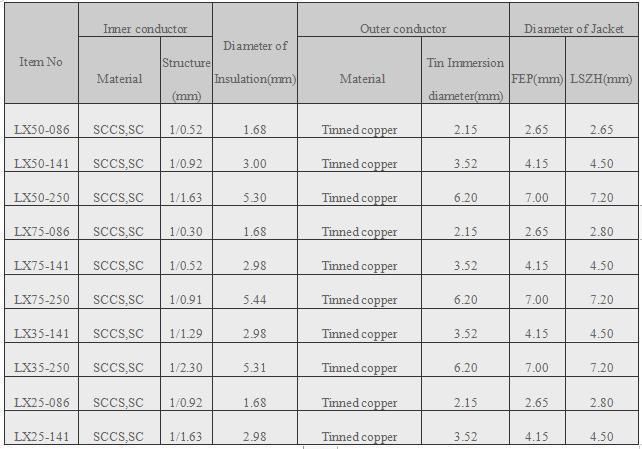

Manufacture high performance semi flexible LX-50-250 solid PE tinned copper braid coaxial cable for wireless equipment Description
.Conductor: SCCS, SC
.Dielectric :PTFE
.Shielding: Tin Immersion
.Jacket:FEP(light brown,blue,red,white,black),LSZH

Typical Application:
Handy-form cable can be used in military, mining, and medical equipment for transmission of signals, if high temperature is required.

Best Feature:
LX series handy-form coaxial cable is semi-flexible, the conductor is SCCS(silver copper clad steel) or SC(silver copper),the dielectric is PTFE, and the shielding is Tin Immersion, as for the jacket, we have FEP and LSZH for your choice.
The attenuation is low even at high frequency (HF),75ohm,50 ohm, 35ohm, 25ohm impedance is available for this type of cable.

Custom Service:
We also supply handy-form coaxial cable assembly with N connector, TNC connectors, BNC connectors
