• Model NO.：ML,H07V-U
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC
• Brand：OEM
• Transport Package：Rolls
• Specification：16AWG to 1000 Kcmil (MCM)
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：50 Kilometer,Month

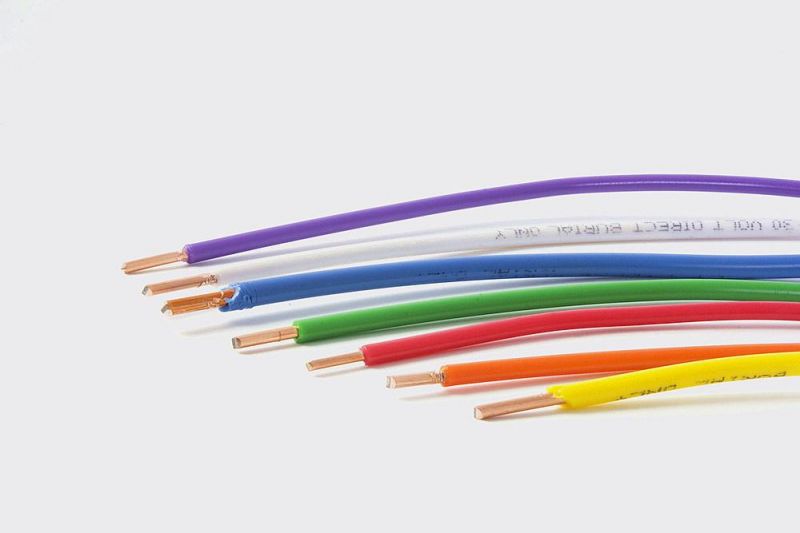

Solid bare copper single wireSolid to DIN VDE 0295 cl-1 and IEC 60228 cl-1Special PVC TI1 core insulationCores to VDE-0293 colors on chartML/H07V-U (16 AWG and Larger)

Technical Characteristics

Working voltage 450/750v (H07V-U/ML)Test voltage2500V (H07V-U/ML)Flexing bending radius15 x OStatic bending radius15 x OFlexing temperature-5 oC to +70 oCShort circuit temperature+160 oCFlame retardantIEC 60332.1Insulation resistance10 MΩ x km

Cable Parameter

AWG	No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Overall Diameter	Nominal Copper Weight	Nominal Weight
	mm2	mm	mm	kg/km	kg/km
20	1 x 0.5	0.6	2.1	4.8	9
18	1 x 0.75	0.6	2.2	7.2	11
17	1 x 1	0.6	2.4	9.6	14
16	1 x 1.5	0.7	2.9	14.4	21
14	1 x 2.5	0.8	3.5	24.0	33
12	1 x 4	0.8	3.9	38.0	49
10	1 x 6	0.8	4.5	58.0	69
8	1 x 10	1.0	5.7	96.0	115

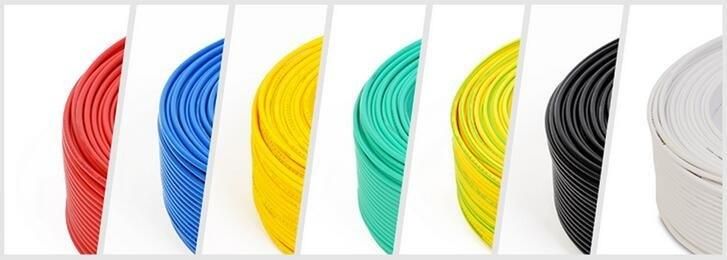

Available Color

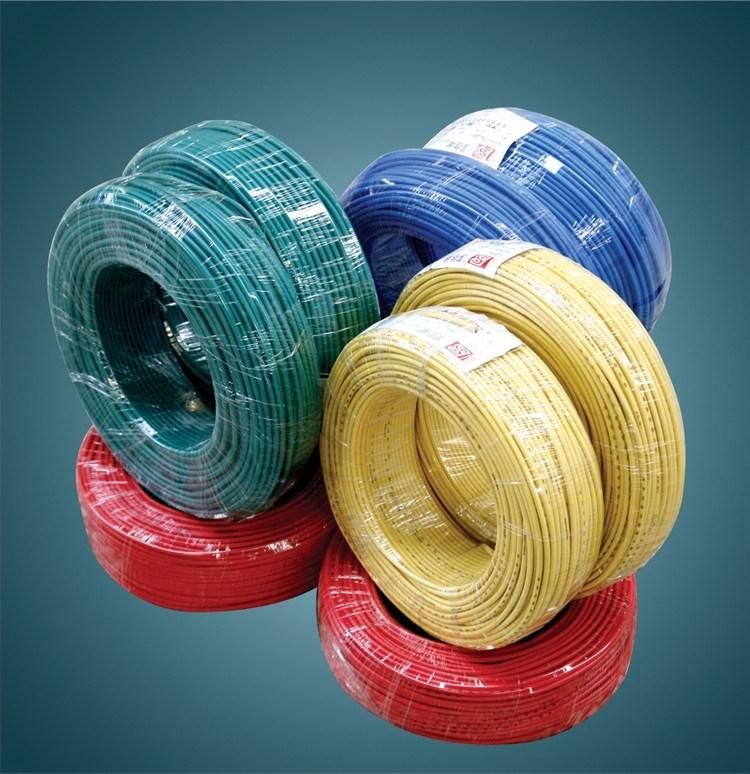

Packing shipping
