BS En50182 Standard All Aluminum Conductor AAC Cable
Guangdong Vango Cable Industry Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead Installation
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：AAC Conductor
- Material Shape：Round Wire
- Range of Application：Overhead Installation
- Certification：ISO9001, ISO9001,ISO14001, CCC, Ce
- Brand：Gdyg
- Warranty：12 Months
- Transport Package：Wooden Reel, Steel Reel
- Specification：10-1500 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600 Tons Per Month
Description
Current carrying capacityWire Cond. mm² mm mm kg/km kN Ω/km N/mm² 1/K A 16-AL1 16 15.9 7 1.70 5.1 43.4 3.02 1.7986 60000 2.30E-05 110 24-AL1 25 24.2 7 2.10 6.3 66.3 4.36 1.1787 60000 2.30E-05 145 34-AL1 35 34.4 7 2.50 7.5 93.9 6.01 0.8317 60000 2.30E-05 180 49-AL1 50 49.5 7 3.00 9.0 135.2 8.41 0.5776 60000 2.30E-05 225 48-AL1 50 48.3 19 1.80 9.0 132.9 8.94 0.5944 57000 2.30E-05 225 66-AL1 70 65.8 19 2.10 10.5 180.9 11.85 0.4367 57000 2.30E-05 270 93-AL1 95 93.3 19 2.50 12.5 256.3 16.32 0.3081 57000 2.30E-05 340 117-AL1 120 117.0 19 2.80 14.0 321.5 19.89 0.2456 57000 2.30E-05 390 147-AL1 150 147.1 37 2.25 15.8 405.7 26.48 0.1960 57000 2.30E-05 455 182-AL1 185 181.6 37 2.50 17.5 500.9 31.78 0.1588 57000 2.30E-05 520 243-AL1 240 242.5 61 2.25 20.3 671.1 43.66 0.1193 55000 2.30E-05 625 299-AL1 300 299.4 61 2.50 22.5 828.5 52.40 0.0966 55000 2.30E-05 710 400-AL1 400 400.1 61 2.89 26.0 1107.1 68.02 0.0723 55000 2.30E-05 855 500-AL1 500 499.8 61 3.23 29.1 1382.9 82.47 0.0579 55000 2.30E-05 990 626-AL1 625 626.2 91 2.96 32.6 1739.7 106.45 0.0464 55000 2.30E-05 1140 802-AL1 800 802.1 91 3.35 36.9 2228.3 132.34 0.0362 55000 2.30E-05 1340 1000-AL1 1000 999.7 91 3.74 41.1 2777.3 159.95 0.0291 55000 2.30E-05 1540
Main feature:
Type: Bare
Conductor Type: Stranded
Application: Overhead Transmission Line
Conductor Material: Aluminum
Sheath Material: Bare
Insulation Material: Bare
Model No: AAC Conductor
Material Shape: Round Wire
Range of Application: Overhead Installation
Certificate: ISO9001,ISO14001, CCC, CE
Brand Name: GDYG
HS Code: 7614100000
Feature: Simple Construction, Easy Installation, Excellent Electric and Mechanical and Conductive etc
Specification: 10mm2 - 1500mm2
Supply Record: African countries, Arabian countries, Asian countries etc.
Origin: Guangdong, China

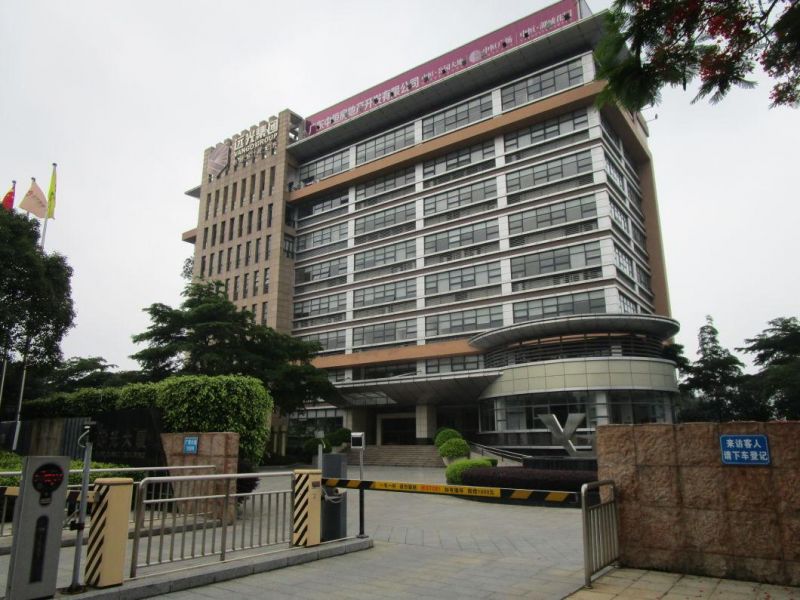

Our company:

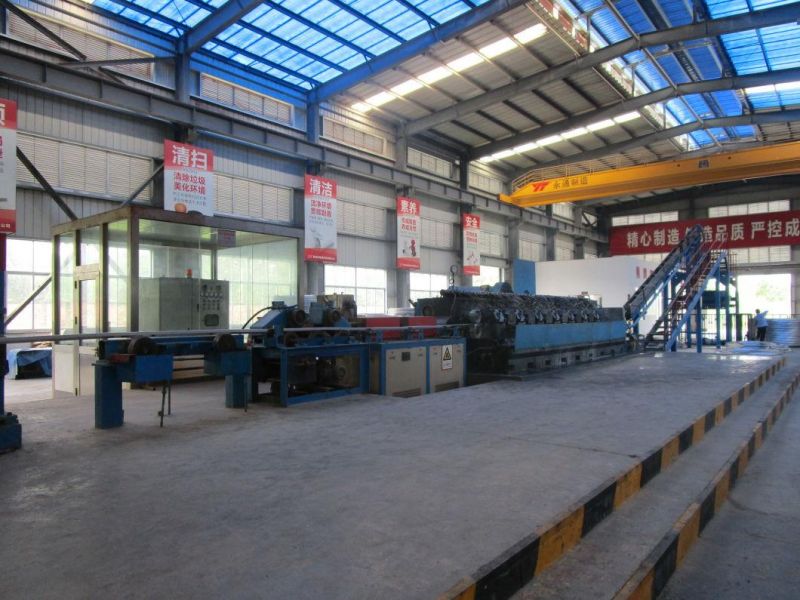

Workshop:
Certificates:
Customers:
