• Model NO.：PABC-BE28
• Wire Core Material：Aluminium Wire
• Certification：ISO, CCC, CE, SGS
• Model：Pabc-Be28
• Brand：Yifang
• Standard：ASTM B
• Transport Package：Wooden Drum
• Specification：4,0awg to 1,0awg
• Trademark：Yifang
• Origin：China
• HS Code：8544609000
• Production Capacity：3000km Per Month

Basic Info.

Model NO. PABC-BE28 Wire Core Material Aluminium Wire Certification ISO, CCC, CE, SGS Model Pabc-Be28 Brand Yifang Standard ASTM B Transport Package Wooden Drum Specification 4/0awg to 1/0awg Trademark Yifang Origin China HS Code 8544609000 Production Capacity 3000km Per Month

Product Description

 1Application
Used as secondary overhead distribution cable at voltages of 600V or less phase to phase and at conductor temperatures not to exceed 90°C for crosslinked polyethylene (XLP) insulated conductors.

Standards

• ASTM B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• ASTM B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• ASTM B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• ASTM B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
• Meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

Construction
Conductors are concentrically stranded, compressed 1350-H19 aluminum, insulated with crosslinked polyethylene (XLP). Neutral messengers are either 6201 aluminum alloy or ACSR. The phase conductors are paralleled with the neutral messenger, and bound together with binder wire (1350-H19 aluminum alloy, #10, covered with high density polyethylene). Multi-conductor cables incorporate stripes or ridges for phase identification.

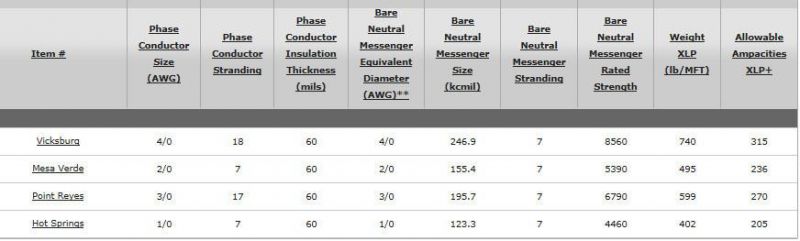

Notes
**Designated sizes are: ACSR 6/1 diameter equivalent resistivity per ASTM B-399 for 6201.

+Ampacity figures for black insulation only (gray will vary slightly).
Conductor temperatures of 90°C for XLP; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.




The above data is approximate and subjected to manufacturing tolerance.

SERVICING

Purpose:
To establish and maintain a procedure for performing and verifying that our service meets specified requirements and that a suitable method of feedback exists from the customer back to the appropriate individual or department within YIFANG.

Scope:
YIFANG does not currently have any contracts that obligate the company to provide installation or service above and beyond normal product service and delivery.  Service activity not specified by contract (such as the treatment of a customer complaint) shall be determined and performed free of charge on a case by case basis. Service concerns will be recorded and will provide a feed-back system as required by the customer.
