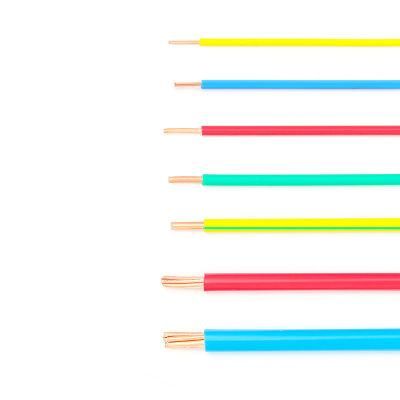

16-32AWG UL1061 Hook up Wire Manufacturer
B&T (Zhangzhou) Cable Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:for General Purpose Internal Wiring of Appliance
- Conductor Material:Copper
- Insulation Material:PVC
- Material Shape:Round Wire
Base Info
- Model NO.:UL1061
- Range of Application:Flame Retardant
- Certification:ISO9001, UL, RoHS, Reach
- Brand:B&T
- Rated Temperature:80 ºC
- Rated Voltage:300V
- According to:UL Subject758, UL1581, C22.2
- Test:Passes UL VW-1 & CSA FT1 Vertical Flame Test
- Performance:for General Purpose Internal Wiring of Appliance
- Conductor:Stranded, Tinned or Bare Copper Conductor
- Capacity:300,000km Annual
- Color:Could Be Customized Color
- Delivery Time:7-15days
- Package:Coil or Spool Packing
- Transport Package:610feet in Roll
- Specification:UL1061
- Trademark:B&T
- Origin:Xiamen, Fujian
- HS Code:8544492100
- Production Capacity:300, 000km
Description
Maximum Resistance at 20ºC
Ω/kmAWG No./mm Dia.
mm Nom. Thick.
mm Nom.Dia.
mm 30 7/0.1 0.3 0.26 0.82 354 28 7/0.127 0.38 0.26 0.9 223 26 7/0.16 0.48 0.26 1 139 24 11/0.16 0.61 0.27 1.15 88.9 22 17/0.16 0.76 0.26 1.28 57.5 20 26/0.16 0.94 0.26 1.46 34.6 18 41/0.16 1.18 0.26 1.7 23.3 16 26/0.254 1.49 0.26 2.02 15.1
Ω/km
mm
mm
mm
