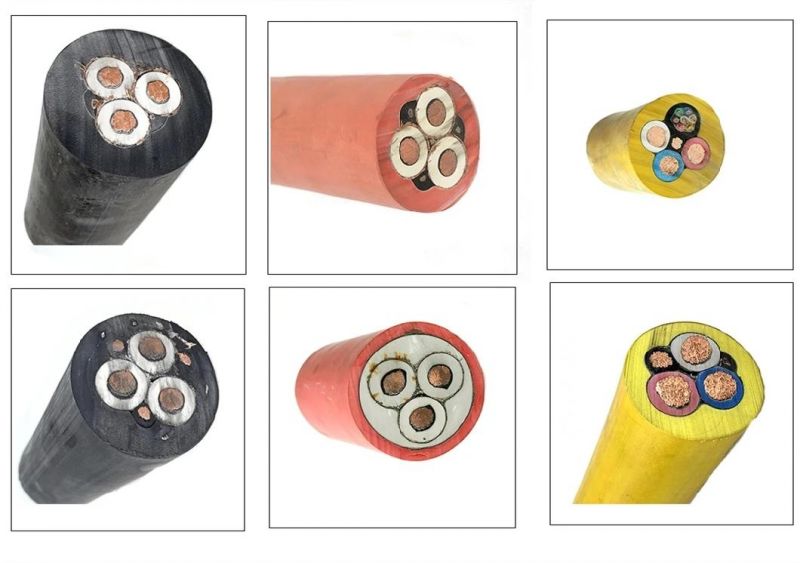

PVC Mine Cable IEC 53 (YZ) Common Use Rubber Sheath Electricl Mining Coal Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Underground, Indoor Fixed Installations in Dry Locations
- Conductor Material：Copper
- Sheath Material：Rubber
- Insulation Material：Rubber
Base Info
- Model NO.：Electricl Cable
- Material Shape：Round Wire
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Rate Voltage：450,750V
- OEM：Yes
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：copper,pvc
- Trademark：Feiya
- Origin：China
Description
Application
Mainly used in power transmission between power supply and frequency converter.
Power cables for rated voltage 0.6/1kV variable frequency motor is fit for AC rated voltage 0.6/1kV frequency conversion control system as the main loop of the power supply cable or connecting cable.
Flame retardant frequency conversion power cable except having features of ordinary frequency cable,also has not easy to catch fire or fire off combustion limited within a certain range of features.
Low smoke zero halogen flame retardant frequency conversion power cables in addition to a common frequency cable, the features of ordinary flame retardant frequency cable, also has the cable fire when no halogen acid gas release, less smoke, less corrosive gases, flame retardant performance is good wait for a characteristic.
Type and Designation
| Type | Designation |
| BPYJVP BPYJLVP | Cu/Al core XLPE insulation copper wire braided shielded PVC sheathed transformer frequency cable |
| BPYJVP2 BPYJLVP2 | Cu/Al core XLPE insulation copper tape wrapped shield PVC sheathed transformer frequency cable |
| BPYJVP3 BPYJLVP3 | Cu/Al core XLPE insulation Al/plastic compound film wrapped shield PVC sheathed transformer frequency cable |
| WDZ-BPYJVP WDZ-BPYJLVP | Cu/Al core XLPE insulation copper wire braided shielded polyolefine sheathed low-smoke halogen-free flame-retardant transformer frequency cable |
| WDZ-BPYJVP2 WDZ-BPYJLVP2 | Cu/Al core XLPE insulation copper tape wrapped shield polyolefine sheathed low-smoke halogen-free flame-retardant transformer frequency cable |
| WDZ-BPYJVP3 WDZ-BPYJLVP3 | Cu/Al core XLPE insulation Al/plastic compound film wrapped shield polyolefine sheathed low-smoke halogen-free flame-retardant transformer frequency cable |
| BPGGP | Cu/Al core silica rubber insulation copper wire braided shielded silica rubber sheathed transformer frequency cable |
| BPGGP2 | Cu/Al core silica rubber insulation copper tape wrapped shield silica rubber sheathed transformer frequency cable |
| BPGGP3 | Cu/Al core silica rubber insulation Al/plastic compound film wrapped shield silica rubber sheathed transformer frequency cable |
