• Model NO.：6381y cable
• Wire Core Material：Bare Copper Wire
• Certification：CCC, CE
• Model：6381y Cable
• Brand：OEM
• Rated Voltage：450,750V, 0.61kv
• Transport Package：Wooden Drum
• Specification：1.5mm2 to 400mm2
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：500 Kilometer,Month

Bare copper conductorStranding to BS6360 Class 5 or IEC60228 Class 5PVC insulation Type TI1 to BS7655PVC sheath Type TM1 to BS7655oxygen index> 30%Meets requirements for flammability as required by BT specification M231

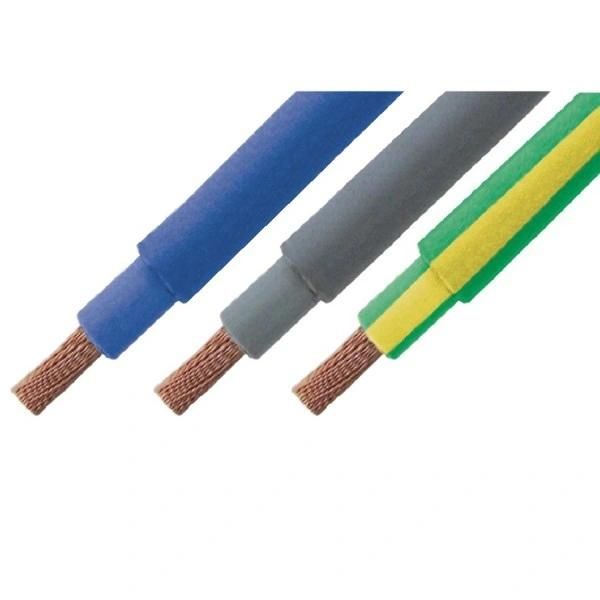

 Core Identification

Blue (Blue), Grey (Grey), Green/Yellow (Green/Yellow), Brown (Brown), Special colours to order

 Technical Characteristics

Working voltage1.0mm^2 to 35mm^2 - 450/750V to BS 6004 50mm^2 and above - 600/1000V to BS 6346Minimum bending radiusup to 50 mm^2 : 3xoverall diameter 70mm^2 and above: - 4xoverall diameterOperating temperature-15 oC to +70 oCInsulation resistance10 MΩxkmFlame retardantIEC 60332.1, BS4066 Part 1

 Cable Parameter

AWG (No of Strands/Strand Diameter)No. of Cores x Nominal Cross Sectional AreaNominal Thickness of InsulationNominal Overall DiameterNominal Copper WeightNominal Weight#xmm^2mmmmkg/kmkg/km16(30/30)1x1.50.90.84.93614(50/30)1x2.50.90.85.45212(56/28)1x410.96.37610(84/28)1x61.10.97.61008(80/26)1x101.218.61606(128/26)1x161.219.82304(200/26)1x251.41.111.53402(280/26)1x351.41.112.54401(400/26)1x501.41.415.15412/0(356/24)1x701.41.417.07493/0(485/24)1x951.61.519.110004/0(614/24)1x1201.61.821.61241300MCM (765/24)1x1501.81.823.41523350MCM (944/24)1x18521.825.51942500MCM(1225/24)1x2402.21.828.52514-(1525/24)1x3002.4231.23125-(2013/24)1x4002.62.135.33967-(1769/23)1x5002.82.238.85063-(2257/23)1x6302.82.443.86491

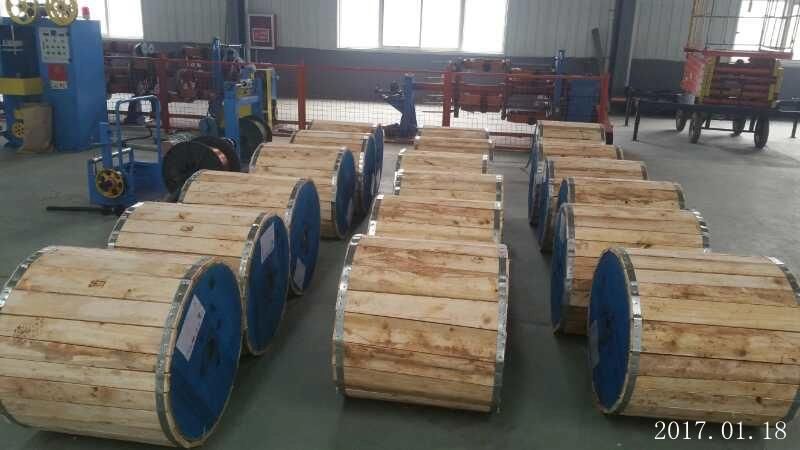

Packing shipping

Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.

Any problem and inquiry pls contact with Vivian Yuan
