• Model NO.：cat5e
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, ETL,CPR
• Brand：Risun or OEM
• Insulation：HDPE
• UV, Jelly, Fr：Available
• Ripcord：Yes
• Color：Multiple-Choice
• Transport Package：305m,Pull Box, 2boxes,CTN.
• Specification：ETL, RoHS, SGS, ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

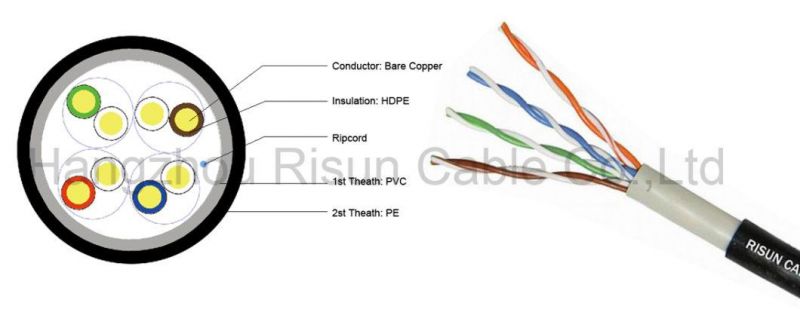

Construction

Conductor

24AWG   BC/CU/CCA/CCS

Insulation

HDPE 0.91±0.02mm

Cores/Pairs

8/4

Sheath

5.1±0.1mm PVC (FR,RoHS,UV)/ LSOH / PE

Mechanical Properties

Elongation

Min. 300%

Temperature Range

-20 up to +75°C

Tensile strength

Min. 1.68Kg/mm2

Electrical Properties (at 20°C)

Conductor Resistance

Max. 9.38 ohm/100m

Resistance Unbalance

Max. 2%

Insulation Resistance

150 ohm/KM

Mutual Capacitance

Max. 5600pF/100m

Cpacitance Unbalance

Max. 330pF/100m

Impendance

100±15 ohm

Spark Test

2000V

Velocity Propagation

67%

Technical Data

Attenuation

RL

Next

PS Next

(MHz)

(db/100m)

(db)

(db)

(db/100m)

4MHz

4.1

23

56.3

53.3

8MHz

5.8

24.5

51.8

48.8

10MHz

6.5

25

50.3

47.3

16MHz

8.2

25

47.2

44.2

20MHz

9.3

25

45.8

42.8

25MHz

10.4

24.3

44.3

41.3

31.25MHz

11.7

23.6

42.9

39.9

62.5MHz

17.0

21.5

38.4

35.4

100MHz

22.0

20.1

35.3

32.3

FAQ

Q1: What is the MOQ order ?
A1: MOQ is 10000meters.
If you have different and special demands, please contact with us, we'll provide the best solutions to you.

Q2: How to shipping? Is there cheap shipping cost to import to our country ?
A2:The best choice is shipping By sea. Because network cable is very heavy, it's too expensive by air.

By Sea: If you have freight forwarder, they can handle shipping for you. If you don't have it, we can provide the cheapest shipping cost to you, or send our freight forwarder information to you contact directly.

Q3. How to know recycle and new jacket materials ?
A3: Except for conductor price, the jacket materials is the main factors affecting price. Some supplier's price is crazy, because they use recycle materials in production.
Recycle material: The jacket will have bubble, especially tenacity is very bad, it's easy to tear. So the cable's lifetime is short, fire retardant & cold resistance is bad too.
New material: Tenacity is very good, it's hard to tear, and with good fire retardant & cold resistance.

Q4: Can you make OEM ?
Yes, we can supply OEM service to our international clients. It can be marking your brand or any printing that you want. Except for international famous brand.
