• Model NO.：Control Cable
• Wire Core Material：Tinned Wire
• Certification：CE, ISO, RoHS, CCC, ETL,CPR
• Model：Control Cable
• Brand：Risun or OEM
• Insulation：PVC
• Conductor：7,0.2mm Tc
• Drain Wire：7,0.2mm Tc
• Screen：Polyester Tape,Al Foil
• Sheath：PVC
• Transport Package：100m,Plastic Reel, 305m,Pull Box, 500m,Wooden Reel
• Origin：Hangzhou, Zhejiang, China
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Model NO. Control Cable Wire Core Material Tinned Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Model Control Cable Brand Risun or OEM Insulation PVC Conductor 7/0.2mm Tc Drain Wire 7/0.2mm Tc Screen Polyester Tape/Al Foil Sheath PVC Transport Package 100m/Plastic Reel, 305m/Pull Box, 500m/Wooden Reel Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

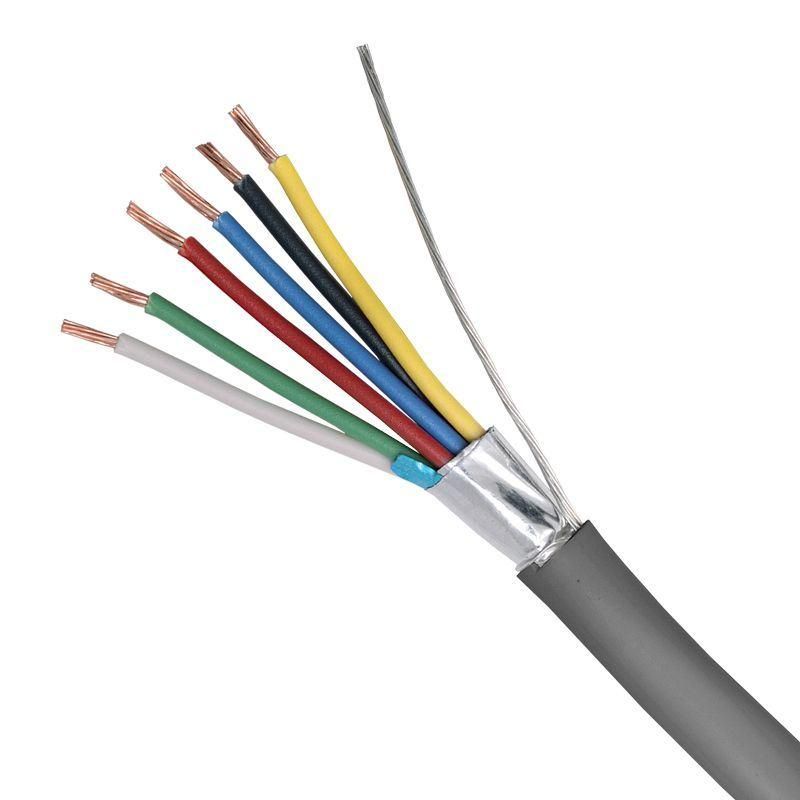

7/0.20 mm Tinned Copper Conductors, PVC Insulated, Cabled, Aluminium Laminate Screened,
PVC Jacketed, 6 Core Security, Alarm, Instrumentation and Serial Communications Cable.construction:

conductor	24awg (7/0.20mm) TC
insulation	PVC 1.2±0.02mm
Drain Wire	7/0.20mm TC
Screen	Al. Polyester Tape
sheath	5.5±0.1mm PVC
cores	6

Mechanical Properties:

Operating Temp Range	-15 to 70°C
Max. Recommended Pulling Tension	92N
Min Bend Radius (Install)	55mm

electrical properties:

Voltage Rating	ELV
Max. Conductor DC Resistance @ 20°C	95.3Ω/km
Min. Insulation Resistance @ 20°C	50MΩ.km
Voltage Test: Conductor to core	1.5 kV ac/1min
Voltage Test: Core to sheath	3.0 kV ac/1min

Application

For use in the communications, industrial and security sectors, This product can be used to interconnect DTE equipment such as Printers, fax's, modems, and consoles. In the industrial environment, this product can be used to connect instruments and sensors to data loggers, PLC's and other control equipment. In the security market, this product can be used to connect motion sensors, entry sensors, card readers and door strikes to monitoring units. Not suitable for direct connection to mains equipment.


packing

1) packing lengths:100m/Plastic Reel,305m/Pull Box, 500m/Wooden Reel, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.

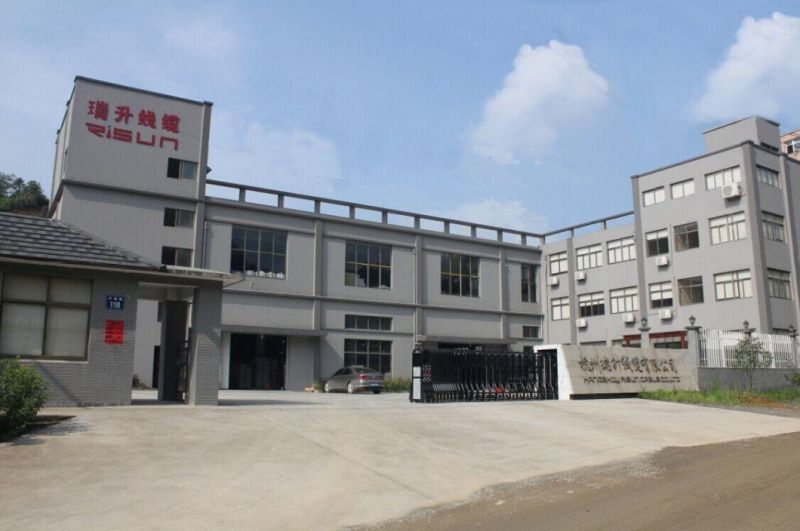

Company Profile

Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and  telephone cable in china. 95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.In the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.

We are committed to providing you with high-quality and competitive products.We will be your trusted partner.

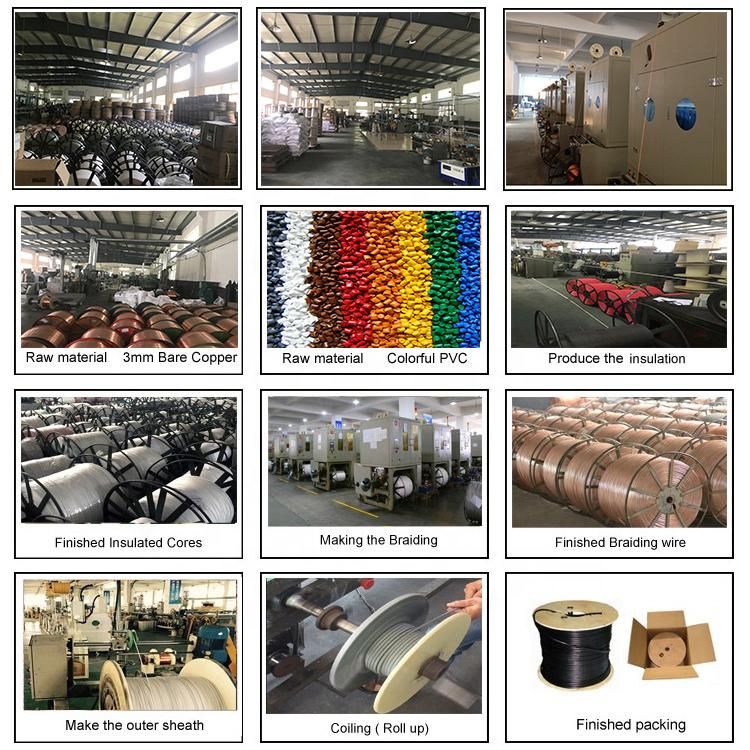

process of production:
Welcome to RISUN,we will be happy to serve you!
