2 Core 18 AWG Shielded Multi Conductor Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Material Shape：Round Wire
  • Conductor Type：Stranded
  • Wire Core Material：Bare Copper Wire

Base Info

  • Certification：CE, ISO, RoHS
  • Color：Red , Black
  • Inner Conductor：18 AWG
  • Nom. Thick：1.6mm
  • Export Length：100m,Roll, 305m,Drum
  • Pairs：1 Pairs
  • Transport Package：Carton Box, Pallet
  • Specification：2 Core 18 AWG Shielded Multi Conductor Cabl TC PVC
  • Trademark：Risun
  • Origin：Zhejiang, China
  • HS Code：8544491100
  • Production Capacity：30000boxes,Month

Description

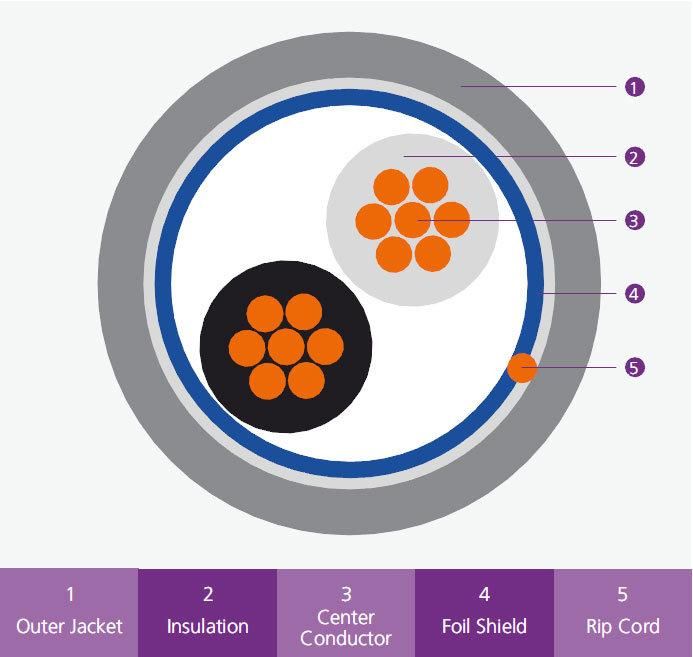

ConductorShielding Outer  JacketBare Copper100% Aluminum Foil Polyester TapePE/PVC(Polyvinyl Chloride)/LSZHInsulation

Rip Cord

Jacket ColorPE(High Density Foam Polyethylene)NylonGrey

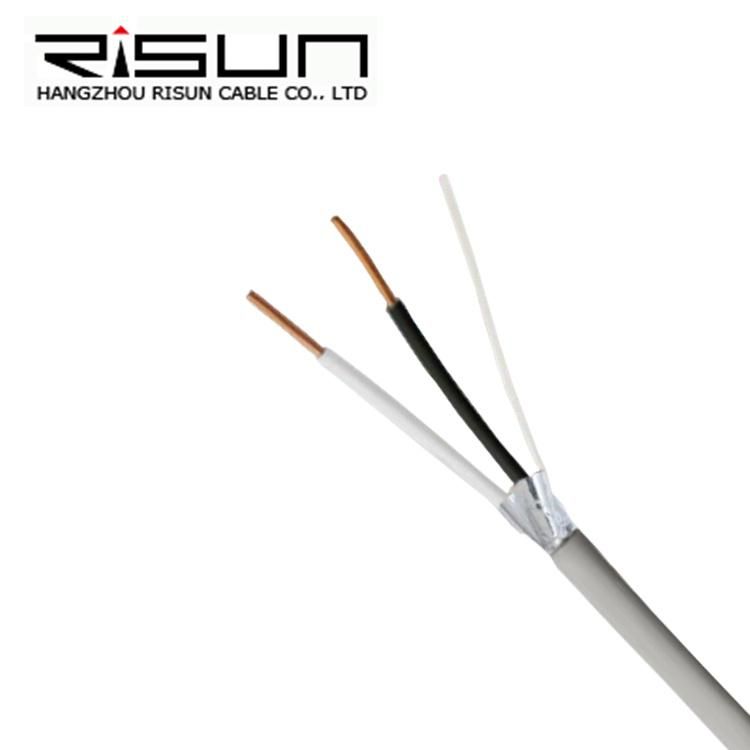

2 Core 18 AWG Shielded Multi Conductor Cable
2 Core 18 AWG Shielded Multi Conductor Cable



PHYSICAL CHARACTERISTICS
CharacteristicValue
No.of conductor2
Conductor Size 18AWG 7*26AWG (7*0.4mm)
Insulation Diameter1.8mm
Rip CordNylon
Jacket Thickness0.45mm
Jacket Diameter4.50mm
Max.Recommended Pulling Tension255N
Min.Bending Radius Minor Axis32.8mm
Operating Temperature-10°C to +60°C

Electrical  Characteristics
CharacteristicUnitValue
Nom.Conductor DCRΩ/km21.3
Nom. Capacitance Cone.to Cond.& ShieldpF/m311.7
Dielectric Strength between PairsKV/5min1.5
Nom. Capacitance Cond. to Cond.pF/m173.9
Max. Operating VoltageV rms300

Mechanical Characteristics
CharacteristicValue
Test MaterialPVC/LSZH
Before Tensile Strength (Mpa)≥ 13.8
Aging Elogation(5%)≥ 100
After Tensile Strength(Mpa)≥ 10.35
Aging Elongation(%)≥ 75
Cold Bend (-20±°C x 4 hrs)No Crack

Insulation Colour Code
Individual PairColour
Core1White or Clear
Core2Black
 2 Core 18 AWG Shielded Multi Conductor Cable

Application:

2 Core 18 AWG Shielded Multi Conductor CableCompany Introduction
2 Core 18 AWG Shielded Multi Conductor Cable
2 Core 18 AWG Shielded Multi Conductor Cable


Packing:

2 Core 18 AWG Shielded Multi Conductor Cable


2 Core 18 AWG Shielded Multi Conductor Cable

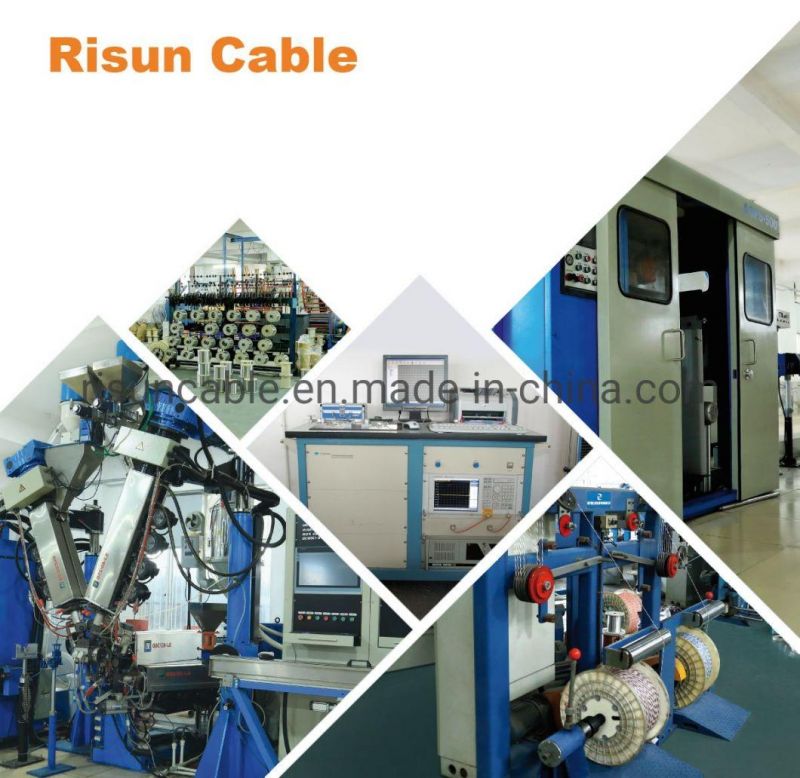

Production line:
2 Core 18 AWG Shielded Multi Conductor Cable


FAQ

Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

A: We are factory.


Q2. HOW LONG IS YOUR DELIVERY TIME?

A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

A: Normally, 10kms per one specification and one color


Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


Q5. HOW TO PROCEED AN ORDER FOR CABLES?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.

Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .
