• Model NO.：Alarm Cable
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CCC, ETL,CPR
• Model：6 Core Alarm Cable
• Brand：Risun or OEM
• Insulation：PVC
• Sheath：PVC
• Conductor：7,0.2mm Stranded Cu
• Screen：Unscreened
• Transport Package：100m,Coil, 305m,Relex Box, 500m,Wooden Drum
• Origin：Hangzhou, Zhejiang, China
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Model NO. Alarm Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Model 6 Core Alarm Cable Brand Risun or OEM Insulation PVC Sheath PVC Conductor 7/0.2mm Stranded Cu Screen Unscreened Transport Package 100m/Coil, 305m/Relex Box, 500m/Wooden Drum Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

3 Pair 6 Core Burglar Alarm Cable

Multicore PVC Intruder and Security System Wire Ideal for Wiring Door and Roller Shutter Contacts, PIR and Dual Tech Sensors, Bell Boxes, Keypads, Bells, Beam Sensors, Vibration Sensors, Connecting Digital Communicators and Dual Path Devices such as Red Care or Dualcom Units.

0.22mm² copper conductor size
6 Core cable (3 Pair) with Industry standard colour coding - Red, Yellow, Black, Blue, Green & White coloured cores as indicators
Plain annealed high quality copper conductors both Insulated and Sheathed with PVC.
Suitable for Burglar Alarm and Extra low voltage applications, up to a maximum voltage of 50V RMS and maximum current of 1A

Serial No.	Section	Specification	Qverall Diameter(mm)
RS-01	2*0.2mm2	2*1/0.50	3.00
RS-02	4*0.2mm2	4*1/0.50	3.50
RS-03	6*0.2mm2	6*1/0.50	4.20
RS-04	8*0.2mm2	8*1/0.50	4.50
RS-05	10*0.2mm2	10*1/0.50	5.30
RS-06	12*0.2mm2	12*1/0.50	5.50
RS-07	16*0.2mm2	16*1/0.50	6.00
RS-08	24*0.2mm2	24*1/0.50	7.30

Package

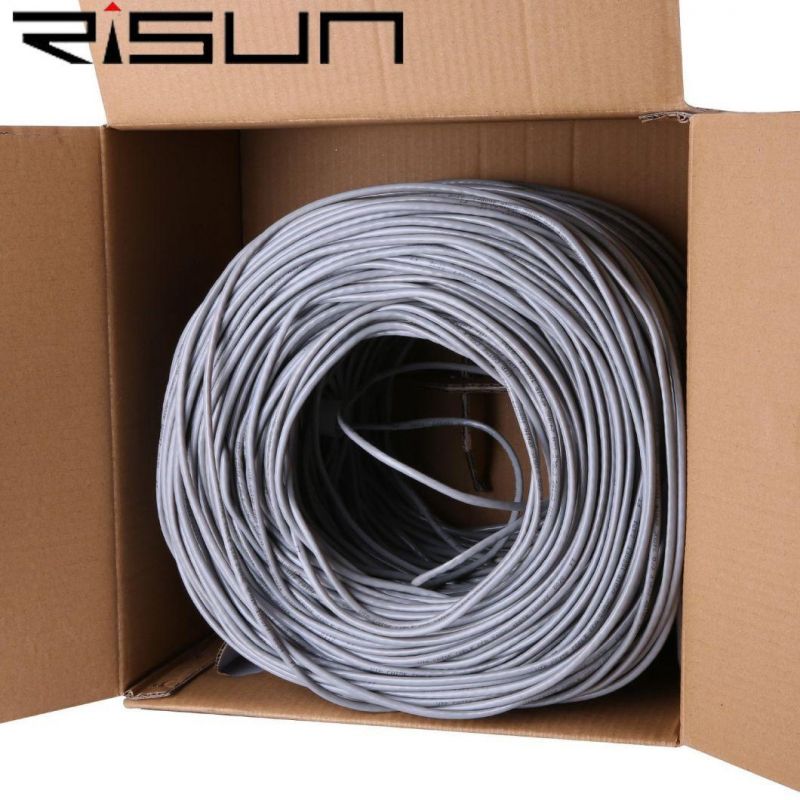

100m/coil,305m/relex box,500m/wooden drum or according to your request





 Company Profilerisun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
