• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS
• Model：SFTP CAT6
• Brand：Risun or OEM
• Color：Black
• Inner Conductor：23AWG
• Nom. Thick：0.6mm
• Export Length：100m, Cardboard Cable+Pallet
• Pairs：4 Pairs
• Transport Package：Pull out Box, Carton Box, Pallet
• Specification：0.56cu, 1.35HDPE, 7.9 PE
• Trademark：Risun
• Origin：Zhejiang, China
• HS Code：8544491100
• Production Capacity：30000boxes,Month

SpecificationConductor23AWG  Bare CopperInsulation1.35±0.05mmCores/Pairs8/41st shieldEach pair Aluminum foil shielded2 st Shield≥40% Tinned CopperSheath7.5±0.3mm PE

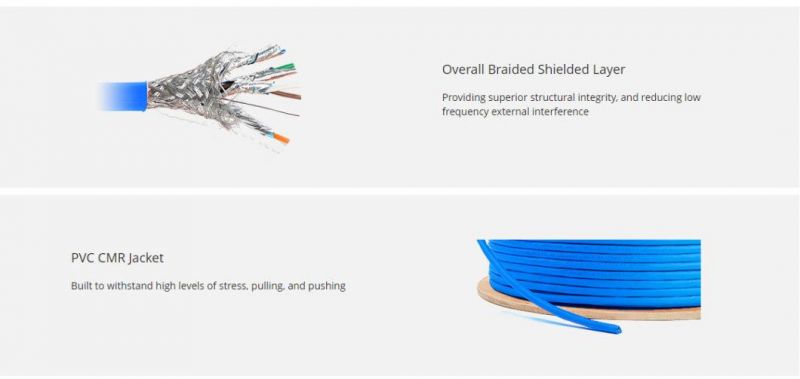

Our Risun Cat6a SF/FTP outdoor cable is designed with FULL COPPER 24AWG twisted pairs and each pair of cores foil shielded as well as a foil braid to reduce interference and cross talk.

The weatherproof UV Resistant PE sheath allows the cable to be outdoors without eroding over time. Suitable for burying underground mounting to buildings or installing indoors. The 8mm copper cable is more rigid than previous revisions of network cable but easy to install.

Our range of Cat6a cables run much faster Cat 6 or Cat5 cables but are backwardly compatible. They have double shielding to eliminate cross talk and interference. Referred to as SF/STP under the sheath lies a foil Braid and then underneath this each twisted pair is also inside a foil shield. Perfect for the latest in 4K TVs Gaming Consoles Macbooks PC s Laptops Notebooks CCTV Access Points Range Extenders and any other device that uses the RJ45 connection.

The Frequency or MHz indicates how often the signal can pass through the cable. Cat 6a cables have higher frequency at 500Mhz but Cat 6 only has 250Mhz and Cat5e 100Mhz. Overall a Cat 6a cable will allow more bandwidth at a faster rate than the previous cables.

Cat5e Has a speed to 1000 Mbit/s 100mhz
Cat6 Has a speed to 1000 Mbit/s 250mhz
Cat6a Has a speed to 10000 Mbit/s 500mhz


These cables are FULL COPPER which is suitable for POE devices such as Access points WIFI Range extenders CCTV or networking switches that need to carry power via the Ethernet cable to a POE port.


Cat 6a 10 GIG 500Mhz
Shielded SF/FTP Cable
23AWG Full Copper
Outdoor Use
Suitable for burial
UV Resistant
Fluke Tested
Suiatble for POE (Power Over ethernet)

RoHs and Reach Compliant


Application & Certificates:


Company Introduction



FAQ

Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

A: We are factory.


Q2. HOW LONG IS YOUR DELIVERY TIME?

A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

A: Normally, 10kms per one specification and one color


Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


Q5. HOW TO PROCEED AN ORDER FOR CABLES?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.

Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .

            WELCOME TO RISUN!!!
