• Model NO.：40mm 45mm 60mm protective sleeve

Basic Info.

Model NO. 40mm 45mm 60mm protective sleeve

Product Description

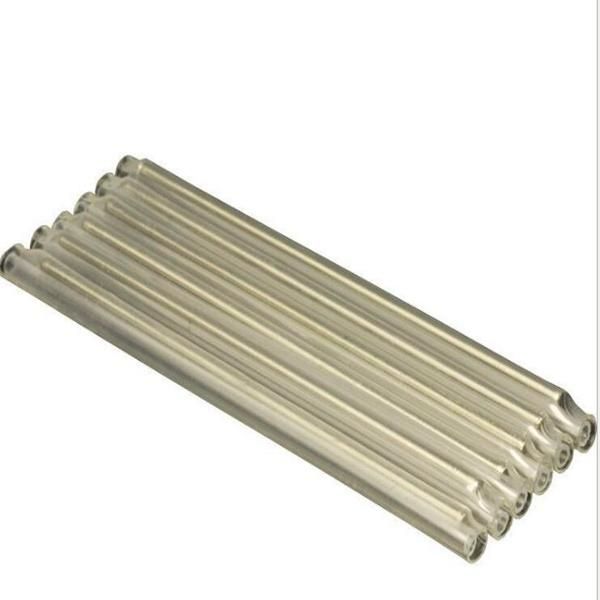

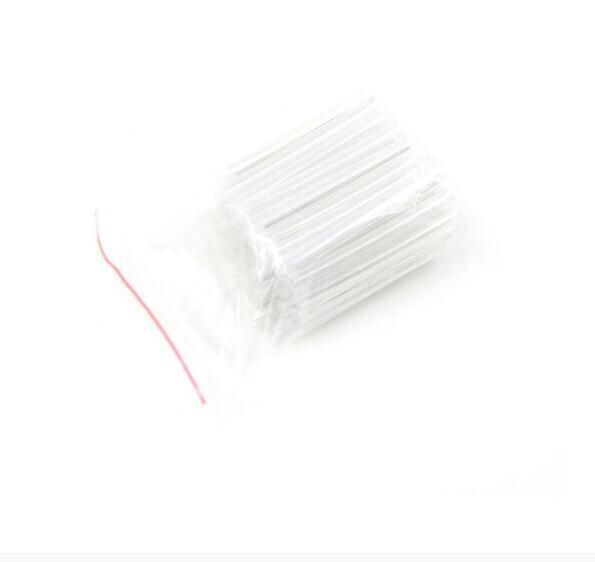

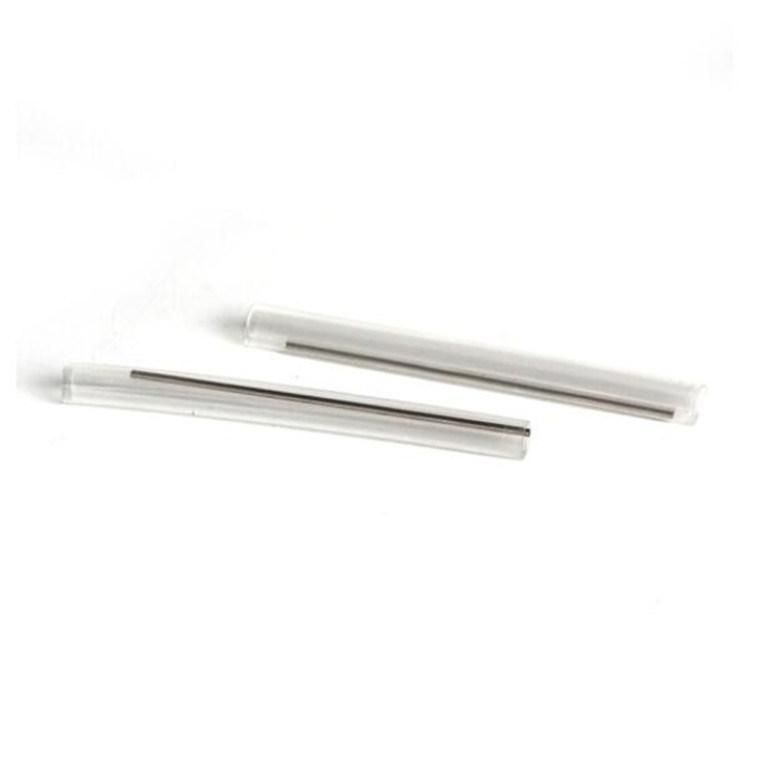

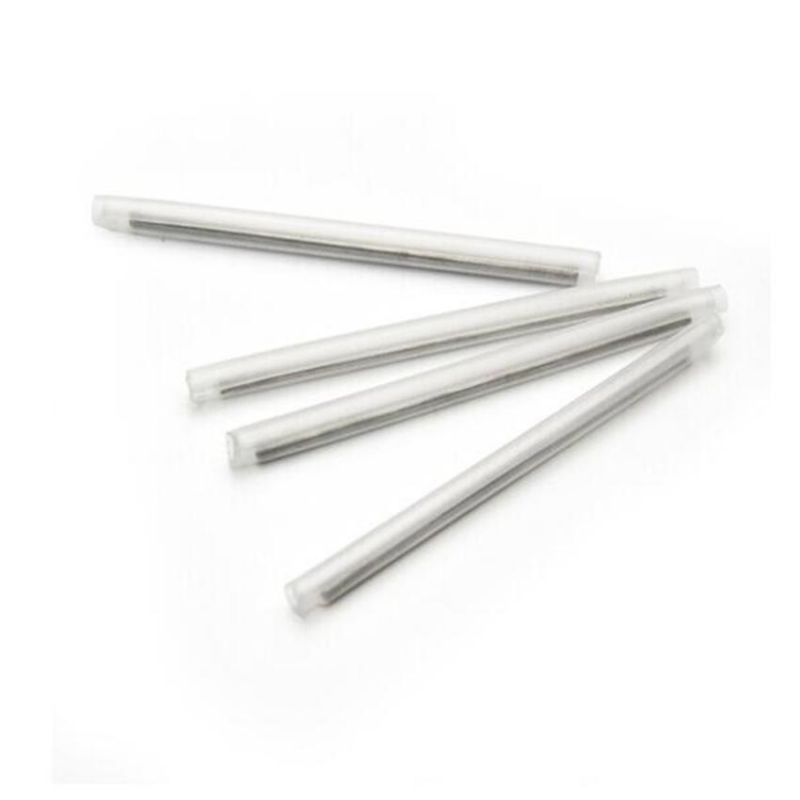

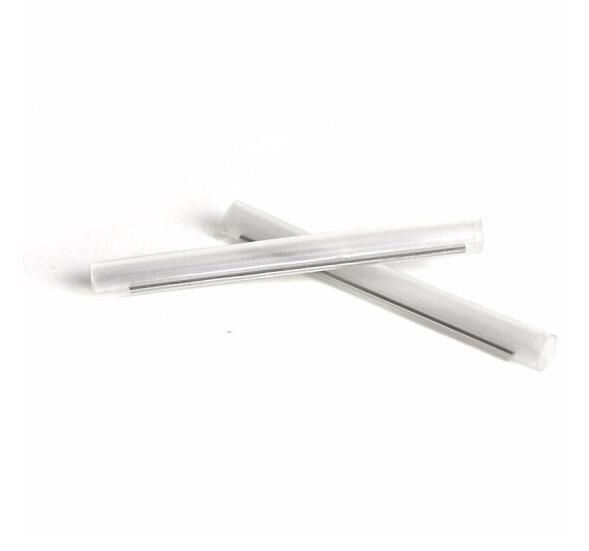

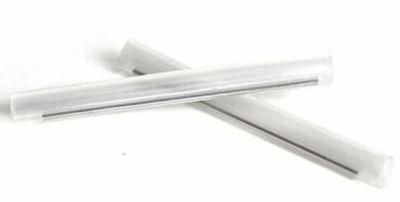

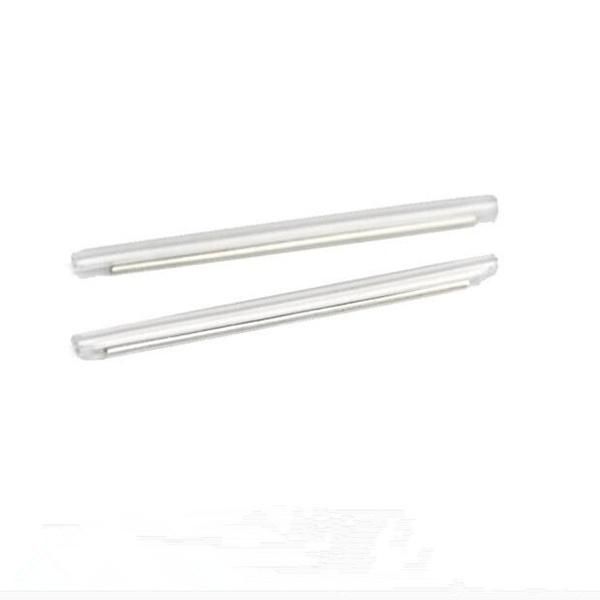

Heat Shrink Fiber Optic Splice Protector Fiber optic fusion protective sleeve





Description:

Fiber optic Protective Sleeve is applied to protection fiber optical splice. It is made up of stainless reinforcing steel rod, heat shrinkable tubing and cross linked polyolefin. Rebuild the covering layer of the fiber and provide excellent mechanical strength in the joint. Guarantee good optical transmission performance. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage.





Features:

• Moisture resistant for environmental protection
• Clear sleeve make it easy to detect splice before shrinkage
• Easily use and avoid any damages to the optical fiber during installation
• Color optical fiber splice protector is very convenience for installation



Operating Temperture Range:

• Operating temperature : -45°c~100°c / -45°c ~135°c
• Minimum shrink temperature : 80°c
• Minimum fully recovery temperature : 120°c

Aplications:

• Optical fiber distribution frame
• Optical fiber closure
• Optical fiber termination box

Shrinking Temperature (°C)	110 ~ 130
Radial Shrinking Rate (%)	>50
Axial Shrinking Rate (%)	<10
Low Temperature Property	No crackle at -55°C lasting 4 hours
Normal Operation Temperature (°C)	-55°C ~ + 135°C
Normal Operature Relative Humidity	≤95%
Spark- over Strength (kV/mm)	≥20
Tensile Strength (Mpa)	20
Loss at -40°C	0.03dB
Loss at +60°C RH95%	0.02dB
