• Model NO.：UL5256
• Material Shape：Round Wire
• Range of Application：Heating
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE, According to The Customers′ Requirement
• Brand：Fongming
• Name：UL5256 Cable
• Ratings：600V, 250deg.C
• Size：24AWG~8AWG
• Color：as Requirements
• Test：Electric Spark Testing
• Certification No：E315207
• Test Voltage：2500V
• Colour：Requirement
• Conductor：Nickel, Nickel Copper
• Insulation：PTFE Tape
• Transport Package：100m, 200m or 305m Per Roll. Carton Packing.
• Specification：24awg~8awg
• Trademark：FONGMING
• Origin：Yangzhou, Jiangsu Province, China.
• HS Code：8544492100
• Production Capacity：100000000m Per Year

Basic Info.

Model NO. UL5256 Material Shape Round Wire Range of Application Heating Certification ISO9001, CE, UL, CCC, RoHS, VDE, According to The Customers′ Requirement Brand Fongming Name UL5256 Cable Ratings 600V, 250deg.C Size 24AWG~8AWG Color as Requirements Test Electric Spark Testing Certification No E315207 Test Voltage 2500V Colour Requirement Conductor Nickel, Nickel Copper Insulation PTFE Tape Transport Package 100m, 200m or 305m Per Roll. Carton Packing. Specification 24awg~8awg Trademark FONGMING Origin Yangzhou, Jiangsu Province, China. HS Code 8544492100 Production Capacity 100000000m Per Year

Product Description

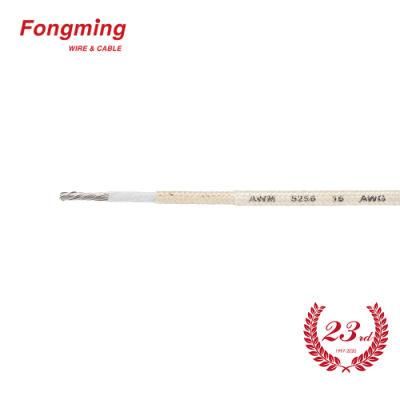

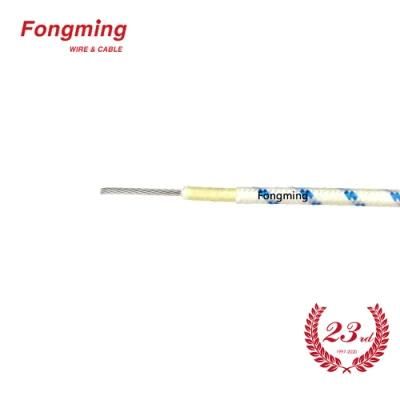

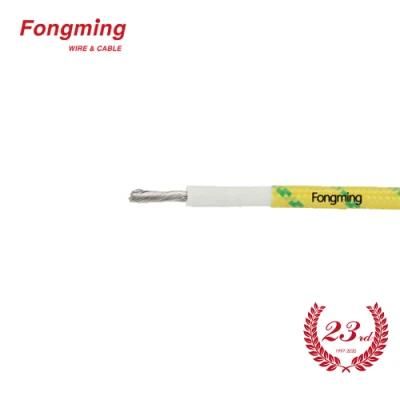

600V 250C UL5256 0.5mm2 0.75mm2 1.0mm2 1.5mm2 fire resistant wire

Description
Name: 600V 250C UL5256 0.5mm2 0.75mm2 1.0mm2 1.5mm2 fire resistant wire
Model No.: AWM5256
Size: 24AWG~8AWG

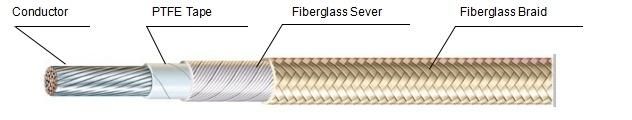

Feature 600V 250C UL5256 fire resistant wire
Ratings: -60ºC~+250ºC, 600V
Conductor: Nickel Copper, Nickel
Insulation: Teflon tape
Jacket: Fiberglass braid with high temperature finish

Application
Used for internal wiring of household ovens, appliances, lighting fixtures and electronic equipment as high-temperature lead wire.


Specification

Size AWG	Conductor Structure	Insulation Thickness (mm)	Fiberglass Serve Thickness (mm)	Fiberglass Braid Thickness (mm)	Diameter (mm)
24	7/0.2	>=0.18	>=0.10	>=0.28	1.8±0.2
22	7/0.254				1.9±0.2
20	10/0.254				2.1±0.2
18	16/0.254				2.3±0.2
16	26/0.254	>=0.28			2.7±0.2
14	41/0.254				3.0±0.2
12	65/0.254				3.5±0.2
10	103/0.254				4.4±0.2
8	163/0.254				5.4±0.2
