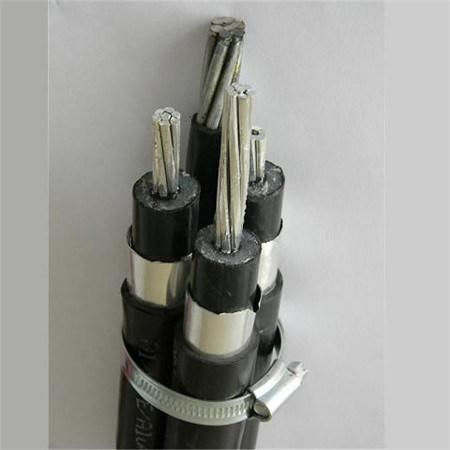

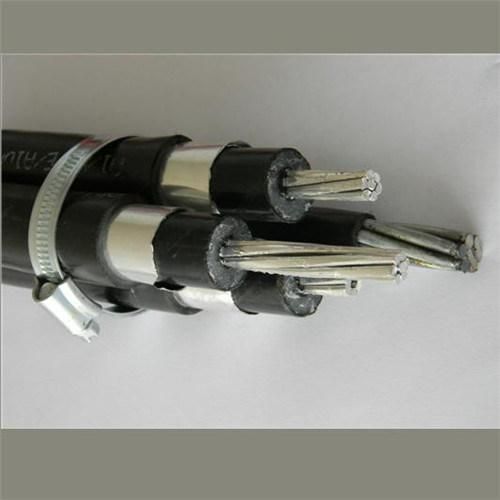

Longitudinally Aluminum Tape Shielded XLPE Insulated HDPE Jacket Power Cables

YIFANG ELECTRIC GROUP INC.

Application：Construction, Overhead, Underground, Industrial, Power Station
Voltage：Low and Medium Voltage Cable
Current：DC & AC
Insulation Material：XLPE
Sheath Material：HDPE
Material Shape：Round Wire

Base Info

Model NO.：Power Cables
Wire Core Material：Al
Certification：ISO, CCC, CE, RoHS, UL, VDE, KEMA
Model：Overhead Cable
Brand：Yifang Cable
Cores：3 Core or 3 Core with Neutral Messenger Wire
Standard：NFC 33226
Color：Black
Armour：Longitudinally Aluminum Tape
Transport Package：Steel Drum
Specification：3x1x150
Trademark：Yifang cable
Origin：China
HS Code：8544601200
Production Capacity：3000km,Year

Description

Construction characteristicsConductor flexibilityStranded class 2Conductor shapeCircular stranded (RM)Material of the inner semi-conductorExtrudedInsulationXLPE (chemical)Material of the external semi-conductorExtruded strippable grooved elastomerMaterial used for longitudinal water tightnessSwelling powderScreenLongitudinal aluminium tapeMechanical characteristicsCable flexibilityRigid
Longitudinally Aluminum Tape Shielded XLPE Insulated HDPE Jacket Power Cables

Longitudinally Aluminum Tape Shielded XLPE Insulated HDPE Jacket Power Cables

Longitudinally Aluminum Tape Shielded XLPE Insulated HDPE Jacket Power Cables

Longitudinally Aluminum Tape Shielded XLPE Insulated HDPE Jacket Power Cables
