Favorable 23 AWG CAT6 Direct Burial Shielded Solid Copper with Dry Gel Tape Outdoor Bulk Ethernet Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Cat 6
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CPR
- Model Number：FTP Cat6e
- Number of Conductors：8
- Inner Conductor：23AWG Bc,CCA
- Drain Wire：26AWG Tinned Copper
- Shield：with Aluminium Foil
- Nom. Thick：0.6mm
- Export Length：100m,Roll, 200m,Roll, 305m,Roll
- Pairs：4 Pairs
- Sheath：PE
- Color：Black
- O.D：7.50mm
- Transport Package：Pull out Box, Carton Box, Pallet
- Specification：0.56cu, 1.12HDPE&1.23FPE, 7.5 PE
- Trademark：Risun
- Origin：Zhejiang, China
- HS Code：8544491100
- Production Capacity：30000boxes,Month
Description
Basic Info.
Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CPR Model Number FTP Cat6e Number of Conductors 8 Inner Conductor 23AWG Bc/CCA Drain Wire 26AWG Tinned Copper Shield with Aluminium Foil Nom. Thick 0.6mm Export Length 100m/Roll, 200m/Roll, 305m/Roll Pairs 4 Pairs Sheath PE Color Black O.D 7.50mm Transport Package Pull out Box, Carton Box, Pallet Specification 0.56cu, 1.12HDPE&1.23FPE, 7.5 PE Trademark Risun Origin Zhejiang, China HS Code 8544491100 Production Capacity 30000boxes/MonthProduct Description
Favorable 23 AWG CAT6 Direct Burial Shielded Solid Copper with Dry Gel Tape Outdoor Bulk Ethernet CableReference Standards IEC 61156-5; ANSI/TIA-568-C.2

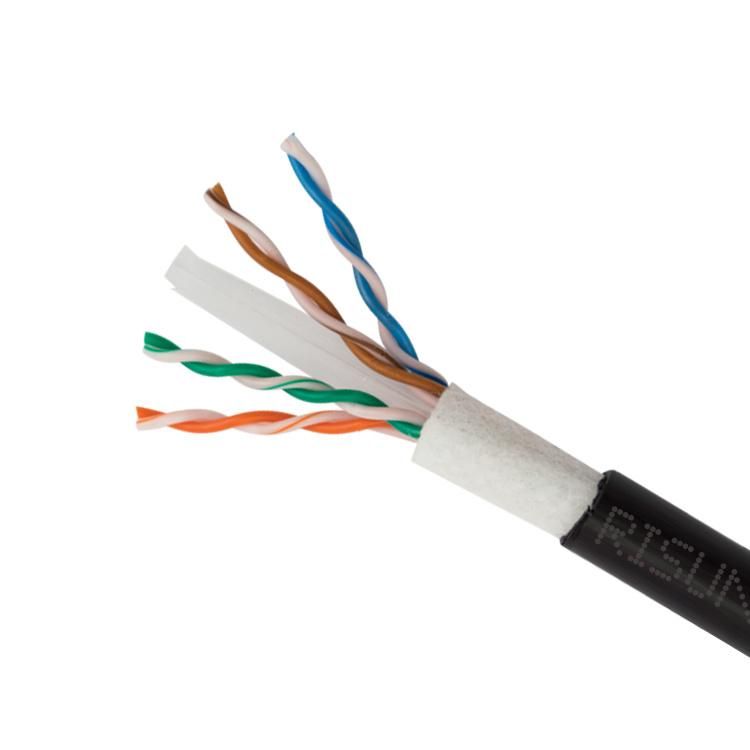

Construction Conductor Solid plain annealed bare copper wire 0.56 +-0.015 mm (AWG23) Insulation Orange, Brown pair Polyethylene, 1.12 +/-0.05 mm Blue, Green pair Foam PE, 1.23 +/-0.05 mm Twisting 4 twisted pair, 2 cores to the pair, Twisted pair color code: 1: white / blue 2: white-orange / orange 3: white / green 4: white-brown / brown Cable lay up 1. 4 pairs with different pitches 2. Non-metallic cross separator (spine) Shielding Waterblock Tape as shield, Mechanical Properties
Bending radius >= 4xOD without load
>= 8xOD with load Temperature range,
during operation -20°C up to 60°C during installation 0°C up to 50°C Electrical Properties (at 20°C ± 5°C) DC resistance max. 9.38 Ω / 100 m at 20 °C Resistance unbalance max. 2 % at 20 °C Insulation resistance (500V) min. 5000 MΩ/Km at 20 °C Mutual capacitance nom. 5.1 nf / 100 m at 1 kHz Capacitance unbalance (pair to ground) max.160 pf / 100 m at 1 kHz Nominal velocity of propagation nom. 67 % Test voltage (DC, 1 min) 1 kV / 1 min
Transmission Performance acc. to IEC 61156-5 Cat.6 (at 20°C)
Frequency(MHz) | Attenuation (dB)Max. | NEXT (dB)Min. | PSNEXT(dB)Min. | ACRF (dB)Min. | PSACRF (dB)Min. |
| 4 | 3.8 | 66.3 | 63.3 | 56.0 | 53.0 |
| 10 | 6.0 | 60.3 | 57.3 | 48.0 | 45.0 |
| 16 | 7.6 | 57.2 | 54.2 | 43.9 | 40.9 |
| 20 | 8.5 | 55.8 | 52.8 | 42.0 | 39.0 |
| 31.25 | 10.7 | 52.9 | 49.9 | 38.1 | 35.1 |
| 62.5 | 15.5 | 48.4 | 45.4 | 32.1 | 29.1 |
| 100 | 19.9 | 45.3 | 42.3 | 28.0 | 25.0 |
| 125 | 22.5 | 43.8 | 40.8 | 26.1 | 23.1 |
| 200 | 29.1 | 40.8 | 37.8 | 22.0 | 19.0 |
| 250 | 33.0 | 39.3 | 36.3 | 20.0 | 17.0 |
Application & Certificates:

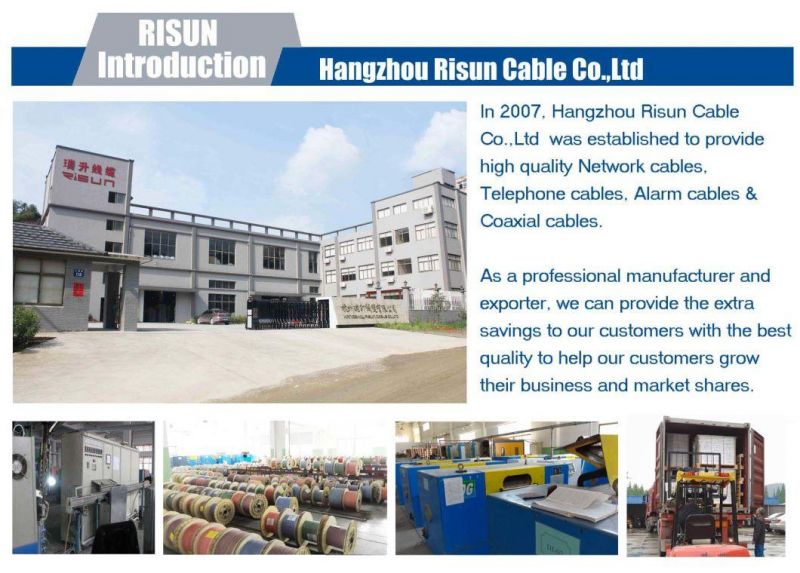

Company Introduction

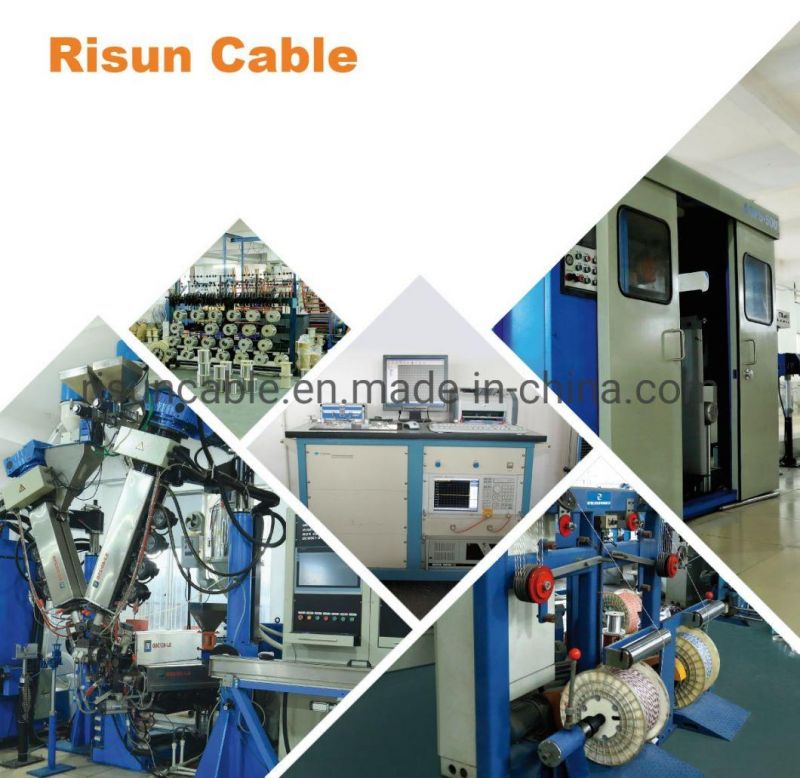

production line:

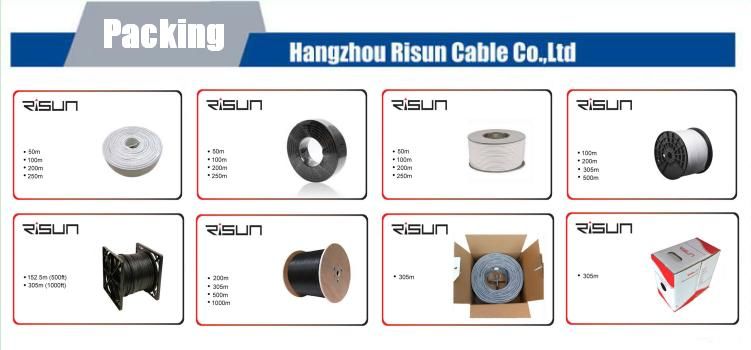

Packing
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
