• Model NO.：10mm

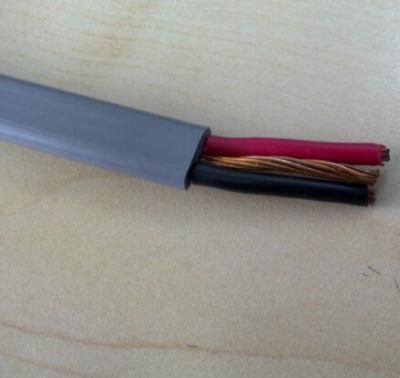

• Material Shape：Flat Wire
• Range of Application：Domestic and Industrial Wiring
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Yifang
• Rated Voltage：450,750V
• Alternative Standard：AS,NZS 5000,2:1999,Bs6004
• Cores Number：2 Insulated Core+1bare Core
• Sectional Area：10.0mm2
• Insulation Color：Red and Black
• Sheath Color：Gray
• Overview Type：Flat
• Transport Package：Wooden Drum
• Specification：ISO CE SABS
• Trademark：Zhengzhou Yifang Cable Co., Ltd.
• Origin：Henan, China
• HS Code：8544492100
• Production Capacity：300km,Month

Type
H05VVH2-U, H07VVH2-R, H05VVH2-F, H05VVH4-U, H07VVH4-R, H05VVH4-F, BS6004 624*Y, BVVB
Voltage  Rate
300/500V, 450/750V
Cores
2C, 3C, 2C+E, 3C+E
Range of Nominal cross section:
0.75 mm2 ~ 16 mm2
Application
These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.
Standard
IEC60227, BS6004, GB/T5023, JB/T8734
Constructions
Conductor: Class 1/2 annealed bare copper solid or strands
Insulation: PVC
Sheath: PVC
Core color: White, Grey or others on request
Max. Operating Temperature
70ºC, can be90ºC and 110ºC as per requirement
Packing
100 meter/roll or as per requirement
Production Capacity
100 kilometer/ day
MOQ
10000 meters for small size, 5000 meters for middle size, 1000 meters for big size
Delivery time
10~15 working days
Remark
The cable can be of flame retardance, fire resistance and other property
