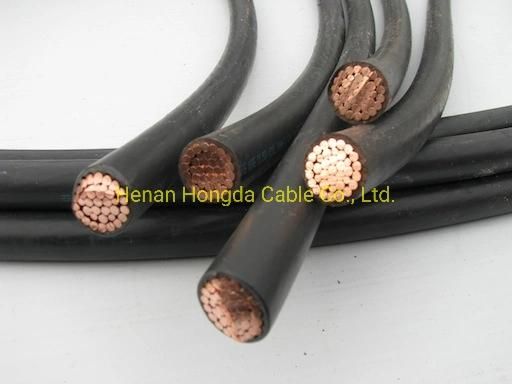

Copper Conductor Unipolar Cable Insulated Xhhw-2 600V 1 X (1X350kcmil)

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Overhead, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：No Sheath
  • Material Shape：Round Wire

Base Info

  • Model NO.：XHHW-2
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC
  • Model：Xhhw Xhhw-2
  • Brand：OEM
  • Conductor Type：600 V Copper Conductor
  • Insulation Type：Cross-Linked Polyethylene Insulated Wire
  • Rated Voltage：600V
  • Transport Package：Wooden Drum
  • Specification：2.5~400sqmm
  • Trademark：OEM
  • Origin：China(Mainland)
  • HS Code：8544492100
  • Production Capacity：1000 Kilometer,Month

Description

 SizeStrandingInsulation ThicknessOverall DiameterWeightAmpacity at 90C * AWG (inches)(inches)LBS/1000' CU-XHHW-141470.0300.1301815CU-XHHW-121210.0300.1412420CU-XHHW-101010.0300.1472630CU-XHHW-121270.0300.1623720CU-XHHW-101070.0300.1714030CU-XHHW-8870.0450.2326555CU-XHHW-6670.0450.2689675CU-XHHW-4470.0450.31114795CU-XHHW-3370.0450.337183115CU-XHHW-2270.0450.367227130CU-XHHW-1170.5500.412291145CU-XHHW-1/01/0190.5500.449363170CU-XHHW-2/02/0190.5500.489453195CU-XHHW-3/03/0190.5500.536565225CU-XHHW-4/04/0190.5500.588706260CU-XHHW-250250370.6500.653835290CU-XHHW-300300370.6500.703995320CU-XHHW-350350370.6500.7491155350CU-XHHW-400400370.6500.7921314380CU-XHHW-500500370.6500.8691633430CU-XHHW-600600610.8000.9791965475CU-XHHW-700700610.8001.0402282520CU-XHHW-750750610.8001.0712440535CU-XHHW-10001000610.8001.2233229615
