1000FT CAT6 UTP 250MHz Solid PVC Ethernet Network Cable

Hangzhou Risun Cable Co., Ltd.

Application：Local Communication Cable, LAN Cable
Conductor Material：Copper
Cover Material：PVC,PE,LSZH
Type：Cat 6
Material Shape：Round Wire
Conductor Type：Solid

Base Info

Model NO.：UTP Cat6
Wire Core Material：Tinned Wire
Certification：CE, ISO, RoHS, ETL SGS CPR
Brand：Risun or OEM
23AWG：305m
UTP CAT6：Network Cable
RJ45 Cable：Patch Cord
Transport Package：305m,Pull Box, 2boxes,CTN.
Specification：ETL, CE, RoHS, SGS, ISO9001
Trademark：RISUN
Origin：Hangzhou, Zhejiang, China(Mainland)
HS Code：8544491100
Production Capacity：20000 Boxes , Month

Description

ConstructionConductor23AWG (Solid or Strand) CU/CCAInsulationHDPE 1.04 ± 0.06mmCores/Pairs8/4Sheath6.30+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PE

Mechanical Properties
Elongation	Min. 300%
Temperature Range	-20 up to +75° C
Tensile strength	Min. 1.68Kg/mm2

Electrical Properties (at 20°C)
Conductor Resistance	Max. 9.38 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Cpacitance Unbalance	Max. 330pF/100m
Impendance	100+/-15 ohm
Spark Test	2000V
Velocity Propagation	67%

	Attenuation	RL	Next	PS Next
(MHz)	(db/100m)	(db)	(db)	(db/100m)
1MHz	2.0	20	65.3	63.5
4MHz	4.1	23	56.3	54.2
8MHz	5.8	24.5	52.4	50.5
10MHz	6.6	25	51.3	49.2
16MHz	8.2	25	49.3	47.4
20MHz	9.3	25	48.8	46.9
25MHz	10.4	24	45.3	43.4
31.25MHz	11.7	23	43.0	41.8
62.5MHz	17.0	21	39.2	37.2
100MHz	22.0	20	36.3	34.4
155MHz	28.1	19	35.5	33.6
200MHz	32.4	19	31.8	29.9
240MHz	36.0	18	30.6	28.7
300MHz	41.0	18	29.2	27
350MHz	44.9	17	28.0	25.6

Pre：Communication UTP Cat5e Network Cable
Next：Fluke Tested Bulk Cable UTP CAT6 Network Cable

Category

Audio & Video Cable

Communication Cable

Electric Wire & Cable

Other Wire & Cable

Power Cord & Extension Cord

Recommended

Communication UTP Cat5e Network Cable
ConstructionConductor24AWG (Solid or Strand) CU/CCAInsulationHDPE 0.90 ± 0.06mmCores/Pairs8/4Sheath5.00+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PEMechanical PropertiesElongationMin. 300%Temperature Range-20 up to +75° CTensile strengthMin. 1.68Kg/mm2Electrical Properties (at 20°C)Conductor R
4 Pairs UTP Cat5e Network Cable
ConstructionConductor24AWG (Solid or Strand) CU/CCAInsulationHDPE 0.90 ± 0.06mmCores/Pairs8/4Sheath5.00+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PEMechanical PropertiesElongationMin. 300%Temperature Range-20 up to +75° CTensile strengthMin. 1.68Kg/mm2Electrical Properties (at 20°C)Conductor R
4 Pairs UTP Cat5e Cable
ConstructionConductor24AWG (Solid or Strand) CU/CCAInsulationHDPE 0.90 ± 0.06mmCores/Pairs8/4Sheath5.0+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PEMechanical PropertiesElongationMin. 300%Temperature Range-20 up to +75° CTensile strengthMin. 1.68Kg/mm2Electrical Properties (at 20°C)Conductor Re

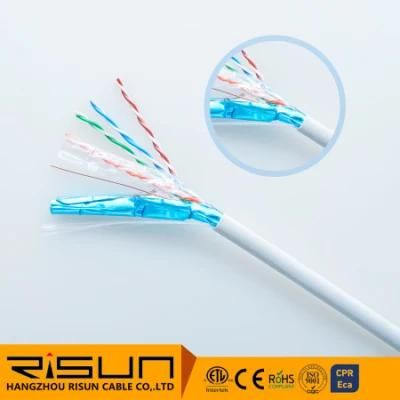

Al Tape Braid Shielded SFTP CAT6 Network Cable
ConstructionConductor23AWG (Solid or Strand) CU/?TC/CCAInsulationHDPE1.35 ± 0.06mmCores/Pairs8/41st ShieldEach pair Aluminum Foil Shielded2nd Shield40% Tinned CopperSheath7.90±0.1mm PVC /LSOH / PEMechanical PropertiesElongationMin. 300%Temperature Range-20 up to +75° CTensile stren
LSZH FTP Cat5e LAN Cable
ConstructionConductor24AWG (Solid or Strand) CU/CCAInsulationHDPE 0.95 ± 0.06mmCores/Pairs8/4Drain wire26AWG Tinned CopperShieldPolyester Tape / Al FoilSheath6.20+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PEMechanical PropertiesElongationMin. 300%Temperature Range-20 up to +75° CTensile strengthMi

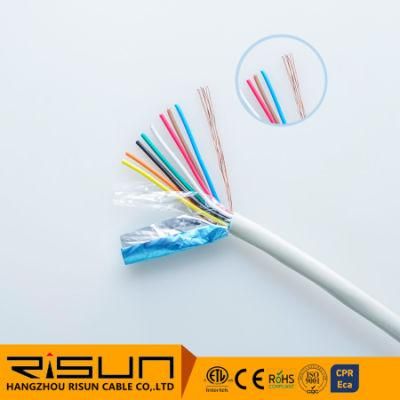

Multi Cores Shielded Alarm Cable with Good Price CPR Approved
