• Model NO.：Power Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：Low, Medium, High Voltage
• Brand：Low, Medium, High Voltage
• Core No：1, 2, 3, 4, 5, 3+1, 4+1, 3+2
• Standard：GB,T 12706-2008, IEC 60502-2005
• Sheath Color：Black or as Request
• Screen：Copper Tape, Copper Wire
• Armor Material：Galvanized Steel Wire, Steel Tape, Copper Tape
• Popular Size：50mm, 95mm, 120mm, 150mm
• Related Voltage：0.6,1kv, 8.7,15kv, 12,20kv, 21-35kv, 36kv
• OEM：Yes
• Business Type：Factory
• Transport Package：Steel-Wooden Drum or as Request
• Specification：0.5-800mm2
• Trademark：KINGYEAR
• Origin：Henan, China
• HS Code：8544492100
• Production Capacity：500km,Month

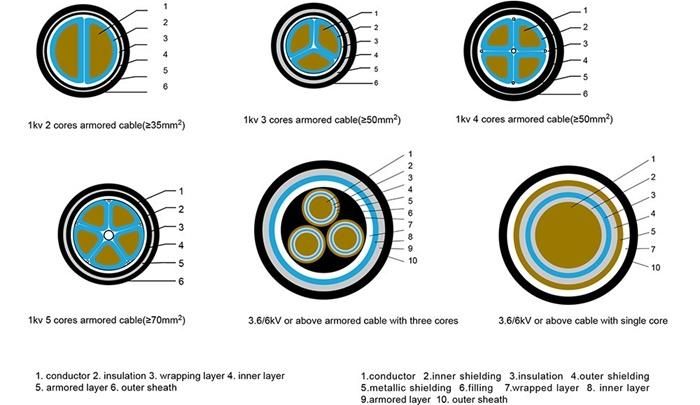

TYPE

NAME

Main Application

CU core

AL core

YJV/YJY

YJLV/YJLY

XLPE insulated,PVC/PE sheathed power cable

For laying indoor ,tunnel,canal and underground.
Unable to bear external mechanical forces,
but bear the traction force during laid

YJV22/YJV23

YJLV22/YJLV23

XLPE insulated,steel tape armored,
PVC/PE sheathed power cable

For laying indoor ,tunnel,canal and underground.
Able to bear external mechanical forces,
but unable to bear large pulling force

YJV32/YJV33

YJLV32/YJLV33

XLPE insulated,thin steel wire armored,
PVC/PE sheathed power cable

For laying in shaft,water underground will large difference of level.
Able to bear external mechanical forces and moderate pulling force

YJV42/YJV43

YJLV42/YJLV43

XLPE insulated,thick steel wire armored,
PVC/PE sheathed power cable

For laying in water and seabed.
Able to bear positive pressure and pulling force

Number of cores:

1core 2core 3core 3+1core 4core 4+1core 4+2core 5core and so on.

Nominal Section
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800

Features:

1). XLPE insulated power cable not only has excellent electric, mechanical properties, but also has powerful resistance against chemical erosion, heat-aging and environmental stress.
2) .Its structures are simple. The long term operating temperature is +90 degrees. It is convenient to use and can be laid with no restriction of different level.
3). Our XLPE cables can be produced according to our specification which is equivalent to IEC 502-1983, and its some indexes are superior to 502-1983.
4). We can design and manufacture special XLPE cable according to the other standards required by the customers.
5).Application: for laying indoor, tunnel, canal and underground.

Specification

Nominal
Cross SectionDiameter of
Conductor
(Approx.)Nominal
Insulation
thicknessNominal Inner
Covering
thicknessNominal
Alum Wire
dia.Nominal
Sheath
thicknessOverall
Diameter
(Approx.)mm²mmmmmmmmmmmm1x42.30.710.81.810.91x62.80.710.81.811.41x103.60.710.81.812.21x164.50.710.81.813.11x255.60.910.81.814.61x356.70.911.251.816.61x508111.251.818.11x709.41.111.251.819.71x95111.111.61.8221x12012.41.211.61.823.61x15013.81.411.61.825.41x18515.31.611.61.827.41x24017.51.711.61.929.91x30019.51.812233.11x40022.621.222.237.31x50025.22.21.222.340.5 Nominal
Cross SectionDiameter of
Conductor
(Approx.)Nominal
Insulation
thicknessNominal Inner
Covering
thicknessNominal
Steel Wire
dia.Nominal
Sheath
thicknessOverall
Diameter
(Approx.)mm²mmmmmmmmmmmm2x1.51.40.710.81.812.82x2.51.80.710.81.813.62x42.30.710.81.814.62x62.80.711.251.816.52x103.60.711.251.818.12x164.50.711.251.819.92x255.60.911.61.823.62x356.70.911.61.825.82x508111.61.9292x709.41.1122 .33.22x95111.11.22.137.12x12012.41.21.222.340.52x15013.81.41.22.52.445.42x18515.31.61.42.520.649.92x24017.51.71.42.520.755.12x30019.51.81.62.520.960.22x40022.621.62.530.167.7 Nominal
Cross SectionDiameter of
Conductor
(Approx.)Nominal
Insulation
thicknessNominal Inner
Covering
thicknessNominal
Steel Wire
dia.Nominal
Sheath
thicknessOverall
Diameter
(Approx.)mm²mmmmmmmmmmmm3x1.51.40.710.81.813.23x2.51.80.710.81.814.13x42.30.710.81.815.23x62.80.711.251.817.13x103.60.711.251.818.93x164.50.711.251.820.83x255.60.911.61.824.73x356.70.911.61.827.23x508111.61.930.63x709.41.1122.135.23x95111.11.222.239.33x12012.41.21.222.3433x15013.81.41.42.52.548.63x18515.31.61.42.52.7533x24017.51.71.42.52.858.53x30019.51.81.62.53643x40022.621.63.153.373.5 Nominal
Cross SectionDiameter of
Conductor
(Approx.)Nominal
Insulation
thicknessNominal Inner
Covering
thicknessNominal
Steel Wire
dia.Nominal
Sheath
thicknessOverall
Diameter
(Approx.)mm²mmmmmmmmmmmmmmmm3x 16/104.53.60.70.711.61.822.73x 25/165.64.50.90.711.61.826.53x 35/166.74.50.90.711.61.9293x 50/2585.610.911.62.1333x 70/359.46.71.10.91.222.2383x 95/501181.111.222.342.43x120/7012.49.41.21.11.222.5483x150/7013.89.41.41.11.42.52.7523x185/9515.3111.61.11.42.52.857.23x240/12017.512.41.71.21.62.53.1643x300/15019.513.81.81.41.62.53.269.8 Nominal
Cross SectionDiameter of
Conductor
(Approx.)Nominal
Insulation
thicknessNominal Inner
Covering
thicknessNominal
Steel Wire
dia.Nominal
Sheath
thicknessOverall
Diameter
(Approx.)mm²mmmmmmmmmmmm4x1.51.40.710.81.8144x2.51.80.710.81.814.94x42.30.711.251.8174x62.80.711.251.818.24x103.60.711.251.820.24x164.50.711.61.8234x255.60.911.61.826.74x356.70.911.61.929.54x5081122.134.24x709.41.11.222.238.84x95111.11.222.342.94x12012.41.21.42.52.548.64x15013.81.41.42.52.753.24x18515.31.61.42.52.858.14x24017.51.71.62.53.164.84x30019.51.81.62.53.270.44x40022.621.83.153.681.3

1). Rated Voltage, No. of Core and Range of Sectional Area

Rated voltage (kv)
Sectional area (mm2)
No. of core1st class0.6/11.8/33.6/66/108.7/1512/2018/3021/352nd class1/13/36/68.7/1012/1518/20-26/351 Core 1.5-80025-80025-120025-120035-120050-120050-120050-12002 Core 1.5-18525-185      3 Core 1.5-40025-40025-40025-40035-40050-40050-40050-4004 Core 2.5-40025-400      5 Core 2.5-40025-400
 2).  DC resistance: conductor resistance of finished cable at 20ºC per kilometer is not more than the following values.Nominal section area (mm²)1.52.54610162535507095120150185240300400500630800Copper core12.17.414.613.081.831.150.7270.5240.3870.2680.1930.1530.1240.0990.07540.06010.0470.03660.02830.0221Aluminum core18.112.17.414.613.081.911.20.8680.6410.4430.320.2530.2060.1640.1250.10.7780.06050.04690.0367
 3). Voltage Test and Partial Discharge TestRate voltage Uo (kv)
Item0.6/11.8/33.6/66/6 6/108.7/10 8.7/1512/2018/20 18/3021/3526/35VoltageTest voltage3.56.512.52130.5426373.591Test time555555555Partial discharge testTest voltage--6.210.415.120.831.136.345Discharge capacity--10101010101010

Packaging
Packing Details  : Packing in wooden drum, iron-wooden drum or as customer's requirement.
Delivery Details : 15-25 days after place an order.
