RoHS PVC 2 Core Shielded Wire Speaker Flexible Signal Cable
B&T (Zhangzhou) Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Hook-up Wire
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：UL-2464
- Wire Core Material：Copper
- Certification：ISO, RoHS, UL, Reach
- Model：UL2464
- Brand：Bort
- Transport Package：Coil
- Trademark：BORT
- Origin：China
- HS Code：8544492900
- Production Capacity：500000km,Per Year
Description
Basic Info.
Model NO. UL-2464 Wire Core Material Copper Certification ISO, RoHS, UL, Reach Model UL2464 Brand Bort Transport Package Coil Trademark BORT Origin China HS Code 8544492900 Production Capacity 500000km/Per YearProduct Description
RoHS PVC 2 Core Shielded Wire Speaker Flexible Signal Cable
★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2

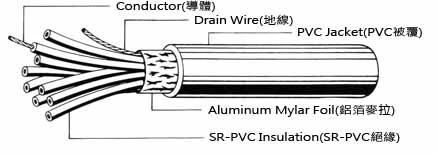

★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Tinned or bare stranded copper drain wire
★Tinned or bare stranded copper wire overall more than 80% coverage braided shield
★PVC jacket
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★Sound broadcast,audio,instrumentation&computer
| AWG/NO.OFCOND | No./mm | mm | m/n/d | mm | mm |
| 24×2C | 11/0.16 | 0.25 | 16/4/0.10 | 0.80 | 4.35 |
| 24×3C | 11/0.16 | 0.25 | 16/4/0.10 | 0.80 | 4.50 |
| 24×4C | 11/0.16 | 0.25 | 16/5/0.10 | 0.80 | 4.80 |
| 24×5C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.10 |
| 24×6C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.45 |
| 24×7C | 11/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.50 |
| 22×2C | 17/0.16 | 0.25 | 16/5/0.10 | 0.80 | 4.75 |
| 22×3C | 17/0.16 | 0.25 | 16/6/0.10 | 0.80 | 4.95 |
| 22×4C | 17/0.16 | 0.25 | 16/6/0.10 | 0.80 | 5.30 |
| 22×5C | 17/0.16 | 0.25 | 16/7/0.10 | 0.80 | 5.65 |
| 22×6C | 17/0.16 | 0.25 | 16/8/0.10 | 0.80 | 6.05 |
| 22×7C | 17/0.16 | 0.25 | 16/8/0.10 | 0.80 | 6.10 |
