• Model NO.：Single Core Aluminium Cable
• Wire Core Material：Aluminium
• Certification：ISO, CCC
• Model：Single Core Aluminium Cable
• Brand：Hongda
• Voltage Rating：600,1000V
• Neutral Screen：None
• Insulation Colour：Red, White, Blue
• Sheath Colour：Black
• Transport Package：Steel & Wooden Drum or Customer Requirement
• Specification：AS,NZS 5000.1
• Trademark：Hongda, accept OEM
• Origin：China
• HS Code：8544492100
• Production Capacity：30km,Days

Basic Info.

Model NO. Single Core Aluminium Cable Wire Core Material Aluminium Certification ISO, CCC Model Single Core Aluminium Cable Brand Hongda Voltage Rating 600/1000V Neutral Screen None Insulation Colour Red, White, Blue Sheath Colour Black Transport Package Steel & Wooden Drum or Customer Requirement Specification AS/NZS 5000.1 Trademark Hongda, accept OEM Origin China HS Code 8544492100 Production Capacity 30km/Days

Product Description

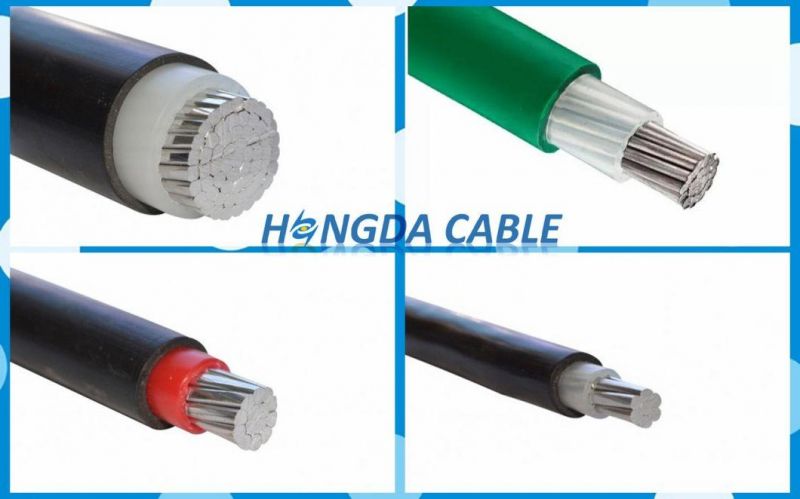

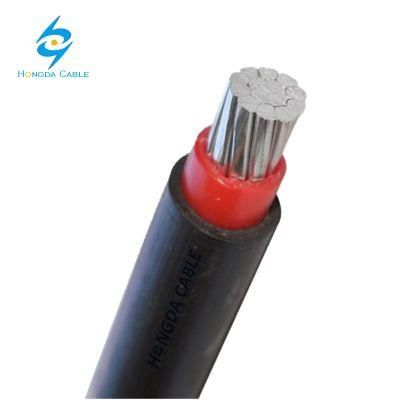

Single Core Aluminium Cables

Description

Al conductor, PVC insulation, PVC sheath. 0.6/1 kV. Made to AS/NZS 5000.1.

Application

• Industrial and commercial applications
• Some domestic applications
• For use in various situations to supply the main power from the point of supply (either single or three phase application) to buildings, equipment, e.g. switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc. Historically used in Power Authority work.

Conforms to AS/NZS 5000.1.

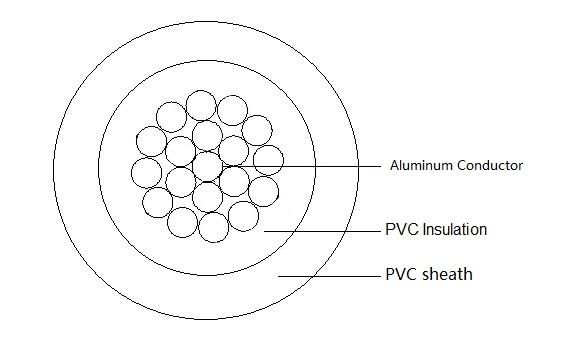

CONSTRUCTION CHARACTERISTICS
Conductor material	Aluminum
Type of conductor	Circular, stranded
Insulation	PVC
Outer sheath	PVC
ELECTRICAL CHARACTERISTICS
Rated Voltage Uo/U (Um)	0.6/ 1 (1.2) kV
USAGE CHARACTERISTICS
Max. conductor temperature in service	75°C



Available Sizes:

CONSTRUCTION

Conductor Code Name	Conductor cross-section  (mm2)	Sheath colour	Nominal overall diameter  (mm)	Approximate weight  (kg/m)	Max. DC resistance of the  conductor at 20°C
Namu	24	Black	11.8	0.19	1.24Ohm/km
Namu	24	Red	11.8	0.19	1.24Ohm/km
Namu	24	Violet	11.8	0.19	1.24Ohm/km
Kutu	49	Black	14.9	0.32	0.612Ohm/km
Kutu	49	Blue	14.9	0.32	0.612Ohm/km
Kutu	49	Red	14.9	0.32	0.612Ohm/km
Kutu	49	White	14.9	0.32	0.612Ohm/km
Beetle	106	Black	19.8	0.57	0.285Ohm/km
Beetle	106	Blue	19.8	0.57	0.285Ohm/km
Beetle	106	Red	19.8	0.57	0.285Ohm/km
Beetle	106	White	19.8	0.57	0.285Ohm/km
Weta	167	Black Black	23.6	0.82	0.181Ohm/km
Weta	167	Red Black	23.6	0.82	0.181Ohm/km

Conductor Code Name	Conductor cross-section  (mm2)	Sheath colour	Nominal overall diameter  (mm)	Approximate weight  (kg/m)	Max. DC resistance of the  conductor at 20°C
/	120	Blue	20.7	0.62	0.253Ohm/km
/	120	Black	20.7	0.62	0.253Ohm/km
/	120	Red	20.7	0.62	0.253Ohm/km
/	120	White	20.7	0.62	0.253Ohm/km
/	185	Blue	25.1	0.92	0.164Ohm/km
/	185	Black	25.1	0.92	0.164Ohm/km
/	185	Red	25.1	0.92	0.164Ohm/km
/	185	White	25.1	0.92	0.164Ohm/km

PACKAGE AND SHIPPING:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size: As per cable length and container size

Shipping:
Port: Tianjin, Qingdao, Shanghai or other ports as per your requirements.

Sea freight:
FOB/C&F/CIF/DAP quotation are all available.


*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact with Vivian Yuan   we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
