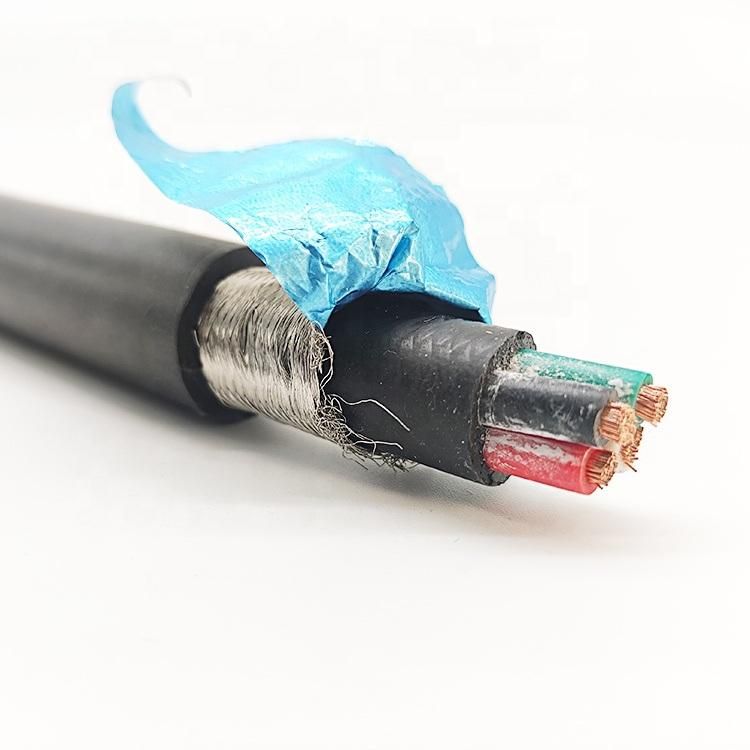

Rz1mz1-K (AS) / Rz1maz1-K (AS) Lsoh Cable Flame Retardant Armoured Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Fixed Installation
  • Conductor Material：Copper
  • Sheath Material：Lsoh Polyolephine
  • Insulation Material：Cross-Linked Polyethylene

Base Info

  • Model NO.：RZ1MZ1-K(AS) , RZ1MAZ1-K(AS) Cable
  • Material Shape：Round Wire
  • Range of Application：LSOH
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemRZ1MZ1-K(AS) / RZ1MAZ1-K(AS) LSOH Cable ConductorFlexible electrolytic annealed copperInsulationCross-linked polyethyleneInner SheathPolyolefinArmourGalvanized steel(for multi-core cables) or aluminum wire(for single-core cables) Outer SheathLSOH polyolephineCore NumberMulticores (As client's requirement)Rated Voltage 600/1000VTest Voltage 2 KVBending Radius10 x ØTemperature Range-15°C to +90°CColorOptionalApplicationThe armoured and halogen free cable is a high security cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended for public places, in hazardous areas with explosive gas atmospheres, and installations in general where the cable is subject to risk of mechanical aggression.
