• Material Shape：Round Wire
• Range of Application：Overhead Line
• Certification：ISO9001, CCC
• Transport Package：Steel-Wooden Drum Packing
• Specification：4C x 50 mm2
• Trademark：Yifang
• Origin：China
• HS Code：8544492100

Basic Info.

Material Shape Round Wire Range of Application Overhead Line Certification ISO9001, CCC Transport Package Steel-Wooden Drum Packing Specification 4C x 50 mm2 Trademark Yifang Origin China HS Code 8544492100

Product Description

Applications

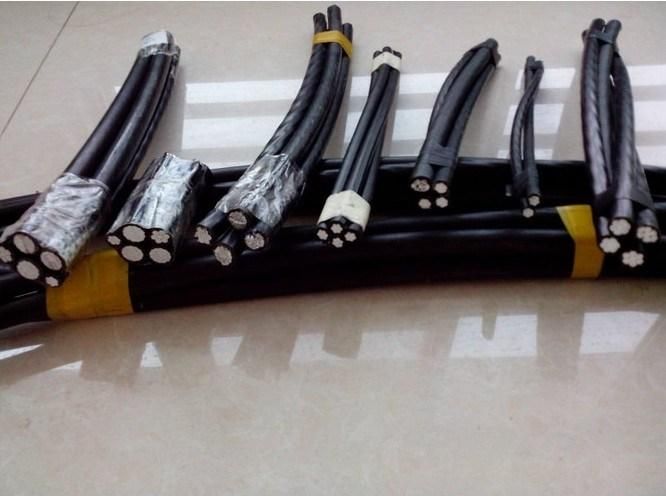

It is preferred to use of service drop (ABC cables) instead of uninsulated conductors
at low voltage networks. service drop (ABC cables)are especially used at areas
where the cost of underground networks is expensive and also
for electrification of rural areas like villages.

Voltage

Rated voltage U0 / U = 0.6 /1 kV
VAC test voltage 5 kV

Technical Data
Maximum operating temperature 90 degree
Maximum short-circuit temperature 250 degree. Service drop( ABC cables) are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages.

To supply 120 volt aerial service for temporary service at construction sites,as a Service Drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting. For service at 600
volts or lower at a maximum conductor temperature of 75ºC for Polyethylene insulated cables or 90ºC for Cross-Linked (XLPE) insulation.
