• Model NO.：YD-ADSS
• Core：Multicore
• Certification：RoHS, UL, CE, ISO9001
• Brand：OEM
• Sheath Material：PVC
• Keywords1：Fiber Optic Cable
• Keywords2：ADSS
• Keywords3：Fiber Cable
• Keywords4：Optical Fiber Cable
• Trademark：YDA
• Origin：Ningbo, China
• HS Code：3901100001
• Production Capacity：4, 500km,Month

Basic Info.

Model NO. YD-ADSS Core Multicore Certification RoHS, UL, CE, ISO9001 Brand OEM Sheath Material PVC Keywords1 Fiber Optic Cable Keywords2 ADSS Keywords3 Fiber Cable Keywords4 Optical Fiber Cable Trademark YDA Origin Ningbo, China HS Code 3901100001 Production Capacity 4, 500km/Month

Product Description

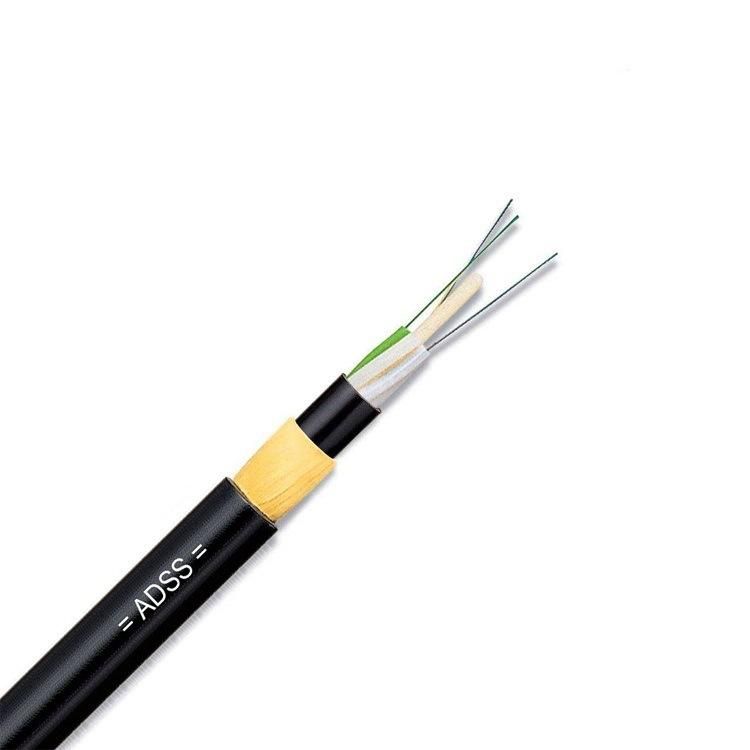

Single mode fiber optic cable ADSS 12 core outdoor Telecommunication Use

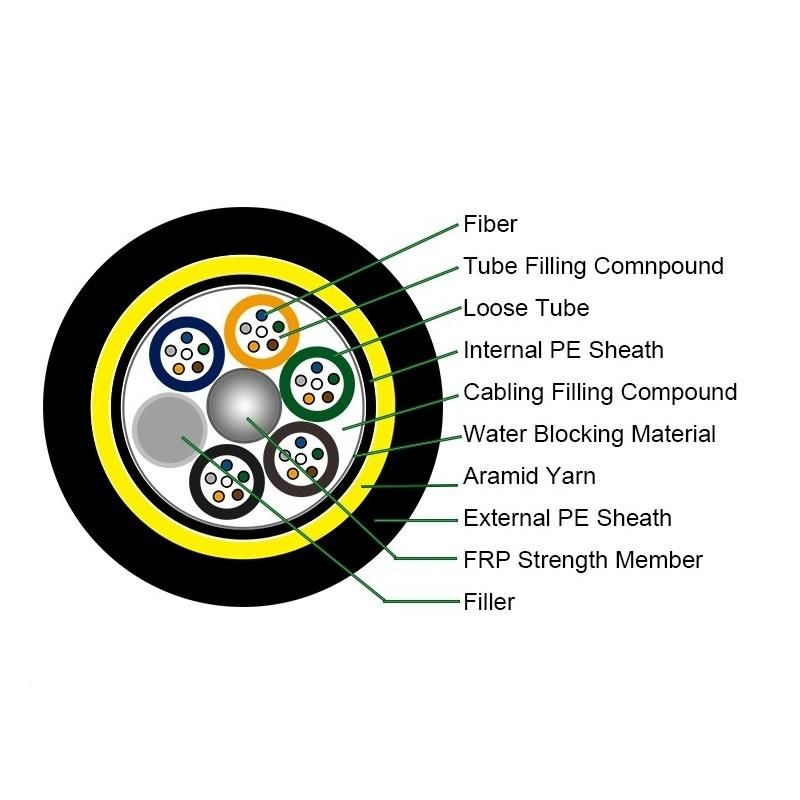

All Dielectric Self-supporting Aerial Cable is loose tube stranded. 200um or 250um fiber , is positioned into a loose tube which made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Products Features:

• Precise optical fiber length control, ensure that the cable in the design load optical fiber does not force.
• Precise control of aramid fiber pay-off tension and twisted pitch, improve the fiber optic cable tensile resistance.
• Reasonable production process makes the outer sheath, aramid fiber, combined closely with the cable conductor, cable structure more compact.
• Use electric mark excellent material, fiber in high induction electric potential under the environment of more security.

Products Application:

• The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines 10kv and 35kv, PE outer sheath is applied
• FOR power lines 110kV and 220KV, AT outer sheath is applied
• The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans

Storage/Operating Temperature : -20ºC to + 60ºC


Technical Parameters

Item	Unite	Parameter
Fiber No.		12
Cable Diameter	mm	12.0±0.2
Cable Weight	Kg/ Km	120±10
Outer Sheath Thickness	mm	1.9±0.1
Inner Sheath Diameter	mm	7.9±0.1
Loose Tube Diameter	mm	2.0±0.1
Fiber No./Tube		6
Loose Tube No.		2
Filler No.		4
FRP Diameter	mm	2.0±0.1

Start with the first switch machine of Huawei in 1994, FIBCONET has gone through nearly 20 years in the fiber optic communication area.

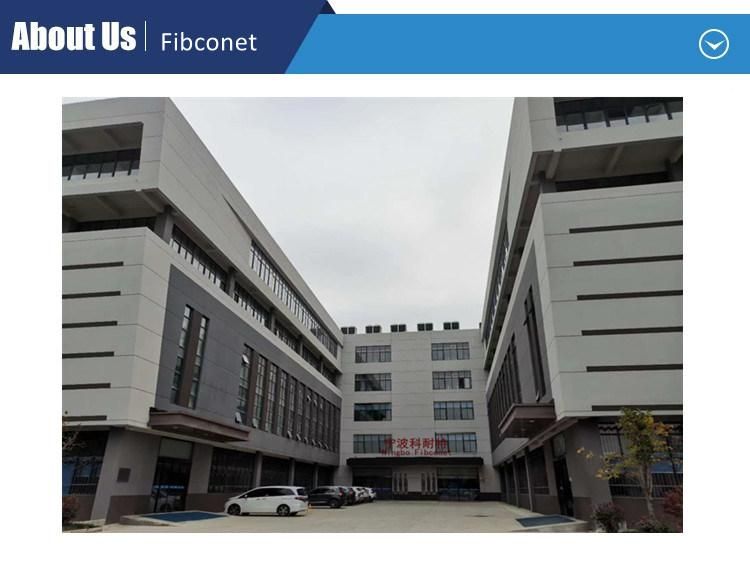

Now FIBCONET not only located in Ningbo, where is the FTTH center, but also has new production center in Jilin, covering area nearly 23000 Sqm, owning 1500 workers, reaching the production capacity of PLC Splitter in 800,000 pcs and fiber optical connectors in7,000,000 pcs per month. As the national high-tech enterprise, FIBCONET's person also striving more efforts on the innovation.50 patents,15 invention patents have been attained.

With the new corporate vision: To be the top one supplier for the fiber optical components, FIBCONET update self and have one new logo, FIBCONET, which will focus much in the international market with high standard.
