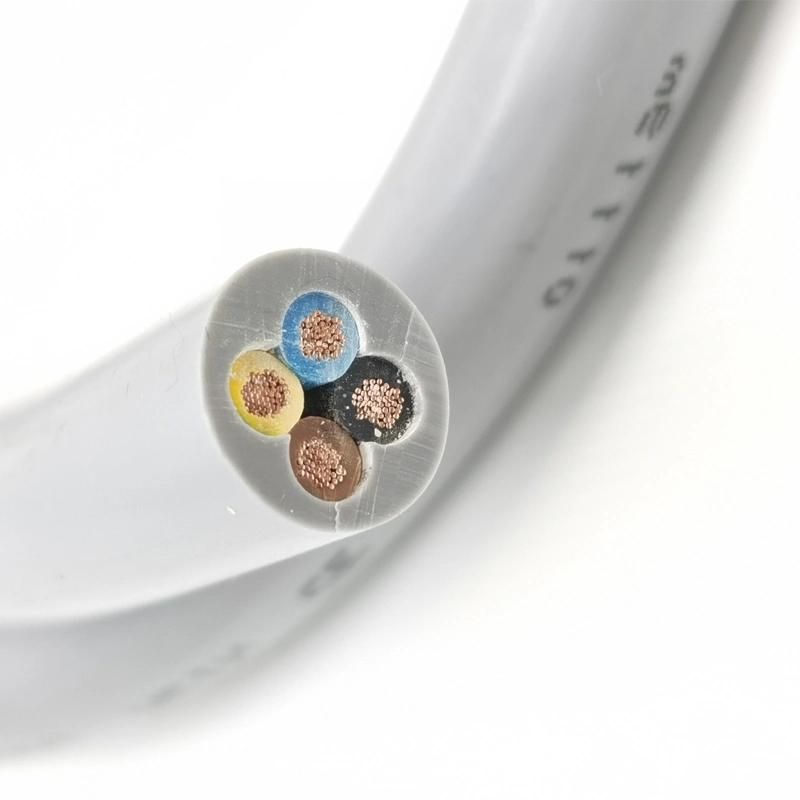

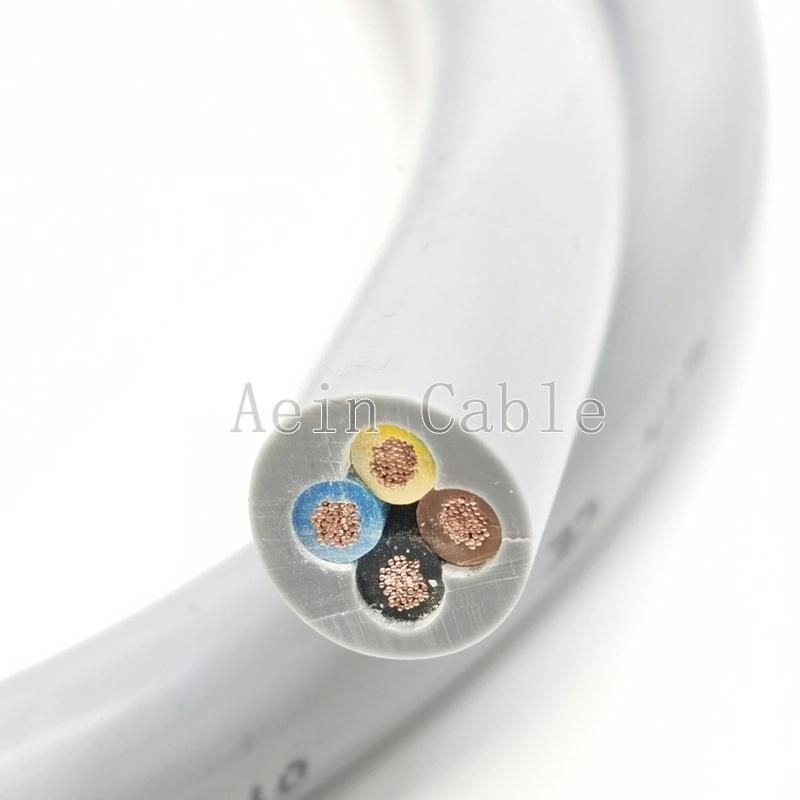

300/500V Halogen-Free Insulated and Sheathed Cable (N) Hmh-O/ (N) Hmh-J

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Electronic Equipment
  • Conductor Material：Copper
  • Sheath Material：Special Halogen-Free Thermoplastic Sheath
  • Insulation Material：Special Halogen-Free Thermoplastic Sheath

Base Info

  • Model NO.：(N)HMH-O,(N)HMH-J Cable
  • Material Shape：Round Wire
  • Range of Application：LSOH
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

Item300/500V Halogen-free insulated and sheathed cable (N)HMH-O/(N)HMH-J ConductorStranded fine bare copper wireInsulationSpecial halogen-free thermoplastic insulationOuter sheathSpecial halogen-free thermoplastic sheathCore NumberMulticores (As client's requirement)Nominal VoltageUo/U 300/500 VTest Voltage2000 VTemperature-25 ºC to+70 ºCMinimum Bending Radius7.5 × cable diamete ColorOptionalApplicationThe cable can be used in fire situations where the characteristics of halogen free, low smoke and low corrosive gases are clearly required.
Suitable for installation in residential, public and industrial buildings and for outdoor use in dry environment. Do not install in vibration and do not be exposed to direct sunlight or lay in water. Calibri
