• Model NO.：AWM5335
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, RoHS
• Brand：Fongming
• Conductor：Copper
• Insulation：Mica Glass Composite
• Braided：Fiberglass
• Coated：Silicone Rubber
• Color：Red, Green, Yellow, Blue
• Rating Voltage：600V
• Size：24AWG-8AWG
• Working Temperature：-60 Oc---+ 450 Oc
• Jacket：Fiberglass Braid with High Temperature
• Transport Package：305m Per Roll, Carton Box Outside
• Specification：ROHS, UL
• Trademark：Fongming
• Origin：P. R China, Yangzhou
• HS Code：8544492100
• Production Capacity：3000km Per Month

Basic Info.

Model NO. AWM5335 Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CE, UL, RoHS Brand Fongming Conductor Copper Insulation Mica Glass Composite Braided Fiberglass Coated Silicone Rubber Color Red, Green, Yellow, Blue Rating Voltage 600V Size 24AWG-8AWG Working Temperature -60 Oc---+ 450 Oc Jacket Fiberglass Braid with High Temperature Transport Package 305m Per Roll, Carton Box Outside Specification ROHS, UL Trademark Fongming Origin P. R China, Yangzhou HS Code 8544492100 Production Capacity 3000km Per Month

Product Description

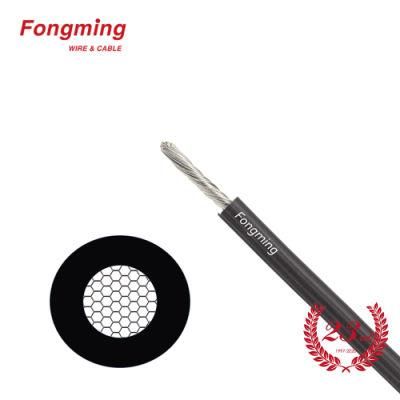

UL5335 Nickel Copper High Quality Mica Glass Serve Insulated Electric Cable

Description
Name: High Temp. Resistance Wire
Model No.: UL5107,UL5128,UL5334,UL5335,UL5359,UL5360,UL5476
Size: 24AWG~4AWG,1/0awg,2/0awg, 3/0awg, 4/0awg

Feature
Ratings: -60ºC~+450ºC, 300V, 600V
Conductor: Nickel Copper, Nickel
Insulation: Mica tape with fiberglass braid
Jacket: Fiberglass braid with high temperature finish

Application
Used for internal wiring of household ovens, appliances, lighting fixtures and electronic equipment as high-temperature lead wire.




Specification

Size AWG	Conductor Structure	Insulation Thickness (mm)	Braid Thickness (mm)	Diameter (mm)
22	7/0.254	≥0.58	≥0.13	2.2±0.2
20	10/0.254			2.4±0.2
18	16/0.254			2.6±0.2
16	26/0.254			3.0±0.2
14	41/0.254			3.4±0.2
12	65/0.254			3.9±0.2
10	103/0.254	≥0.69	≥0.25	4.8±0.2
8	163/0.254			6.2±0.2

Certificates


Transport & Payment



Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.


Company Information



Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producinguniversal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.

We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.

Factory Size (Sq.meters):	45,000-50,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	20
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

 Hot Sale



FAQ

 1. Why the price is so low?

You are ordering directly from the factory.



2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.



3.Can I get some samples?
Yes, we are honored to offer you samples.



4. Can you make the products with my design?

Yes. customization is welcome .
